Piezoresistive Pressure Sensor /Gauge Pressure Transmitter with IP68

Name: Piezoresistive Pressure Sensor /Gauge Pressure Transmitter with IP68
Brand: all-electronics-online.com
SKU: 773812305
Availability: InStock
Rating: 4.4 (44 reviews)

Price:	US $ 42-52/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QP-88B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Signal:	0.5~4.5VDC
Accuracy:	0.5%Fs
Electrical Connection:	Direct Cable
Overload Pressure:	200%
Product Name:	Piezoresistive Pressure Sensor /Gauge Pressure IP6
Display Type:	No

Product Description

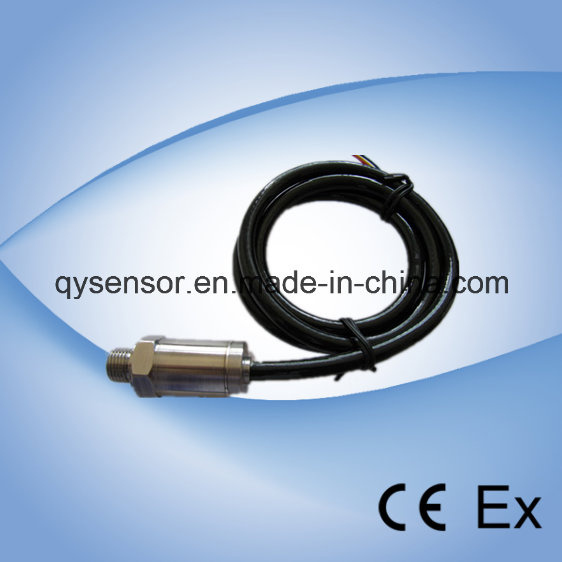

Piezoresistive Pressure Sensor /Gauge Pressure Transmitter with IP68
Model: QP-88B Piezoresistive Pressure Sensor /Gauge Pressure IP6
Range:0~3000 PSI

Feature:
Piezoresistive technology
High accuracy, good stability
Small size, nice appearance
Anti-shock
Various output scheme: 0.5~2.8 Vdc, 0.5~4.5 Vdc, 0.5~5/10 Vdc, and 4~20mA

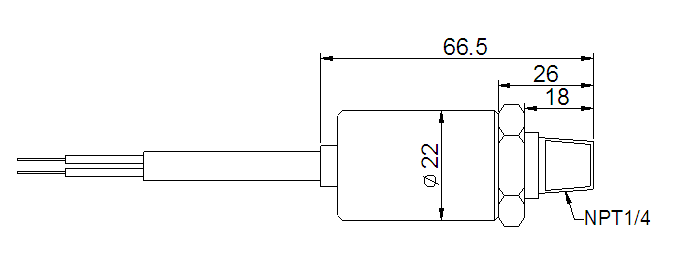

Dimensions: (unit: mm)

Technical Specifications

Measuring media	Non-corrosive and non-conductive gases or dilute liquids
Measuring ranges	PSI	0~3000
Pressure type	NA	Gauge (G)
Excitation voltage	Vdc	3	5 (Standard)		9,,30
Output signal	Vdc	0.5~2.8	0.5~4.5(Standard)		0~5,or 0~10
	mA	4~20mA (12~36Vdc, Standard 24Vdc)
Accuracy	%FS	±0.5(Standard), ±1(Max)
Response time	ms	10 mSec at 63% full Scale
Shock	75G, 1/2 sina wave
Insulation resistance	MΩ	>500 @ 100 Vdc
Operating temp.	ºC	-20~+80
Storage temp.	ºC	-40~+100
Pressure connection	1/8NPT, NPT1/4, 3/8 UNF, M12×1.5(Can be chosen by the customer)
Electrical connection	Direct line
Environment protection	IP rating	IP 66
Material	Housing Material			Stainless steel(1Cr18Ni9Ti)
	Material of diaphragm			316L Stainless steel
Overload pressure	%FS	200

Packaging & Shipping

Standard exporting package: each unit has individual box and packed in paper box. Waterproof protect.
According to the clients requirement

Our Services

We are committed to providing a high quality, and responsive services to all clients
Detailed information, specific and price of products will be provided quickly after receiving your inquiry.
Quality assurance: All products will be make sure the quality in a year, and replace new product with any quality problems. All products will be checked by our quality-control and enclose with testing data.
Packaging: well box packed and provide optimal freight for you reference.
All products OEM available

Company Information
Han Zhong Quan Yuan Electronic Co., LTD. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.
QuanYuan are certified according to ISO 9001:2000 and produce strictly in accordance withR60

Contact details:
Chloe Shu
HanZhong QuanYuan Electronic Co.,Ltd.
TEL: +86-916-2257989

https://cn.linkedin.com/in/qysensor
http://www.qysensor.com

Han Zhong Quan Yuan Electronic Co., Ltd. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.

QuanYuan are certified according to ISO 9001: 2000 and produce strictly in accordance withR60 recommendation of international Organization of Legal Metrology (OIML).

All electronic products are with good performance and high-level quality, which are widely used in electronic weighing apparatus, metallurgy, construction machinery, chemical and other industries. The products are not only sold very well in domestic, but also welcomed in Europe, America, Southeast Asia and other main countries in abroad. QuanYuan win high praise and good reputation from users in domestic and abroad. The production and sales are growing up year by year in successively.

In order to better satisfy the demand of international market, QuanYuan is going to expand production scale and invest in the construction of new production base, with an area of nearly 15, 000 square meters, which is expected to be fully put into production in 2012.

Sincerely welcome the cooperation and guidance from new and old customers in worldwide.
