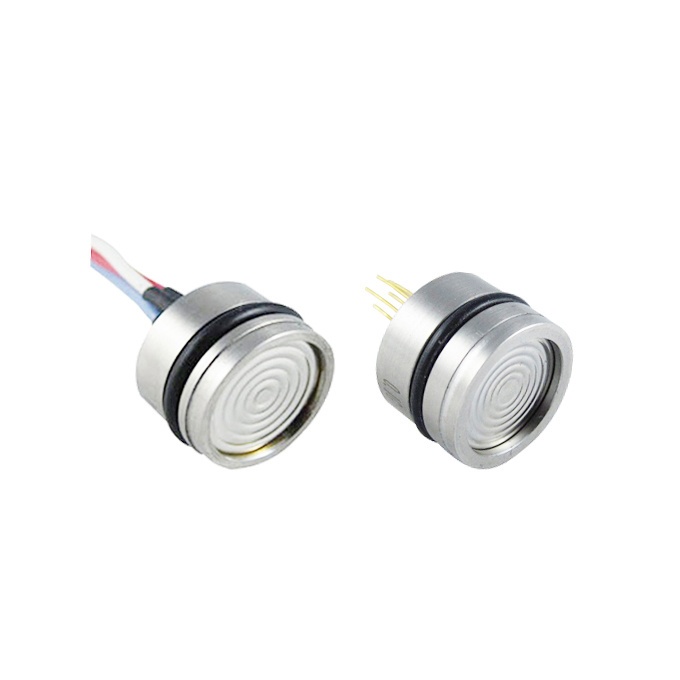

Piezoresistive Silicon Pressure Sensor (PC16)

Piezoresistive Silicon Pressure Sensor (PC16)
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 10/Piece
Pay Type: T/T,Western Union
Prod Model: PC16
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pressure Range: -100kpa...0~0.1MPa...25MPa
Pressure Reference: Gauge, Absolute, Sealed Gauge
Zero Output: ±2mv
Span Output: ≥60mv
Accuracy: ±0.25%F.S.
Excitation: 1.5mA
Compensated Temp.: -10-70ºC
Operating Temp.: -40-125ºC
Oil Filling: Silicon Oil
Housing And Diaphragm: 316L

Product Description


Pressure range

Pressure range-100kPa, 100kPa, 250kPa, 400kPa, 600kPa, 1MPa, 1.6MPa, 2.5MPa, 4MPa, 6MPa, 10MPa, 16MPa, 25MPa (bar and psi unit available)
Pressure referenceGauge pressure | Absolute pressure | Sealed gauge pressure
Overpressure200%F.S.
Output signal

Zero output±2mV
Span output≥60mV
Specification

Accuracy (linearity, repeatability and hysteresis)±0.25%F.S. (Typical)
Excitation1.5mA
Compensated temp.-10ºC-70ºC
Operating temp.-40ºC-125ºC
Storage temp.-40ºC-125ºC
Zero temp. coefficient 0.02%F.S./ ºC (≥600kPa) | 0.03%F.S. / ºC(<600kPa)
Span temp. coefficient0.02%F.S./ ºC (≥600kPa) | 0.03%F.S. / ºC(<600kPa)
Insulation resistance>200Mohm/250VDC
Input impedance2kΩ-5kΩ
Long term stability≤0.2%F.S.S/year
Vibration20g (20-5000Hz)
Oil fillingSilicon oil (Typical)
O-ring NBR, Viton
Housing and diaphragm                                    Stainless steel 316L
Wire connection4 wire (typical) | 5 wire (available)    39×φ0.015, Silicon shielded, 200ºC bearing
Pin connectionKovar pin (0.6um Gold platted)
Weight25g(approx)

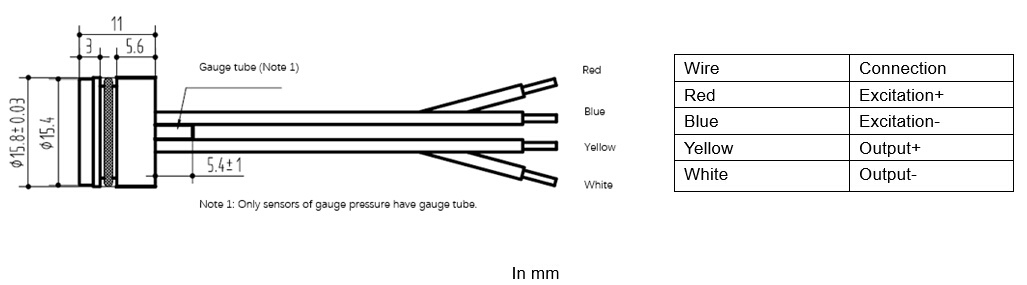

Wire connection

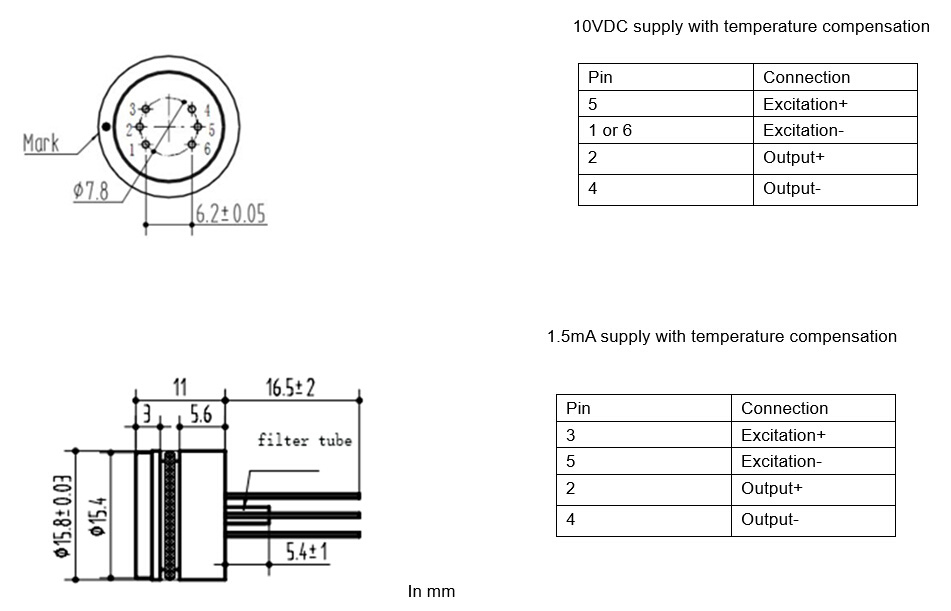

Pin connection




How to order
