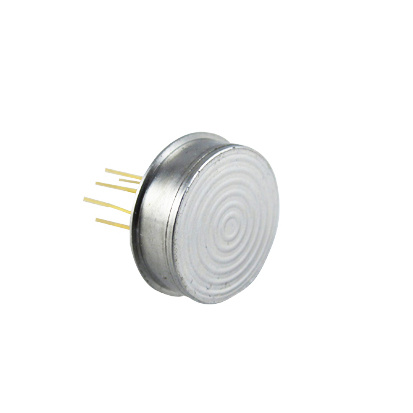

Piezoresistive Silicon Pressure Sensor (PC17)

Piezoresistive Silicon Pressure Sensor (PC17)
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: T/T,Western Union
Prod Model: PC17
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pressure Range: -100kpa...0~10kpa...6MPa
Pressure Reference: Gauge
Output: 100mv(Typical)
Accuracy: ±0.25%F.S. (Typical)
Excitation: 1.5mA (Typical), 5VDC, 10VDC
Temperature Compensation: None
Operating Temp.: -40-125ºC
Oil Filling: Silicon Oil M20
Housing And Diaphragm: 316L

Product Description


Pressure range

Pressure range-100kPa, 10kPa, 35kPa, 70kPa, 100kPa, 250kPa, 400kPa, 600kPa, 1MPa, 1.6MPa, 2.5MPa, 4MPa, 6MPa (bar and psi unit available)
Pressure referenceGauge pressure
Overpressure300%F.S.
Output signal

Output100mV(Typical)
Specification

Accuracy (linearity, repeatability and hysteresis)±0.25%F.S. (Typical)
Excitation1.5mA (Typical) | 5VDC | 10VDC
Compensated temp.Without temperature compensation
Operating temp.-40-125ºC
Storage temp.-40-125ºC
Insulation resistance>200Mohm/250VDC
Bridge resistanceMin.Max.Unit
26005500ohm
Long term stability≤0.2%F.S.S/year
Vibration20g (20-5000HZ)
Oil fillingSilicon oil (Typical) | M20 available for sanitary application
O-ring NBR, Viton
Housing and diaphragm                                    Stainless steel 316L
Pin connectionKovar pin (0.6um Gold platted)
Weight11g(approx)
Nanjing Wotian Technology Co., Ltd. Was established in 2005, specializing in the production of pressure sensors. It is the leading domestic manufacturer of pressure sensors, with existing staff 260. The annual production of pressure sensors is more than 100 million. The products have been exported to more than 60 countries and regions. Wotian has established companies in Germany, United States and South Korea. The company has factories in Nanjing and Anshan, and is headquartered in the scenic Jiulong Lake International Headquarters Base in Nanjing. The foreign trade team is located in Shenyang, the center of Northeast Heavy Industry Base.

"Create value for customers" is always the goal pursued by the company. As a well-known brand in domestic pressure sensor industry, Wotian has always been taking rejuvenating China's pressure sensor business as its mission, working diligently and step by step, striving to produce superlative pressure sensors and provide customers with the ultimate cost-effective pressure sensors.

The idea of "continuous improvement" has been deeply rooted among Wotian people who take "lean thinking" as the fundamental theory of production management. Wotian people believe in dream, integrity, honesty and goodness. Wotian has always been "responsible for trust", behaving as a conscientious enterprise contributing to social progress and people's well-being.
