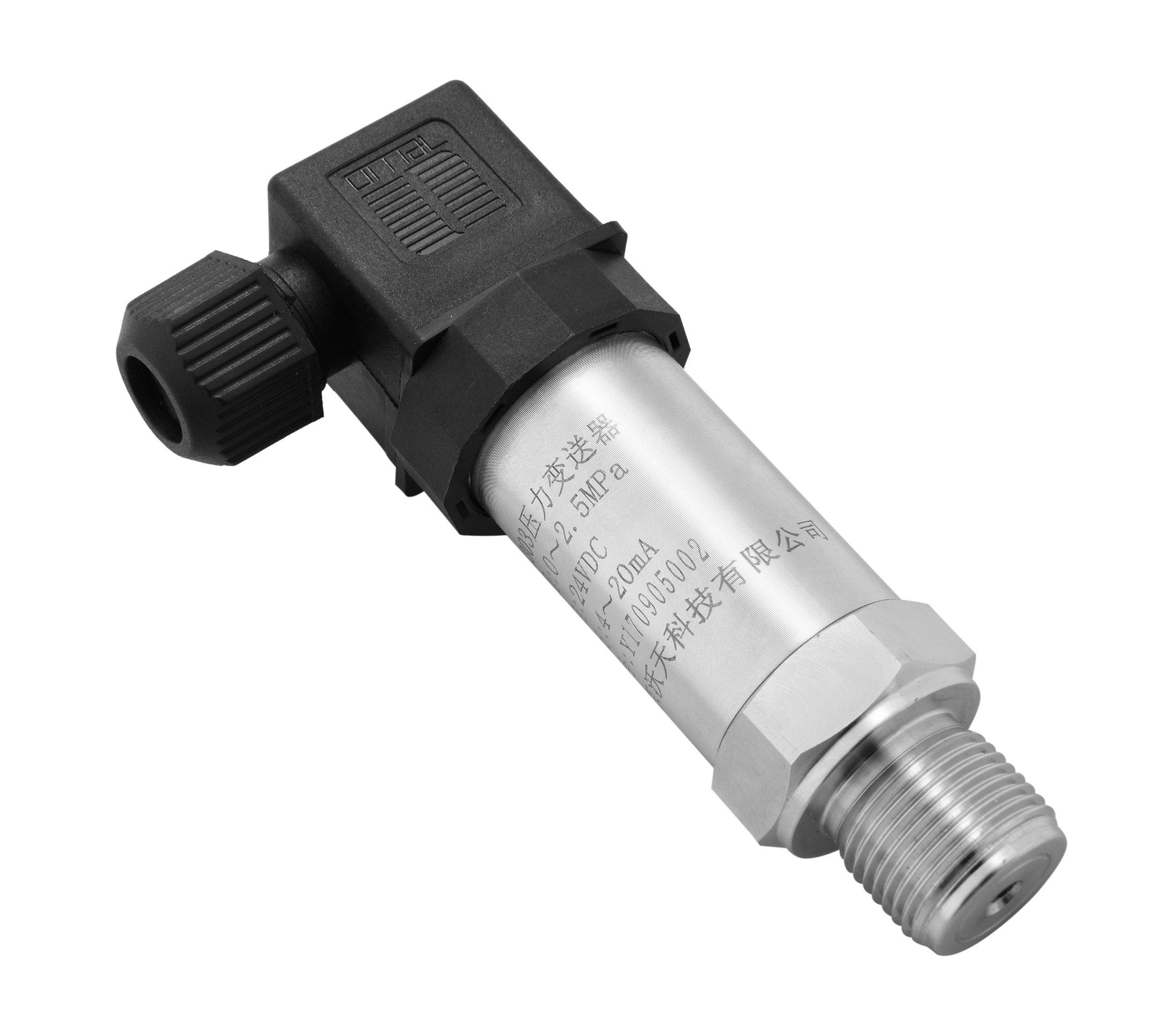

Piezoresistive Silicon Pressure Transmitter (PCM303)

Piezoresistive Silicon Pressure Transmitter (PCM303)
Price: Negotiable/Piece
Min Order: 5/Piece
Pay Type: T/T,Western Union
Prod Model: PCM303
Pressure Reference: Gauge, Absolute, Sealed Gauge
Output: 4 to 20mA, 1 to 5V, 0 to 5V
Supply: 24VDC
Compensated Temp.: -10ºC - 70ºC, -20ºC - 85ºC
Operating Temp.: -20ºC - 85ºC
Housing Material: 304
Sensor Material: 316L
Accuracy Grade: ±0.5%F.S., ±1%F.S.
Pressure Range: 0~10kpa...60MPa

Product Description

Piezoresistive silicon chip employed
Perfect long term stability
MEMS Technology
CE certificate


Pressure range

Pressure range10kPa, 35kPa, 70kPa, 100kPa, 250kPa, 400kPa, 600kPa, 1MPa, 1.6MPa, 2.5MPa, 4MPa, 6MPa, 10MPa, 16MPa, 25MPa, 40MPa, 60MPa
Pressure referenceGauge pressure | Absolute pressure | Sealed gauge pressure
Overpressure300%F.S.(70kPa) | 200%F.S.(<25MPa) | 150%F.S.(25MPa)
Output signal

Output4 to 20mA | 1 to 5V | 0 to 5V
Specification

Accuracy (linearity, repeatability and hysteresis)±0.5%F.S. | ±1%F.S.
Supply24VDC
Compensated temp.-10ºC - 70ºC | -20ºC - 85ºC
Operating temp.-20ºC - 85ºC
Storage temp.-40ºC - 125ºC
Zero temp. coefficient ±1.5%F.S.max. (-20ºC - 85ºC)
Span temp. coefficient±1.5%F.S.max. (-20ºC - 85ºC)
Pressure connectionSee "how to order"
ProtectionIP65
Housing materialStainless steel 304 (316L for the sensor inside)
Long-term Stability0.2%F.S./year
Weight180g (approx.)

Electrical connection (DIN 43650)

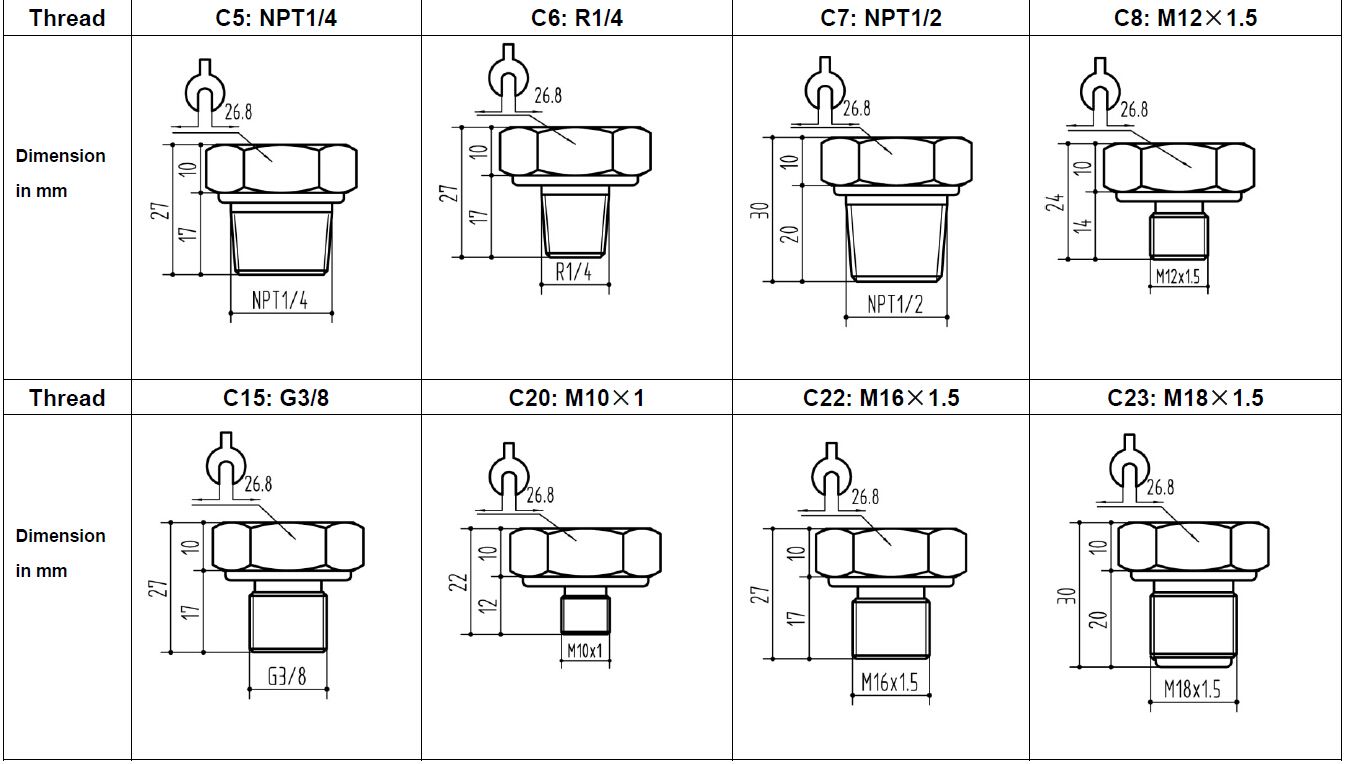

Pressure port





How to order
