Pin Composite Insulator

Name: Pin Composite Insulator
Brand: all-electronics-online.com
SKU: 825617965
Availability: InStock
Rating: 4.7 (149 reviews)

Price:	Negotiable/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	hv
Application:	High-voltage
Material:	Composite Polymer
Structure:	Pin Insulator
Type:	B Type Insulator
Color:	Grey
Brand:	Haivol

Product Description

Specifications

Pin composite insulator
1.Certificates:ISO9001:2008
2.Reasonable price
3.Rich experien in export

1.Certificates:ISO9001:2008
2.Reasonable price
3.Rich experien in export

Long Rod Suspension Composite Insulator
1.Rated voltage:24KV
2.Certificates:ISO9001:2008
3.Hop dip galvanized steel for metal

Long Rod Suspension Composite Insulator Model FXYW4-24/70
Application For rated voltage up to 550 kV power transmission lines supporting, suspending and insulation.
Ratings: Up to 500kV.
Standards: IEC 61109

Composite Insulator for AC Power Distribution System

Features:
Secure and reliable operation on high mechanical strength.
Compact design and light in weight which is convenient for transportation. Good anti-vibration capability. Good anti-moisture capability.
Good electric performances
Strong anti-pollution falshover ability.
High anti-aging performances which is perfect for utilization under conditions of high altitude.
Easy for maintenance.

Product range:
Long rod polymer insulator up to 500kV.
Polymer pin insulator up to 36kV.
Polymer post insulator up to 252kV.
Line post insulator up to 36kV.

Technical Specification:

Type	Rated voltage(kV)	Specified mechanical load(kN)	Section length(mm)	Min Arc distance(mm)	Leakage distance(mm)	Lightning impulse withstand BIL(kV)	Power frequency withstand (wet) (kV)
FXYW4-12/70	12	70	350	180	400	95	45
FXYW4-24/70	24	70	550	370	850	185	95
FXYW4-24/100	24	100	570	370	850	185	95
FXYW4-35/70	36	70	650	450	1000	230	105
FXYW4-35/100	36	100	670	450	1000	230	105

Haivo Electrical Co., Ltd, is a provider of power equipment and services for the global electric utility industry. It mainly manufacture power transmission & distribution equipments, covering many product series as Fuse cutout, Surge arrester, Composite & Porcelain insulator, Disconnector switch & Load Break Switch, Hardware fitting for overhead line, Cable accessories and Cable kits (cold & heat shrinkable cable accessories).

HAIVO ELECTRICAL, As one of the international electrical companies in China, We not only manufacture the power equipment, but also provide sustainable power solutions underpinned by technology innovation. To date, HAIVO conducts business in nearly 50 countries and territories in South America, Europe, Latin America, Asia, Africa, and the Middle East. HAIVO′ S high standards have received due recognition from the local power customers.

HAIVO′ S worldwide operation and sales coverage is backed by exceptional experience and expertise to provide customers with the most reliable and highest quality products and services available.

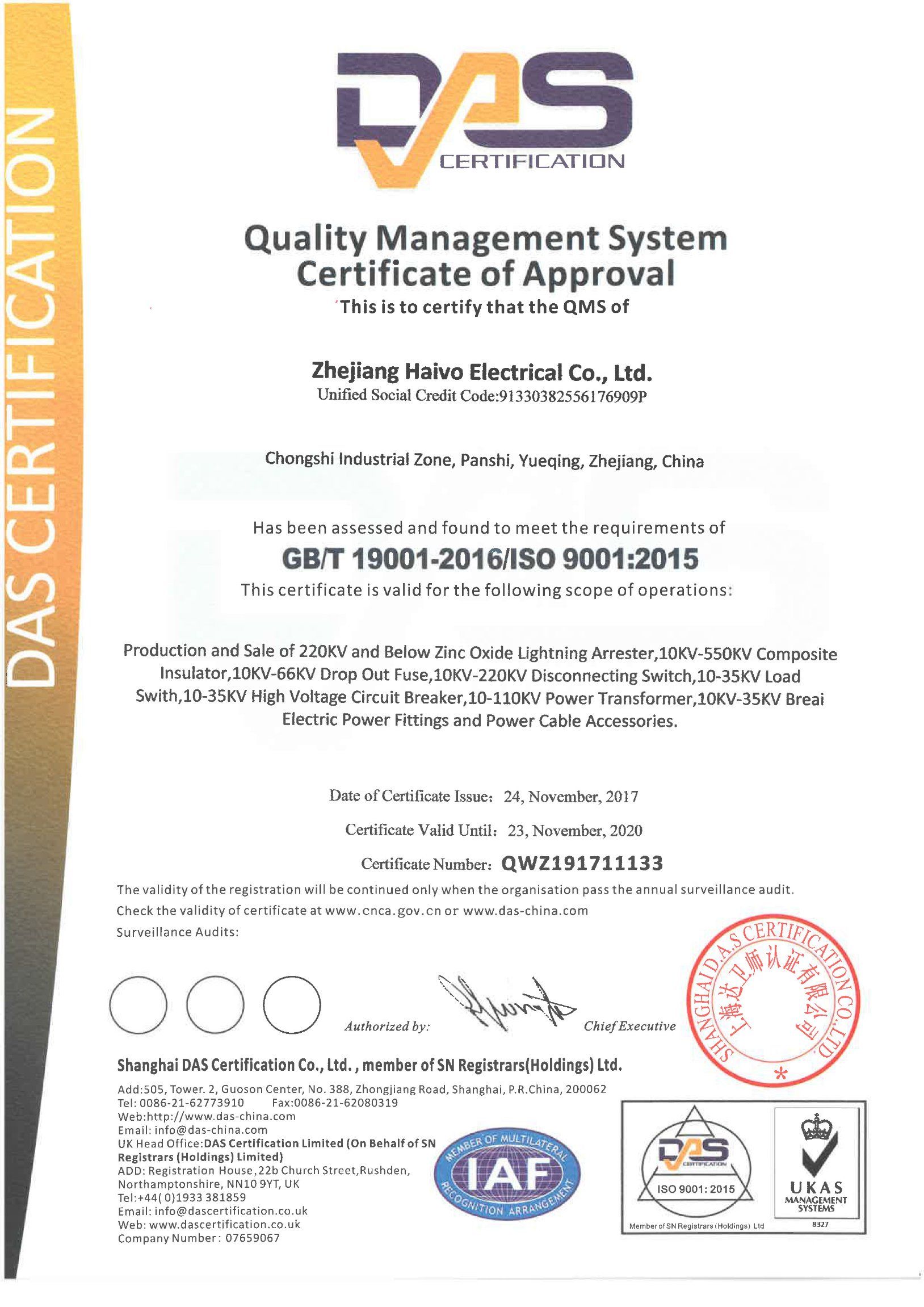

For the quality control system, HAIVO was successively awarded ISO 9001: 2008 by DAS CERTIFICATION Ltd & UKAS QUALITY MANAGEMENT, and TYPE TEST REPORT by China NATIONAL HIGH VOLTAGE APPARATUS QUALITY SUPERVISION TESTING CENTER(XIHARI) & QUALITY INSPECITION AND TEST CENTER FOR EQUIPMENT OF ELECTRIC POWER.

We promise we will offer first-class quality, reasonable price, first-class service and following the business philosophy of development and innovation to serve global power customers!
