Pin Plunger Micro Switch (LXV-10-1C25)

Name: Pin Plunger Micro Switch (LXV-10-1C25)
Brand: all-electronics-online.com
SKU: 695405355
Availability: InStock
Rating: 4.7 (69 reviews)

Price:	US $ 0.32-0.63/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LXV-105-1C25
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Carton Size:	445X310X510mm
Kg/CTN:	16.31kg
Version:	with Bumper
Operating Speed:	0.01mm~1m/S
Operating Frequency:	Mechanical:120 Operations/Minute
Coventional Thermal Current:	10A
Electrical Specification:	AC220V/1A DC220V/0.1A
Vibration Resistance:	Malfunction:10-55Hz, 1.5mm Double Amplitude
Shock Resistance:	Destruction:500m/S2
Ambient Temperature:	Minus 10 to 80 Centigrades
Pressing Type:	Short Arm
Size:	Small-Sized
Environment:	﹤250℃
Breaking Capacity:	General Type
Brand:	Clin

Product Description

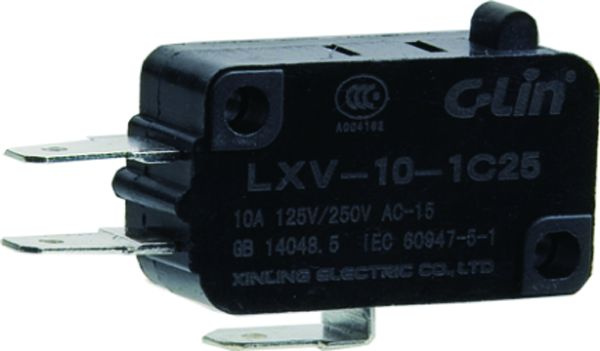

Micro Switch(LXV-10-1C25)

General Introduction
LXV series microswitch is widely used in household electric appliances(e.g. Microwave oven, electric cooker, washing machine, audio equipment, warmer, drinking fountain, humidifier, disinfection cabinet etc.), commercial electric appliances(e.g. Vending machine, game machine, electronic toys, electric power tool, copier, shredder etc.), machinery(e.g. Transport machinery, printing machinery, textile machinery etc.) and others(e.g. The drive mechanism of the electric door, the release mechanism of some equipment etc.).
Approved standards: GB 14048.5, IEC 60947-5-1.

Technical Specification

Operating Speed	0.01mm~1m/s
Operating Frequency	Mechanical:120 operations/min;Electrical:30 operations/min
Contact Resistance	15mΩ max (initial value)
Insulation Resistance	100mΩ min(below 500VDC)
Conventional Thermal Current	10A
Electrical Prameter	AC220V/1A DC220V/0.1A
Dielectric Strength	1890V, 50/60Hz for 1min between terminals of the same polarity
	2500V, 50/60Hz for 1 min between terminal and non-current carrying metal parts
	2500V, 50/60Hz for 1 min between terminal and ground
Vibration	malfunction:10Hz~55Hz, 1.5mm double amplitude
Shock	mechanical resistance:500m/s2; malfunction:200m/s2
Ambient Environment	Temperature:minus10centigrade~80 centigrade(no ice); Humidity:<90%RH
Working Life	Mechanical:1106 Min.; Electrical:1104

Xinling Electrical Co., Ltd. China was established in 1990. Now we have 10 sub-branch companies, each company is responsible for manufacturing different kinds of electrical products, We have more than 100 cooperation units, and 100 direct distributors, 1000, 000 square meter factory area and 1600 stuffs.

Our company mainly produces mini relay, time relay, solid state relay, electric power relay, temperature controller, kilowatt-hour meter, circuit breaker, AC contactor and some other electrical component which are the first choice of electric net reconstruction. With perfect management system and technical advancement, it strengthens the management of enterprise and promotes product quality. Our company takes prospering national industry as its own responsibilities, works hard developing economy of China to promote enterprise level.

The enterprise has gained ISO9001 and RVA Quality System Attestation(Netherlands), and its products have gained CE attestation (European Community), and UL Attestation and CCC Safety Attestation in China successively, and have been insured by PICC, besides, their quality has been ensured by quality "three guarantee". As a result, its products are sold well in more than 30 provinces and cities of China and are exported to Europe, America, Middle East, South-Eastern Asia, Africa and so on 20 countries and districts. Successively, the enterprise has been given the titles of Star Enterprise of China, Financial AAA Grade Enterprise, Gold Client of Agriculture Bank of China, and Credit Enterprise of Product Quality.

Xinling is ready for creating a magnificent tomorrow together with you!
