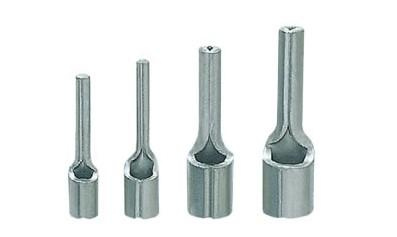

Pin-Shaped Naked Copper Terminal

Prod Model:	PTN 2-18
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Red, Blue, Black, Yellow
Size:	Various Size Available
Application:	Conduct Electricity
Type:	Socket Terminals
Material:	Copper
Brand:	Jma

Product Description

1) Application: Widely used in machinery, spinning, electric power, ailway, shipbuilding, spaceflight & avition, light industry, household electrical, computers, auto-equipment and etc.

2) Processing: Cold press

3) Material: T2 copper with tinned surface, cridible conductivity

Detail:
Specification: According to the customer picture, item NO. Or picture
Certification: ISO9001, CE, SGS
Delivery: The stock goods will be delivered within 3days, and the customized goods will be delivered within 7days
Sample: Free
MOQ: Most product not have MOQ, orders for just one piece are welcome
Terms of trade: EXW, FOB, CIF, CFRect
Payment Terms: T/T in advance, Western Union, L/C etc.
Serivce: ODM/OEM
Other service: CO, Form F

Wenzhou ziyong electrical Co., Ltd is a comprehensive and production processing trading enterprise in Zhejiang Province which is approved by the Forgeign Trade Department in China, and has own import and export power. We are engaged in cable and cable accessories, Like insulation piercing connector, cable connectors and fittings, like insulators and cable lugs and other connectors, explosion-proof products, fuse products, transformers, auto parts to cars, electricity and electronic products, plastics, machinery and decorated products.

Why choose us?

1. We have our team for work, own mould workshop.

2. The production can be made accurate by your design and demand.

3. Keep on line every day.

4. Perface package according to your demand.

Cable size0.51.5mm 2 A.W.G.2216)    Max currentImax=19A    Materialpurple copper   Thickness0.75mm

Item No Dimension(mm) F L E Dφ dφ PTN 1.25-9 1.9 13.8 4.8 3.4 1.7 PTN 1.25-10 1.9 14.8 PTN 1.25-12 1.9 16.8 PTN 1.25-13 1.9 17.8 PTN 1.25-18 1.9 22.8

Cable size1.52.5mm 2 A.W.G.1614)    Max currentImax=27A    Materialpurple copper   Thickness0.8mm

Item No Dimension(mm) F L E Dφ dφ PTN 2-9 1.9 13.8 4.8 4.1 2.3 PTN 2-10 1.9 14.8 PTN 2-12 1.9 16.8 PTN 2-13 1.9 17.8 PTN 2-18 1.9 22.8

Cable size2.54mm 2 A.W.G.1412)    Max currentImax=37A    Materialpurple copper   Thickness1.0mm

Item No Dimension(mm) F L E Dφ dφ PTN 3.5-10 2.8 14.8 6.0 5.0 3.0 PTN 3.5-13 2.8 19.8

Cable size46mm 2 A.W.G.1210)    Max currentImax=48A    Materialpurple copper   Thickness1.0mm

Item No Dimension(mm) F L E Dφ dφ PTN 5.5-13 2.8 19.8 6.0 5.6 3.4
