| Prod Model: |
BK-G20/G30/G50/G100 |
| Name: |
Pipe Muffs Semi-Conductor Laser Marking Machine |
| Laser Source: |
Max, Raycus, Ipg, |
| Life Time: |
100000hours |
| Wavelength: |
1064nm |
| Frequency Range: |
20-80kHz |
| Engraving Line Speed: |
7000mm/S |
| Minimum Width: |
0.03 mm (Depends on The Material) |
| Engrave Range: |
Standard 110*110 mm (Optional) |
| Repeat Accuracy: |
0.003 mm |
| Power Supply: |
90-260V/50Hz-60Hz |
Product Description

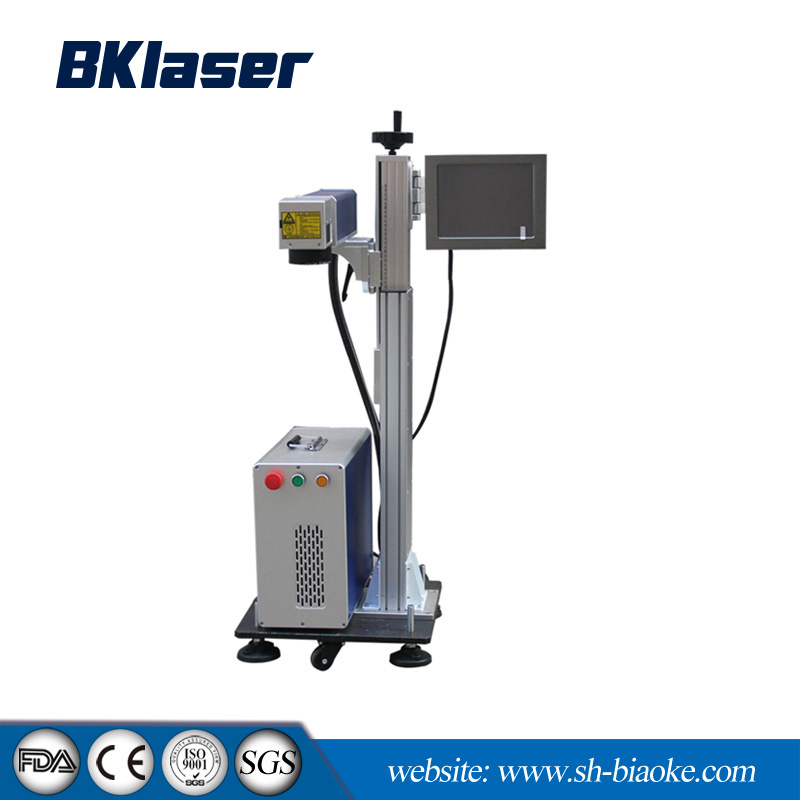

Title:Pipe Muffs semi-conductor laser marking machine
What's the parameter?| Model | BK-G10L | BK-G20L | BK-G30L | BK-G50L | BK-G100L |
| Power | 10W | 20W | 30W | 50W | 100W |
| Item | Pipe Muffs semi-conductor laser marking machine |
| Laser wavelength | 1064nm |
| Frequency | 20-800KHZ |
| Beam quality | <2 | <3 | <5 |
| Engraving speed | ≤7000mm/s |
| Minimum line width | 0.01mm |
| Minimum character | 0.15mm |
| Repeat accuracy | ±0.002 |
| Power supply | 90-260V/50Hz-60Hz |
| Power consumption | 500W | 1000W |
| Carving depth | ≤0.3mm | ≤0.5mm | ≤1.0mm |
| Operating system | Touch screen control system |
| Cooling method | Built-in air-cooled |
| Control interface | Standard USB |
| Marking range | 110*110mm(standard) 175*175mm,200*200mm,300*300mm(optional) |
| File format | All font in the operating system and simple graphic logo |

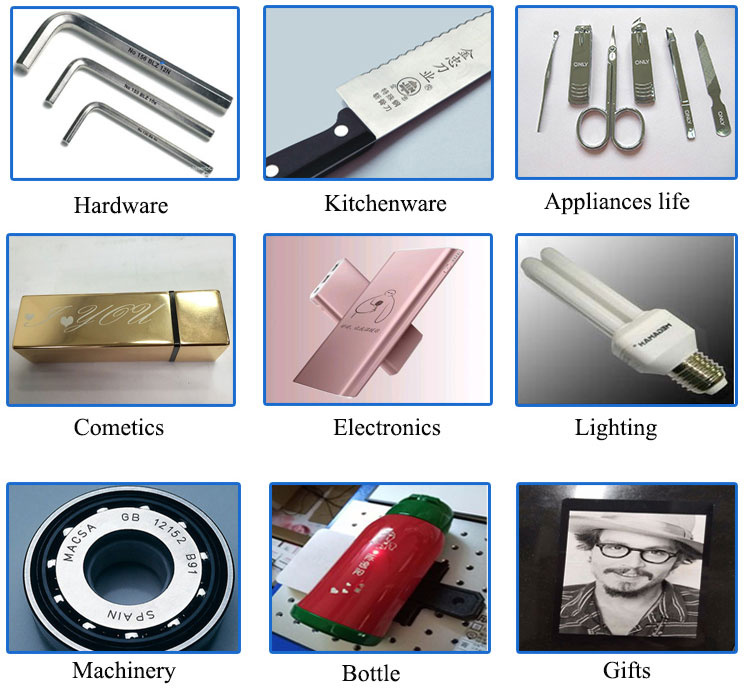

Which industries can be applied to?
Pipe Muffs semi-conductor laser marking machine / fiber laser marker machine| 1. Sheet metal fabrication | 6. Elecrical cabinet | 11. Elevator |
| 2. Automotive parts | 7. Aviation&Aerospace | 12. Lighting lamps |
| 3. Metal carfts & decoration | 8. Hardware | 13. Advertising |
| 4. Furniture | 9. Kitchenware equipment | 14. Fitness equipment |
| 5. Medical equipment | 10. Agriculturalmachinery | 15. watches & glassware |
What kind of material can be marked?Pipe Muffs semi-conductor laser marking machine / fiber laser marker machine| Material | CO2 Laser machine | Material | fiber laser machine |
| Wood | √ | Aluminum | √ |
| Acryic | √ | Stainless Steel | √ |
| Fabric | √ | ABS | √ |
| Glass | √ | Brass | √ |
| Coated Metals | √ | Carbon Fiber | √ |
| Ceramic | √ | Carbon Nanotube | √ |
| Delrin | √ | Cobait Chorme Steel | √ |
| Cloth | √ | Copper | √ |
| Leather | √ | Colored Delrin | √ |
| Marble | √ | Diallyl Phthalate | √ |
| Matte Board | √ | Gless Filled PPEK | √ |
| Melamine | √ | Gless Filled Telfon | √ |
| Paper | √ | Magnesium | √ |
| Mylar | √ | Metal Plated Ceramics | √ |
| Press Board | √ | Molybdenum | √ |
| Rubber | √ | Mild Steel | √ |
| Wood veneer | √ | Nylon | √ |
| Fiber Glass | √ | Polybutylene Terephthalate | √ |
| Paintde Metals | √ | Polysulphone | √ |
| Title | √ | PET | √ |
| Plastic | √ | Santoprene | √ |
| Cork | √ | Silicon Carbide | √ |
| Corian | √ | Silicon Steel | √ |
| Anodized Aluminum | √ | Silicon Wafers | √ |
Profile:
BiaoKe Laser Technology (Hangzhou) Co., Ltd, is a hi-tech enterprise which manufactures laser machines and focuses on Research & Development plus selling of industrial laser products.
We obstain CE/FDA/ISO/SGS Cerfications about our products.
It belong three companies:
No1: Shanghai Biaoke Photoelectronics Technology Co., Ltd (product Factory)
No2:Biaoke Laser Technology (Hangzhou) Co., Ltd (Product Factory)
No3:Hangzhou Nuoen Precision Instrument Co., Ltd (Trade Company)
Main Business:
Fiber laser marking machine, Co2 Laser marking machine, 3D Laser marking machine
Fiber laser marking machine, Co2 Laser cutting machine, Co2 Laser engraving machine
Fiber Laser engraving machine and a series of testing machine.
Location: No8, Ning'an Road, XIaoshan Economic Development Zone Hangzhou City, Zhengjiang, China. What is your after - sales service ? 1. Warranty
Two years warranty for whole machine.
2. Technical support
Lifelong technical support online or by email and 18 hours online service to help you use our machine well.
3. Oversea service
Offer oversea service for training,installing, operating if necessary (Buyer need offer food & accommodation, round tickets and engineer charges USD200/day)
4. Tranining serviceOffer training at our factory for free (you could visit us and learn)
RFQQ: What's the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don't worry, you will receive the parcel in good condition.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
