| Prod Model: |
KA-S35 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Kaiau |
| Model Number: |
Ka-S35 |
| Bulk Order Delivery Time: |
Within 25 Days |
| Warranty: |
Two Years |
| Certificate: |
Ce and RoHS |
| Samples Delivery Time: |
Within 2 Days |
| Principle: |
Infrared |
| Wires: |
NPN (',Three-Wires) |
| Standard: |
Standard |
| Certification: |
CE |
| Application: |
Corridor, Warehouse, Garage, Toilets etc. |
Product Description
KA-S35 light sensor switch specifications:1) Power source: 220V/AC-240V/AC, 100V/AC-130V/AC
2) Power frequency: 50/60Hz
3) Rated load: 1200W(220-240V/AC), 800W(100-130V/AC)
4) Detection range: 360 degree
5) Light control: <3LUX-daylight(adjustable)
6) Time delay: 8sec to 7min(adjustable)
7) Detection distance: 1-8m(adjustable)
8) Installation height: 2-4m
9) Detection speed: 0.6-1.5m/s
Package:1) White box or customized color box
2) Carton size: 50*38.5*36 cm
3) Gross weight: 15KGS
4) Quantity/carton: 50PCS
Product introduction:KA-S35 is a new saving-energy switch, it adopts good sensitivity detector, integrated circuit and SMT. It gathers automatism, convenient safe, saving-energy and practical functions. One detector inside compose a wide range detection field, it utilizes the infrared energy from human as control-signal source, it can start the load at once when one enters detection field. It can identify day and night automatically. It is easy to install and used widely, possessing the functions of power show and detecting show.
KA-S35 function:1) Identify day and night automatically. Can adjust light-control according to your desire: When turn to SUN (max), it will work in the daytime and at night. When turn to MOON (min), it will only work under less than 3LUX circumstance. As for Adjustment, please refer to testing way.
2) Detection range can be set according to installation position and detection field.
3) The detection show: The LED will flash two times per second when receiving the signal.
4) Time setting is added continually: When it receives the second induction signal after the first inductor, it will
Compute time once more on the rest of the first time setting basic. (Set time)
5) Time setting adjustment: It can be set according to your desire. The minimum is 8± 3 sec; The maximum is 7± 2min.

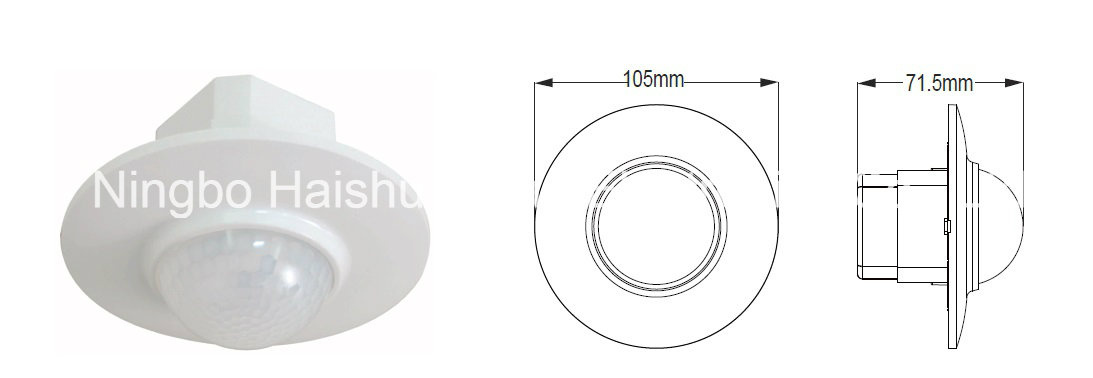

KA-S35 Dimension:

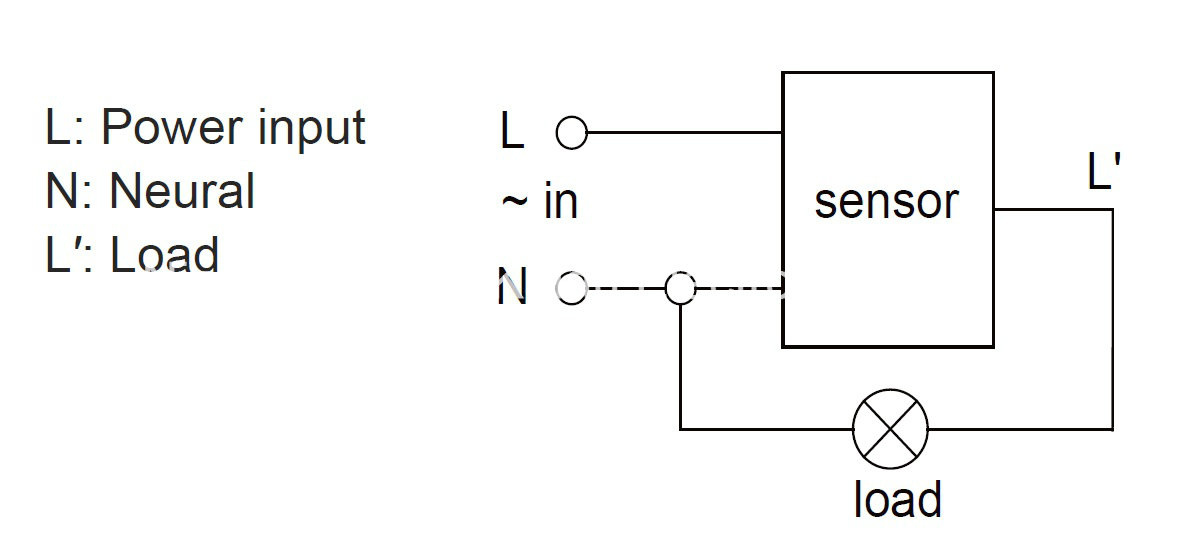

KA-S35 Wiring Diagram:

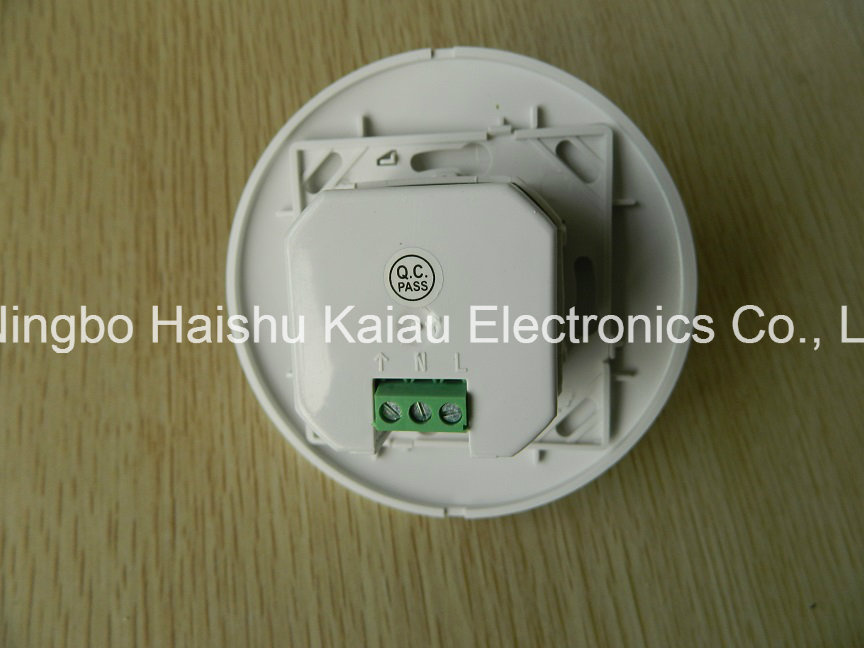

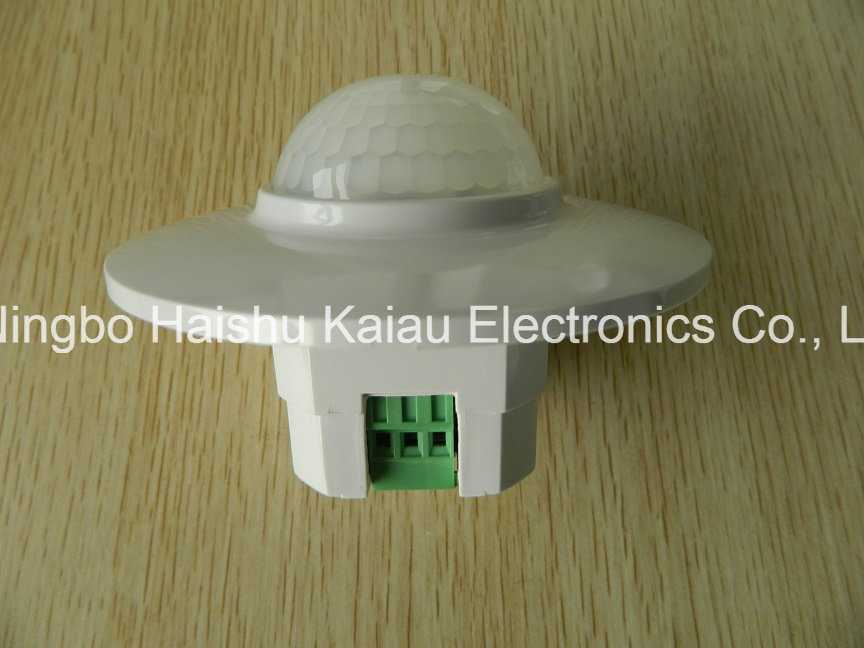

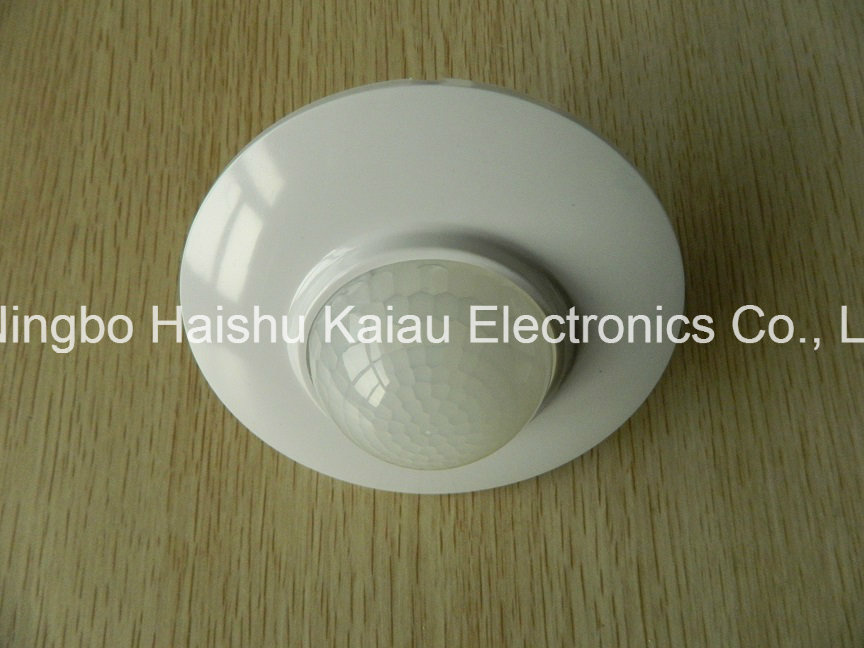

KA-S35 Actual Photos:
