Prod Model: |
KA-S41 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Warranty: |
Two Years |
Samples Delivery Time: |
Within 2 Days |
Bulk Order Delivery Time: |
Within 25 Days |
Brand: |
Kaiau |
Usage: |
Light Sensor |
Theory: |
Infrared Sensor Switch |
Type: |
Infrared Sensor Switch |
Principle: |
Infrared |
Wires: |
NPN (',Three-Wires) |
Standard: |
Standard |
Certification: |
CE |
Application: |
Corridor, Warehouse, Garage, Toilets etc. |
Product Description
KA-S41 PIR sensor fitting for flood light specifications:1) Power Source: 100-130V/AC; 220-240V/AC
2) Power Frequency: 50/60Hz
3) Rated Load: 800W (100-130V/AC); 1200W(220-240V/AC)
4) Detection Range: 180 degree
5) Detection Distance: 5-12m(adjustable)
6) Time Delay: 10sec to 7min(adjustable)
7) Light Control: 3-2000LUX(adjustable)
8) Detection Motion Speed: 0.6-1.5m/s
9) Color: white and black color available
10) Waterproof grade: IP44
KA-S41 funtion:1) Can identify day and night: The consumer can adjust work ambient light. It can work in the daytime and at night when it is adjusted on the "sun" position (max). It can work in the ambient light less than 3LUX when it is adjusted on the "moon" position (min). As for the adjustment pattern, please refer to the testing pattern.
2) SENS adjustable: It can be adjusted according to using location; Low sensitivity with 5m for detection distance; High sensitivity with 12m, it fits for large room.
3) Time-delay is added continually: When it receives the second induction signals after the first induction, it will compute time once more on the rest of the first time-delay basic (set time).
4) Time-delay adjustment: It can be set according to the consumer's desire. The minimum time is 10sec± 3sec. The maximum is 7min± 2min.
KA-S41 introduction:This product is a new energy-saving lighting switch, it adopts high sensitivity detector, MCU control, controllable Silicon and SMT; It gathers automatic, convenient, safety and practical functions; The wide detection range is made up of the up and down, left and right service field; It utilizes the infrared energy from Human Body as the control-signal source, When one enters the detection field, it will start the controlled load; It can identify day and night automatically; Its installation is convenient and its range is wide; It has the functions of the power indication and the detection indication.

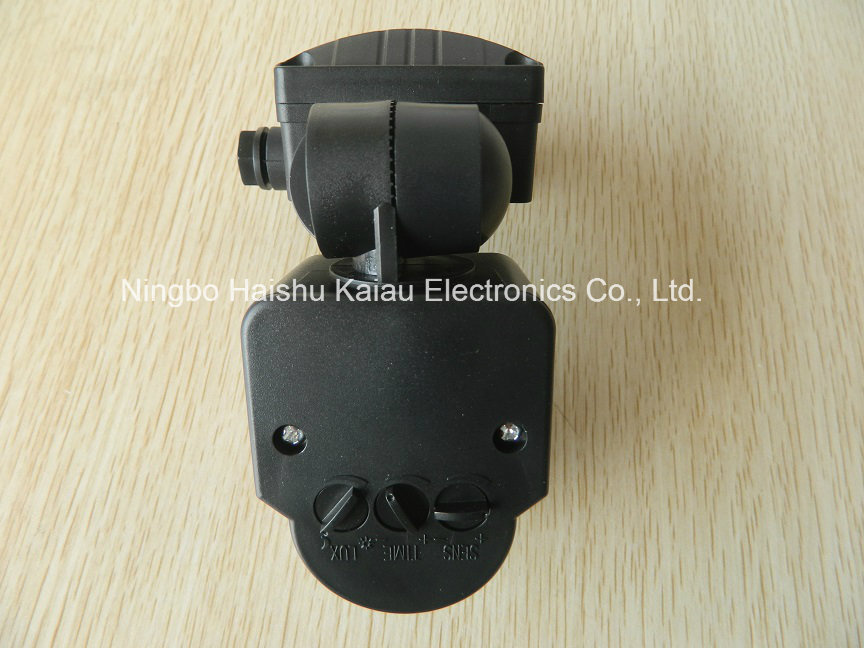

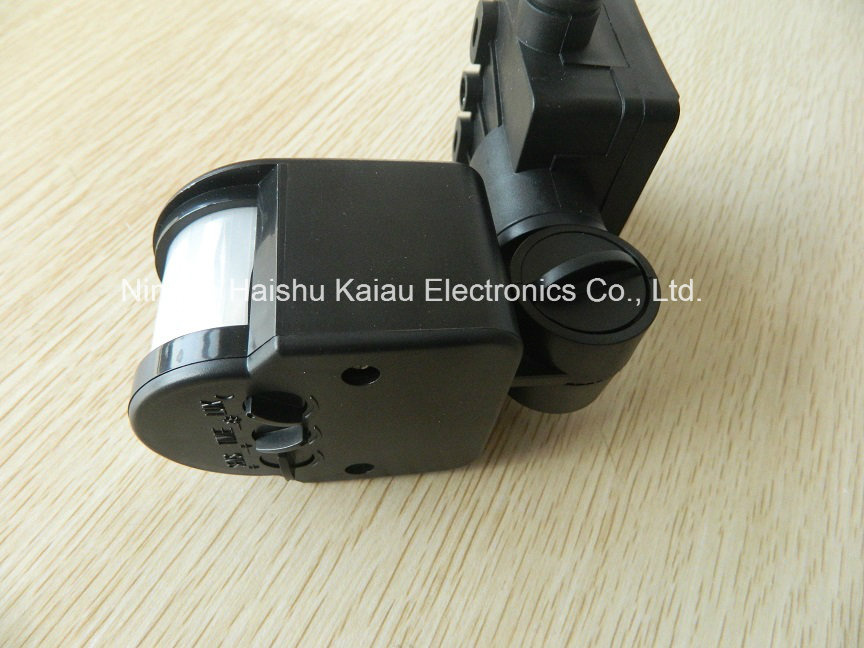

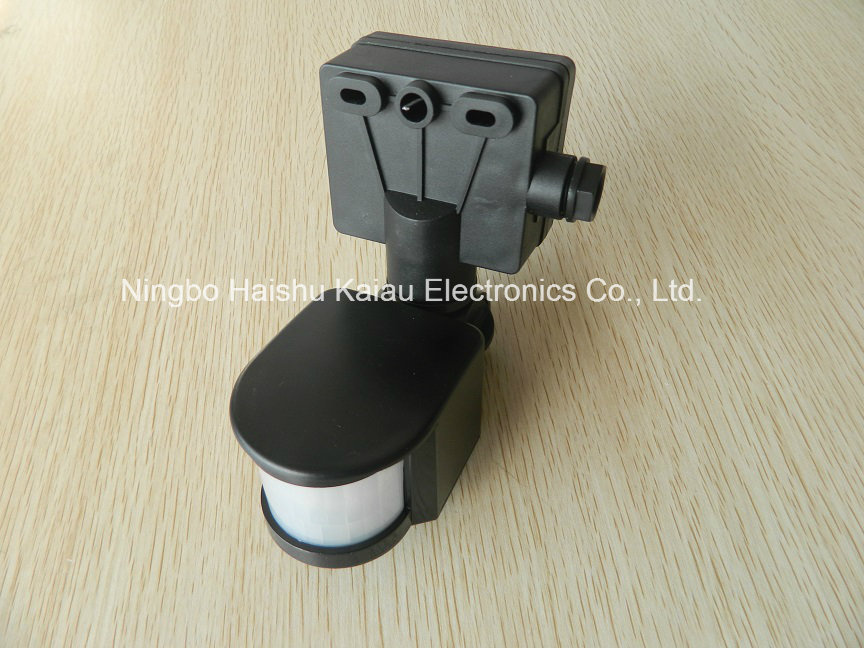

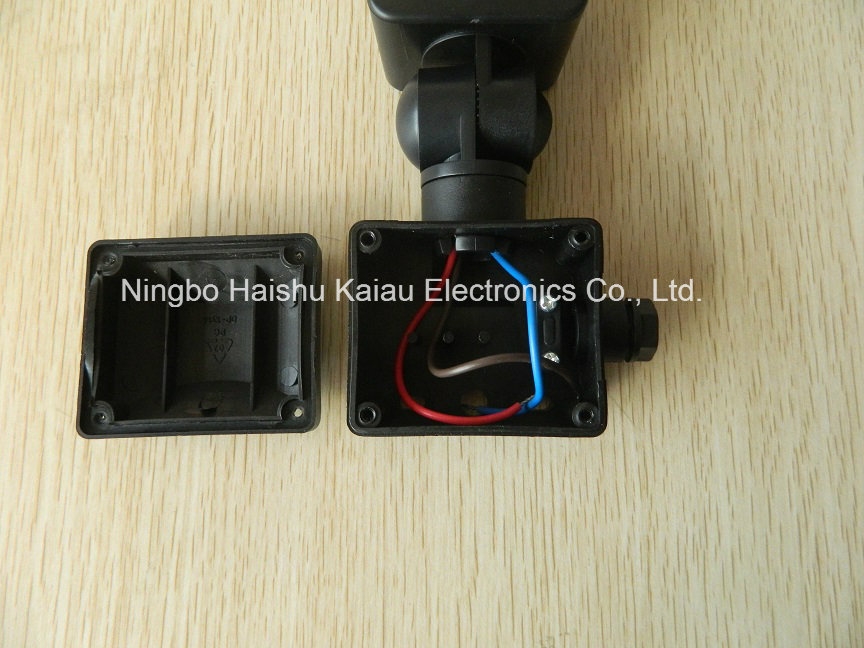

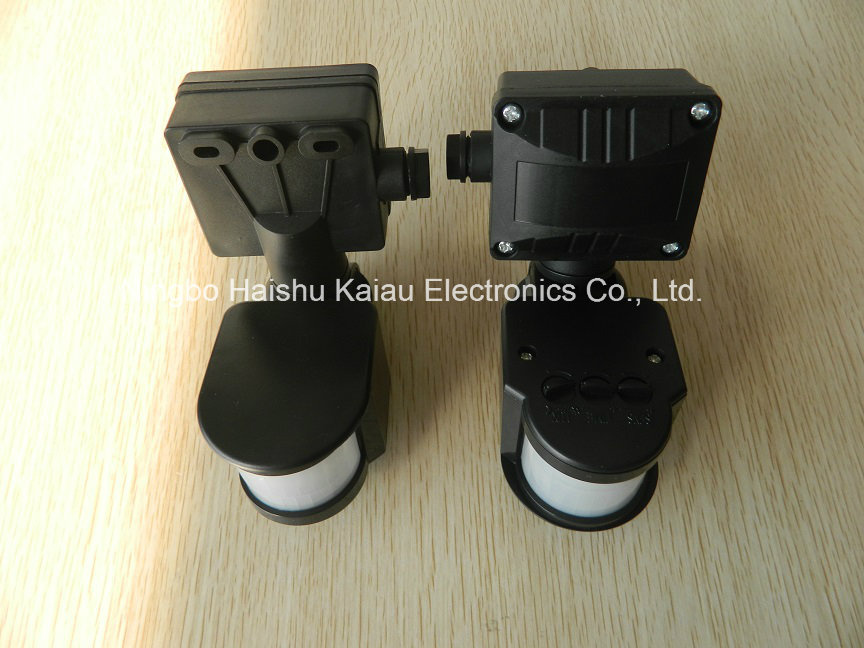

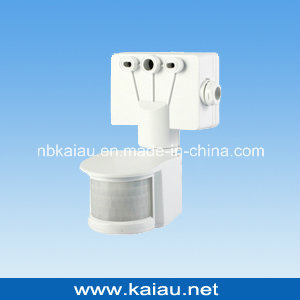

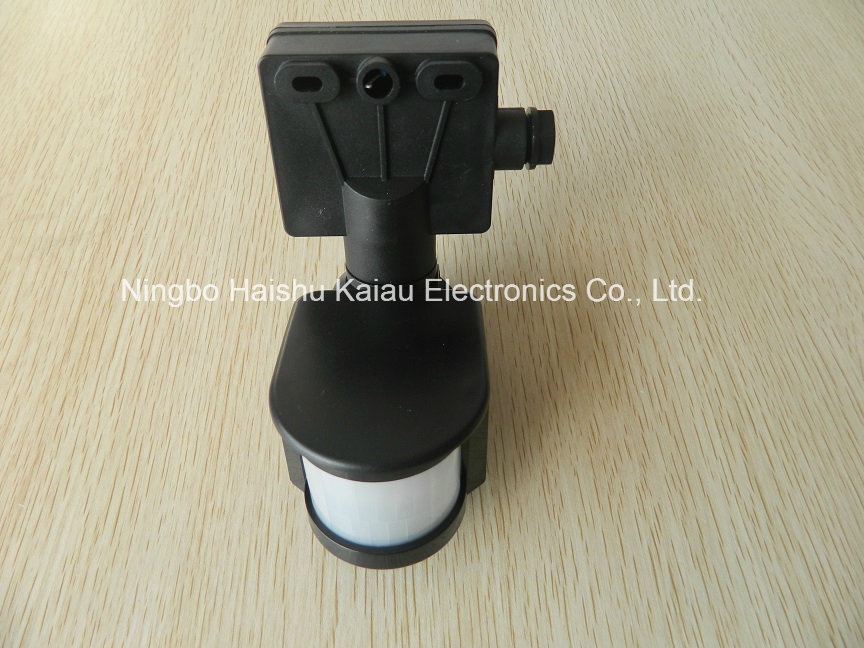

KA-S41 Actual photos:
