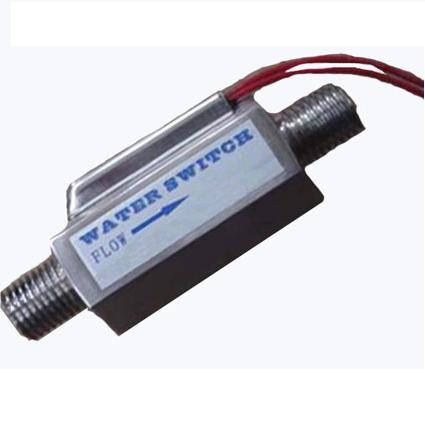

Piston Type Flow Switch with Connection G1/2'' to G2''

Name: Piston Type Flow Switch with Connection G1/2'' to G2''
Brand: all-electronics-online.com
SKU: 670509931
Availability: InStock
Rating: 4.6 (63 reviews)

Price:	US $ 1-11/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FS-M-PS020
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Principle:	Eddy Current
Material:	SUS304
Ring Material:	SUS304
Tempe Rating:	-40~+110c
Max Pressure:	2 MPa

Product Description

We are first class retailer, wholesaler, and exporter for Piston Type Flow Switch FS-M-PS020 in China since 2009. Quick response, fast delivery.
Application:
The switch can be widely used in petrochemical industry, water treatment for environmental protection (Chiller, Heat pump water heater ), welding equipment, laser equipment and some other systems for monitoring. The switch with high performance, it equipped with permanent magnet. Just has one
Removable part. The Operating principle is easy.
Characteristic:
*Chinese patent certificate;
*Full stainless steel structure;
*Using in oil and water needn't filter. Energy-saving design;
*It could be installed horizontally and vertically;
*Max pressure is greater than 2Mpa;
*Resistance to the liquid is very little.
Operation Explain
Flow switch is mainly used in the system to instruct switch on/off according to flow rate. To set a highest lowest flux in the flow switch, when the flow rate reach the set value, flow switch releases signal or alarm, and the system will work or stop.

Caliber Size	Caliber Size	Lowest Sensor Flux (choosing )
2SS	G1/4"	3L\5L
3SS	G3/8"	3L\5L
4SS	G1/2"	3L\5L\8L
6SS	G3/4"	5L\8L\10L
8SS	G1"	8L\10L\15L\25L

Electrical Characteristic:

Electrical Characteristics	Units
Material		SUS304
Ring Material		SUS304
Tempe Rating	ºC	-40~+110
Max Pressure	MPa	2
Max Volume		30L
Max Contact Rating	W	70
Max Switching Voltage	VDC	≤250 (12, 24V)
Max Switching Current	A	0.5
Max contact Resistance	mOhm	200
Electrical Life (at Resistance load )	VDC/mA	1.5x10 7 (20/500)
Cable Type		UL1332-AWG22
Cable Length	mm	500
Cable Color		Blue
