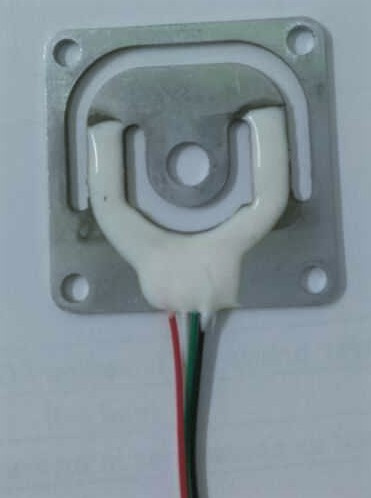

Planar Load Cell, Micro Load Cell

Name: Planar Load Cell, Micro Load Cell
Brand: all-electronics-online.com
SKU: 810145405
Availability: InStock
Rating: 5 (90 reviews)

Price:	US $ 1-3/Piece
Min Order:	10/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CZL928DAD
Output:	Analog Sensor
Dimensions ( Mm ):	34X34xh
Cable ( Mm ):	0.6X420
Pattern:	Single Point Type

Product Description

Applications:

Our micro-load cells can be applied in body scales, hand scales, kitchen scales, postal scales, fishing scales, baby body scales and other micro electronic weighing systems.

Parameters:

1. Rated Load: 10kg, 30kg, 50kg

2. Rated Output: 1.0/1.5+/-0.2 mV/V

3. Zero Balance: +/-0.3 mV/V

4. Linearity: +/-0.05%F.S

5. Hysteresis: +/-0.05%F.S

6. Repeatability: +/-0.05%F.S

7. Creep: +/-0.05%F.S(3min)

8. Input Resistance: 1000+/-10 ohm

9. Output Resistance: 1000+/-10 ohm

10. Insulation Resistance: ≥2000Mohm

11. Temperature Effect on Zero: +/-0.1%F.S/10 deg C

12. Temperature Effect on Sensitivity: +/-0.05%F.S/10 deg C

13. Temperature Range for Using: -10~+60 deg C

14. Ultimate Overload: 150%

15. Excitation Voltage: 5~10VDC

16. Comprehensive Precision: +/-0.05%F.S

Guangdong South China Sea Electronic Measuring Technology Co., Ltd. (SCS)is located at Dongguan City, Guangdong Province, Where is the manufacture centre of China. Established in 1992, it specializes in developing and manufacturing advanced load cells, force sensor, Torque sensor, axle weigher, wheel weigher, pressure transducer based on strain-gages. We also manufacture custom designed load cells and weighing system whatever our customers can dream up. Some of our products have "OIML" and European approved "CE" mark. Hope we will establish a long term business-ship with you.
