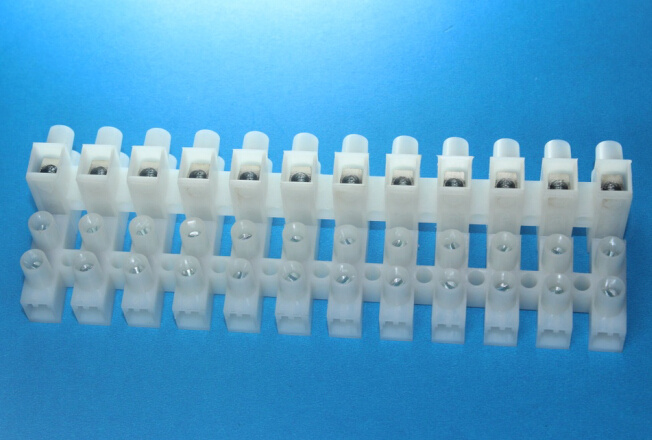

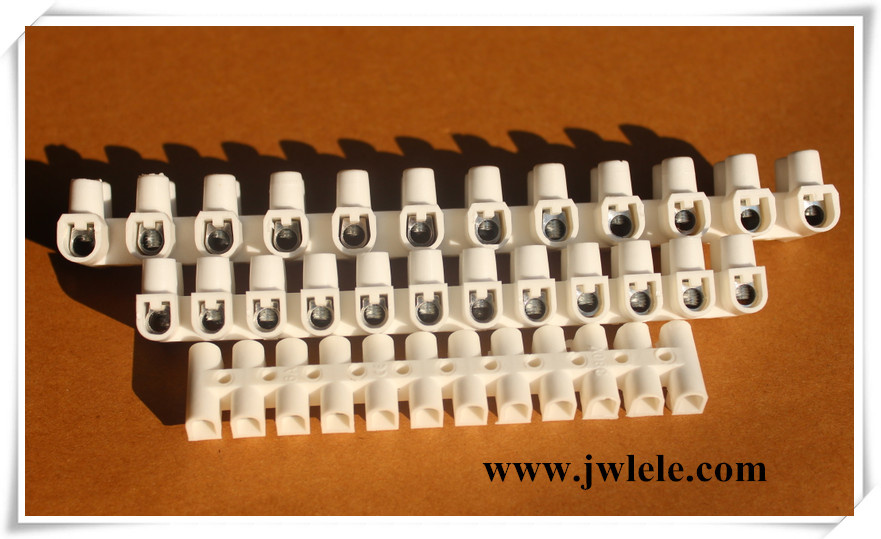

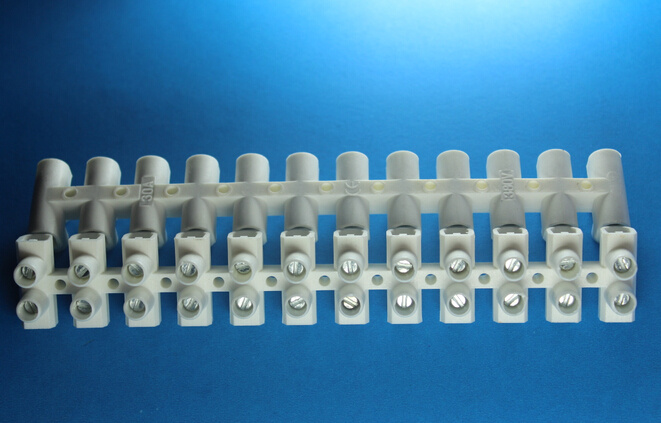

Plastic 12 Way Lighting Terminal Block From 3A to 150A

Plastic 12 Way Lighting Terminal Block From 3A to 150A
Price: US $ 0.15-0.17/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1000/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: 3A,5A,6A,10A,15A,20A,30A,60A,80A,100A,150A
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application: Wer Supply
Environmental Protection: Resistance to Environmental
Connection Mode: Threaded Connection
Shape: Rectangle
Contact Termination Form: Screws Fixed

Product Description

Type: H, U, F type
Connecting terminal of JWL-3A, 5A, 6A, 10A, 15A, 20A, 30A, 60A, 80A, 100A, 150A

Material: PE, PP, PA
Brass insert and Steel screw
Voltage: 250V~400V

Cable Range(Cable wire): 2.5MM~40MM
Working Temperature: -40° To 110°
Color: Natural color and black color

Number of Contacts: 1-12 pole
Conductor Size:11-20AWG
Type: Feed Through

Samples are available

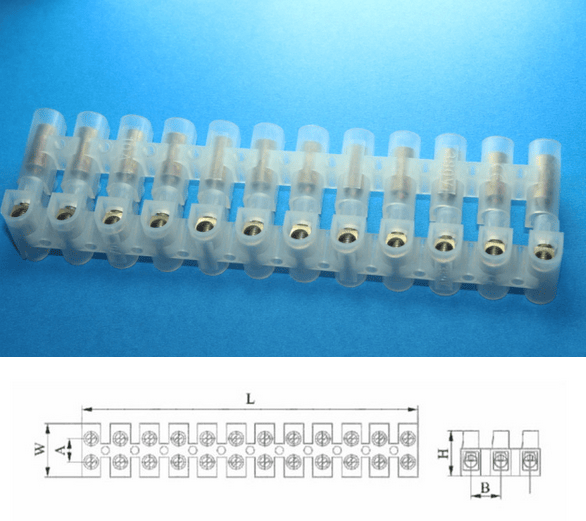

Item No.Section size(mm² )L(mm)W(mm)HAB
JWL-3A3A-2.5/4mm² 921612.27.18.2
JWL-6A6A-6mm²11517.714.17.89.2
JWL-10A10A-10mm²124.620.616.88.711.1
JWL-15A15A-12mm²133.522.318.69.812
JWL-20A20A-14mm²141.622.818.210.112.2
JWL-30A30A-16mm²164.124.121.811.215.1
JWL-60A60A-25mm²190312513.817.2
JWL-80A80A- 30mm²20737281519
JWL-100A100A-35mm²22838.93417.121
JWL-150A150A-40mm²26044.133.823.125.2
Our company is a key electrical accessories manufacturer of terminal blocks and other cable accessories in China.

Our company is located in Yueqing, Wenzhou City, Zhejiang Province. It is a manufacturing and export company, specialized in producing components for kinds of lights, automobile and so on. They have gone through many authentications such as CQC, CE, RoHS. The main products are terminal blocks and wires, cable ties, cable clips, cable glands and copper inserts. They have entered the mafket of most parts in the world including Europe, the Middle East and Latin America. They are of good quality and sell well in many countries.

Our company manufactures products strictly according to IEC and national GB standards, and we have established a complete and improved quality management system according with ISO9002 standard system, We guarantee the products with competitive price, high quality and timely delivery. Besides, we can supply a complete set of after-sales service to our customers and help term expand their local market share.

We welcome you to contact us for more information and we are looking forward to chances of creating a long and mutually beneficial partnership with you. We do hope to cooperate very very well and develop rapidly with our joint efforts for mutual benefits.
