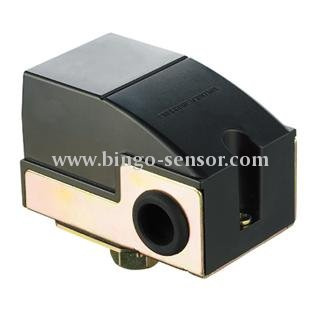

Plastic and Brass Water Pump Pressure Switch

Name: Plastic and Brass Water Pump Pressure Switch
Brand: all-electronics-online.com
SKU: 670485731
Availability: InStock
Rating: 4.4 (31 reviews)

Price:	US $ 1-11/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PS-W10
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Contacts:	Normally Open
Application:	Industrial
Medium:	Water
Min On (Cut-in) (Psi):	15
Max Off (Cut-out) (Psi):	80
Type:	Mechanical

Product Description

We are wholesaler and exporter for Water pump pressure switch PS-W10 in China since 2009. Quick response, fast delivery.
Water pump pressure switch PS-W10 pressure switches provide continual, reliable control for automatic water systems. The switch is universally acceptable for use as original equipment on water pumps or pumping systems. PS-W10 can prevent the pump from starting in case the system is below cut-in pressure. When the system pressure returns to pre-set value, it will automatically cut-in.
The manual reset knob allows the system start running by manual operation. This simple design makes it easy to use for professionals and nonprofessionals as well.
· Corrosion Resistant and Non Metallic Cover
· No Wire Looping
· Straight Thru Wiring
· Visible Contacts 2 Pole Double Break
· No Drift Pressure Settings
· Captive Cover Screw
· Ample Wiring Room
· Ground Screws
· Easy to Adjust
· Stainless Steel Connection is optional
· Other Connection fittings are optional
Technical Data:
Other pipe fittings are available on request. Stainless Steel Connection is optional.
Conversion: 1Kgf/cm2 = 14.2PSI, 1bar = 14.5PSI

MODEL	Medium	Min ON (Cut-In) (PSI)	Max Off (Cut-Out) (PSI)	Differential (PSI)	Factory Setting (PSI)	Electrical Rating		Connection	Contact Arrangement
						120VAC	240VAC
PS-W10B-1	Water	15	80	15-30	20-35	20A	12A	1/4" Male or Female NPT	NC
PS-W10B-2		30	100	20-35	30-50	20A	12A
PS-W10B-3		35	150	30-40	85-115	20A	12A

MODEL	Medium	Max On (Cut-in) (PSI)	Min Off (Cut-out) (PSI)	Differential (PSI)	Factory Setting (PSI)	Electrical Rating		Connection	Contact Arrangement
						120VAC	240VAC
PS-W10K-1	Water	80	15	15-30	35-20	20A	12A	1/4" Male or Female NPT	NO
PS-W10K-2		100	30	25-35	50-30	20A	12A
PS-W10K-3		150	35	30-40	115-85	20A	12A
