Plastic Float Level Controller

Name: Plastic Float Level Controller
Brand: all-electronics-online.com
SKU: 723140575
Availability: InStock
Rating: 5 (102 reviews)

Price:	US $ 10/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	20/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	260S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Contact Capacity:	50W
Switch Mm:	220VAC
Switch Current:	0.5A
Insulated Resistance:	>10mohm
Working Life:	100 Ten Thousand Times
Working Temperature:	-10-+85c
Working Pressure:	15bar
Accuracy:	+/-2mm
Medium Gravity:	>0.55
Material:	PVDF
Standard:	Standard
Certification:	CE

Product Description

CX-FLM-RF20F Small float level switch

This mode adopt the anti-corrosive material (PVDF), It has the advantage, like: Easy to use, safe and reliable, small structure, fast response, long working life, low cost, good corrosion resistance and anti-shock load capability. It is widely used in shipbuilding, paper, pharmaceutical, printing, plastic auxiliary equipment, petrochemical, food industry, water treatment, electrical, industrial dyes, hydraulic machinery etc.

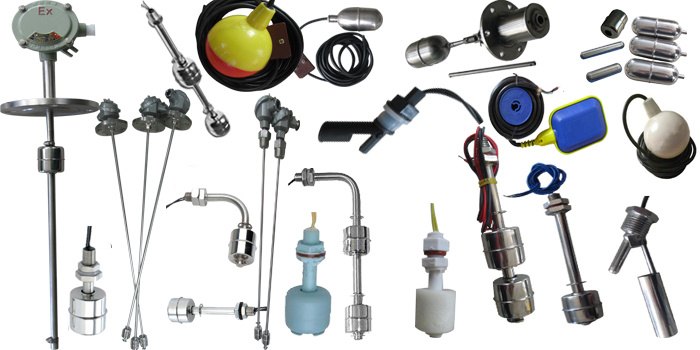

products:

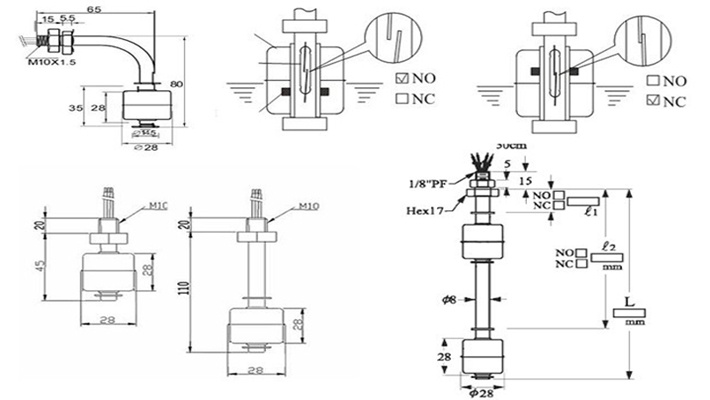

diagram:

workflow:

Would you pls give us more specific information as below:

What's the medium?

What's the medium temperature?

What's material of the float ball?

What's the length of cable?

What's the current voltage?

What's the working temperature?

What's the working pressure?

Payment Terms

1.Loading Port: Shanghai China

2.Samples Leading Time: 3-7 working days

3.Delivery Time: Within 7-15 days after payment

4.Payment:T/T, Western Union, Paypal

After-sales service

1 Warranty: The warranty period is 12 months starting from the shipping date;

2 Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;

3. For on-site services not arising from manufacturing quality, we shall charge a certain service fee at our discretion based on actual charges incurred such as travel expense;

4. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.

Installation	Top or bottom-mounted (vertical +/-20 °C)
Screw	M10
Electric connection	300mm, UL1430 AWG22
Working pressure	15 Bar
Working temperature	-10~75°C
Accuracy	+/-2mm
Switch type	N.C./N.O
Working voltage	220VAC
Working current	0.70A
Contact capacity	50w /70W /SPST
Working life	1000000times
Contact resistance	<100mΩ

Cixi flowmeter Co., Ltd. Was established in 2008 and since then has been dedicating itself to research and manufacture of various kinds of flowmeter. With sophisticated experience in technology and management, CIXI Flowmeter has made a name for itself as an excellent manufacturer of various kinds of flowmeter. In 2007, we have especially set up Shanghai Cixi Instrument Co. Ltd for handling the deals of Export.

Thanks to outstanding performance of products, CIXI Flowmeters are being applied in more and more fields where there' S liquid to measure. CIXI Flowmeters have found users in many countries besides China, such as Malaysia, India, Thailand, Vietnam, South Africa and so on. Increasing number of users are finding that CIXI Flowmeter are kind of product with super performance and reasonable price.
