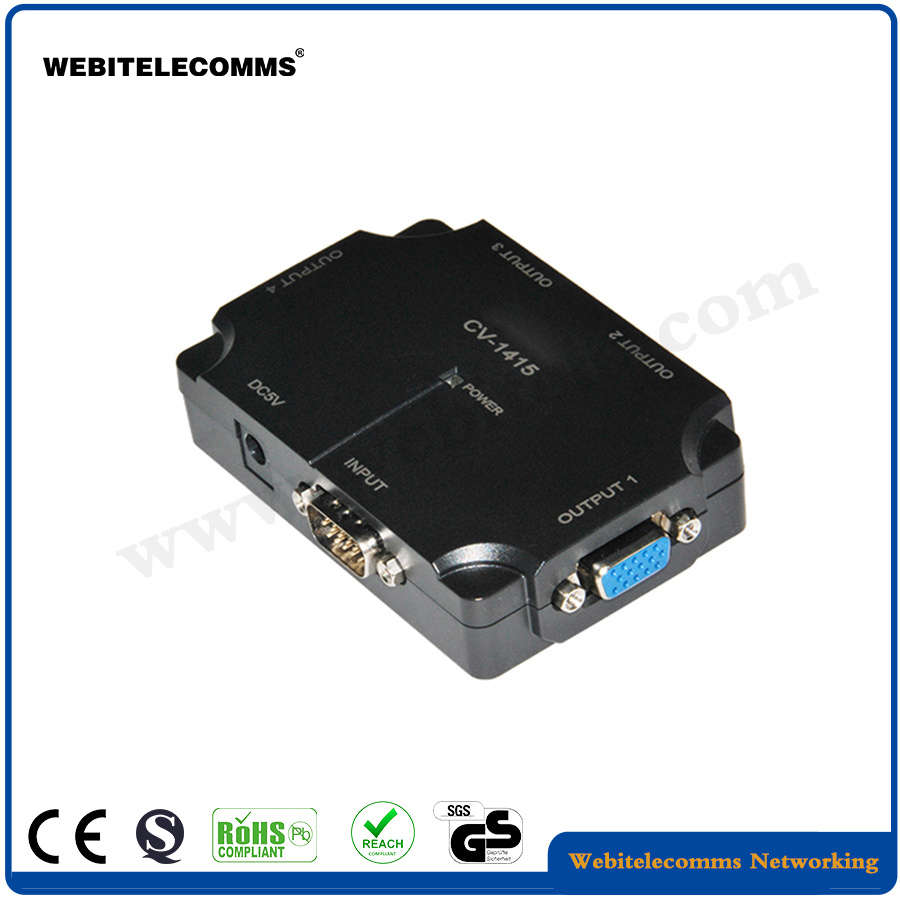

Plastic Housing 4 Ports VGA Video Splitter
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
WB-CV-1415 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Bandwidth: |
500MHz |
| Connector Type: |
Input HD15m; Output HD15f |
| Min Input Voltage: |
0.5vp-P |
| Max Input Voltage: |
1.0vp-P |
| I/O Impedance: |
75 |
| Usage: |
Server |
| Type: |
Wired |
| Support Network: |
Ethernet |
| Information Content: |
Data |
| Certification: |
RoHS |
| Condition: |
New |
Product Description
VGA splitter (video splitter) is the equipment to distribute 1 video signal to multiple VGA output equipments synchronously, to ensure different displays show the same image. The equipment with additional power adapter, which can blow up and dispose the output signals, in order to ensure and improve the signal output plus. Advantages: high bandwidth, resolution and reliability, As well as the long-distance signal transmission, the max long-distance can reach 65 meters. it could be used in: securities business, computer exhibition hall, public broadcasting and education & training center etc.
Features:
(1)Allows one PC to split the same image onto 4 monitors/projection equipments/other video output equipments;
(2)Support cascade by 2 ties;
(3)Video resolution: 1920*1080;
(4)The distance can be connected up to 75m;
(5)It is perfect for Stock Market, International Expos, Conference Room, Classrooms&Trading Facilities, Tradeshows, Public Broadcasting, where highest quality video signals on several is needed.
Order info.| Type | CV-1215
CV-1415 | CV-1235
CV-1435 | CV-1250
CV-1450 |
| Bandwidth | 150MHZ | 350MHZ | 500MHz |
| signal | Product Type | 1 into 2/1 into 4 |
| Connector type | INPUT HD15M OUTPUT HD15F |
| Min input voltage | 0.5Vp-p |
| Max input voltage | 1.0Vp-p |
| I/O impedance | 75Ω |
| Max Resolution | 1920*1080 | 2048*1536 |
| Horizontal frequency | 30-120KHz |
| Vertical frequency | 40-120Hz |
| pertinence | Dimension (mm) | 66*62*24 | 86*122*24 |
| Power | Via USB Cable Provide (5V 500mA) |
| House | Plastic |
