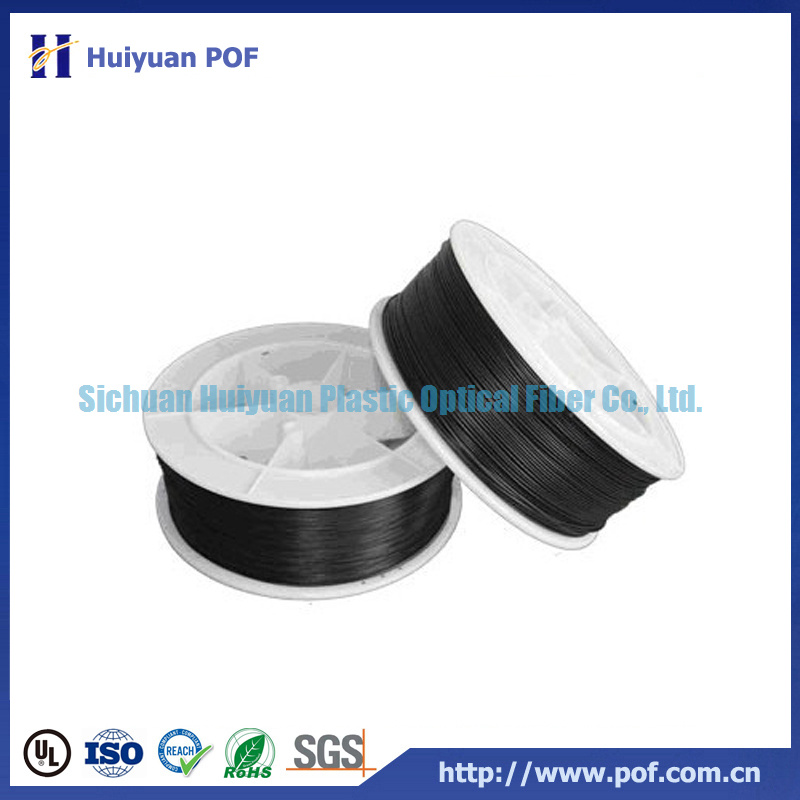

Plastic Optical Communication Cable

Name: Plastic Optical Communication Cable
Brand: all-electronics-online.com
SKU: 829484305
Availability: InStock
Rating: 4.9 (127 reviews)

Price:	US $ 100-300/Roll
Min Order:	10/Roll
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	CC2-1000
Length:	1500m/Spool
Size:	360mm360mm185mm
Weight:	7kg
Application:	Fiber Optic Cable
Conductor Material:	Plastic
Cover Material:	PE
Certification:	Reach
Type:	Plastic Optical Fiber Cable
Wire Core Material:	PMMA
Model:	Cc2-1000
Brand:	Hypof

Product Description

Features
1. Light in weight, energy saving and safe
2. High bandwidth, excellent flexibility, vibration resistance
3. Anti-electromagnetic interference, stable and reliable signal transmission
4. Heat and code resistant(-4~158 F)
5. Easy to install and connect, maintenance easy
6. Comply with YD/T 1447-2006 and YD/T 1258.6-2006, the state communications industry standard.

Applications
1. Sensor signal transmission
2. Industrial control signal transmission
3. Audio signal transmission
4. Special LAN or access network
5. Auto multimedia signals or control signal transmission
7. Military equipment

Specifications
Model	Optical fiber diameter(mm)	Optical cable diameter(mm)	Coil length(m)	Attenuation
CC2-1000	1.0± 0.06	2.2± 0.1	1500/2600	≤ 0.2dB/m
CC-1000	1.0± 0.06	2.2± 0.1	1500/2600	≤ 0.4dB/m
Technical Parameters
Parameters	Unit	Numerical value
Fiber material	---	PMMA/ Fluororesin
Jacket material	---	PE
Attenuation	dB/m	≤ 0.2; ≤ 0.4
NA	---	0.5
Wavelength	nm	650
Incident angle	---	≤ 60°
Bandwidth	MHz 100m	≥ 10
Bend radius	---	≥ 10 times of fiber diameter
Operating temperature	F	-4~158
Storage temperature	F	-4~158
Refractive index	---	Step index

Sichuan Huiyuan Plastic Optical Fiber Co., Ltd is a high-tech company which specializes in researching, manufacturing and marketing of low-loss PMMA plastic optical fiber, optical cable as well as its applications.

Launched in 2000, the company had realized the mass production of Low Loss PMMA POF through independent R &D of optical fiber raw materials, manufacturing equipment and production process in 2003, which was recognized as the first success in China. The company's products have broken the monopoly of foreign companies and filled the gaps in the domestic industry. Based on this success, the company had undertaken and accomplished the technological breakthrough task of the National Science and Technology Department, the Industrialization Upgrading Project of the State Development and Reform Commission, and the independent manufacturing of fluorine resin clad material, with the optical attenuation < 0.2dB / m, which has achieved an advanced level among the similar products in the world>.

It has developed the technology of lighting products, and has cultivated a large number of lighting manufacturers and lighting dealers; PMMA POF is widely used in decorative lighting in China.

We are expanding our market to oversea market! Sincerely welcome any contact from dealer in communication and lighting area around the world!
