| Prod Model: |
FS-M-PD015A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Principle: |
Eddy Current |
| Max. Current: |
5A |
| Wiring Connection: |
DIN 43650 Connector/Attached Cable |
| Output: |
Spdt Micro Switch (Factory Set N/O) and Optional S |
| Pressure: |
25bar(Can Be Custom-Made Higher) |
| Working Temperature: |
-10-85º C |
Product Description
We are first class retailer, wholesaler, and exporter for Paddle Type Flow Switch FS-M-PD015A in China since 2009. Quick response, fast delivery.

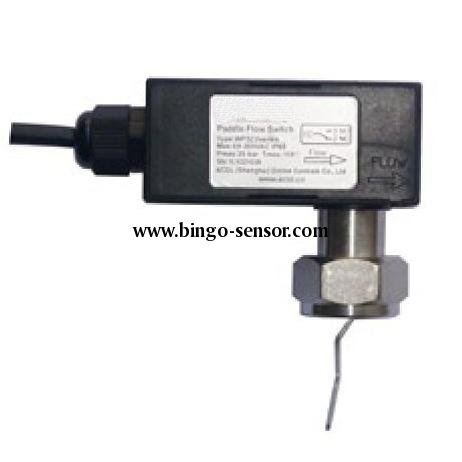

Paddle Type Flow Switch FS-M-PD015A Introduction:
FS-M-PD015A is a gas-liquid dual-use flow switch, widely used in industrial automation mechanical equipment / refrigeration and air condition, in industrial occasion specific apply in the water-cooled welding machine, laser equipment, cooling systems, vacuum coating machines, electric furnace, polycrystalline silicon ingot furnace and so on. The principle of paddle flow switch FS-M-PD015A is design for monitoring water / water loop heat pump air conditioning units and heat pump water heaters water flow, due to the water source heat pump suddenly water flows disrupt when it is running (such as cooling water pump unexpected stops or the water supply of an air conditioning unit electromagnetic valve suddenly closes or other accidental water unplanned outages) caused unit abnormal high pressure or lead to compressor breakdown, a sudden disruption of water flows for heating may cause the heat exchanger freezing, causing unnecessary losses.
Advantage:
1. Flow switch magnet is not only in the flowing waterways, can also be used in the sewage system and can work properly.
2. Minimal pressure loss, good reproducibility and dirt capacity, through knob to achieve accurate switch setting.
3. Special paddle flow switch isolate the mechanical parts and electronic parts
4. There are many types for customers choosing in order to adapt to different applications.
Technical Parameter:
| Voltage | With status indicator lamp: max voltage 250V, Without status indicator lamp: 24VDC± 10% |
| Max. current | 5A |
| Wiring connection | DIN 43650 connector/attached cable |
| Output | SPDT micro switch (factory set N/O) and optional status indicator |
| Pressure | 25bar(can be custom-made higher) |
| Average pressure loss | 0.01 bar (Max. flow) |
| Working temperature | -10-85º C |
| Protection class | IP65 |
| Material | Housing: nickel-plated brass/PPO plastic Paddle: stainless steel/brass Electrical shell: ABS |
