Plastic Piston Type Flow Switch

Name: Plastic Piston Type Flow Switch
Brand: all-electronics-online.com
SKU: 782002035
Availability: InStock
Rating: 4.9 (86 reviews)

Price:	US $ 1-11/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	FS-M-PSP01
Medium:	Clear Water and Non-Aggressive Fluid
Housing Material:	Nylon+Glass Fiber
Contact Form:	Spst No
Protection Grade:	IP65

Product Description

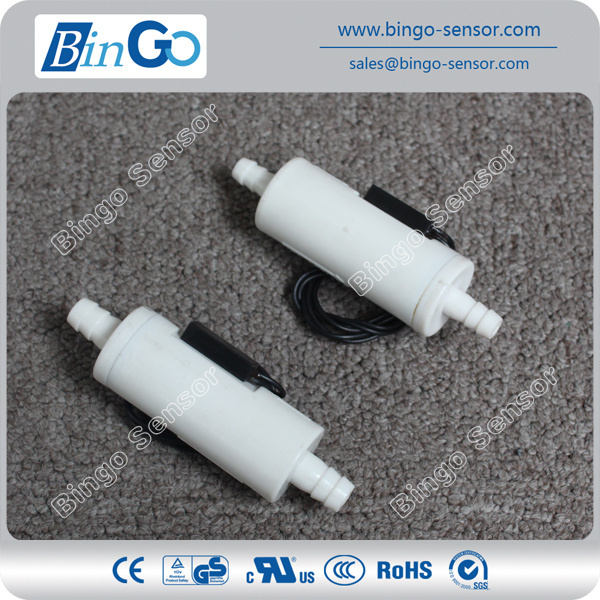

Piston Type Flow Switch
Piston type flow switch has a magnetic ring inside the psiton.When the water pressure pushes the piston to the position of the reed switch,the switch is triggered and generates ON/OFF signal.This is kind of switch has stable working performance,it is widely used in many kinds of facilities.some kinds of the piston type flow switches can change the flow rate signal by adjusting reed switch position.it is the first choice of all kinds of devices.

Model	FS-M-PSP01-Q08	FS-M-PSP01-Q10
Medium	Clear water and Non-aggressive fluid
Housing material	Nylon+Glass fiber
Long time working temperature	≤60ºC
Max.fluid temperature	≤80ºC
Start-up flow rate	0.6L/min
Max.flow rate	8L/min	12L/min
Connection	Φ8MM	Φ10MM
Operate pressure	<1Mpa
Max.fluid pressure	<1.5Mpa
Electrical rate	0.5A/200VDC,10W;1A/250VAC,50W;
Contact form	SPST NO
Protection grade	IP65
