Plastic Powercon Cable Plug and Socket Munufacturer, Electrical Socket Connector Waterproof IP65 for Indoor LED Equipment

Name: Plastic Powercon Cable Plug and Socket Munufacturer, Electrical Socket Connector Waterproof IP65 for Indoor LED Equipment
Brand: all-electronics-online.com
SKU: 836280405
Availability: InStock
Rating: 4.4 (42 reviews)

Price:	US $ 8/Set
Min Order:	10/Set
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

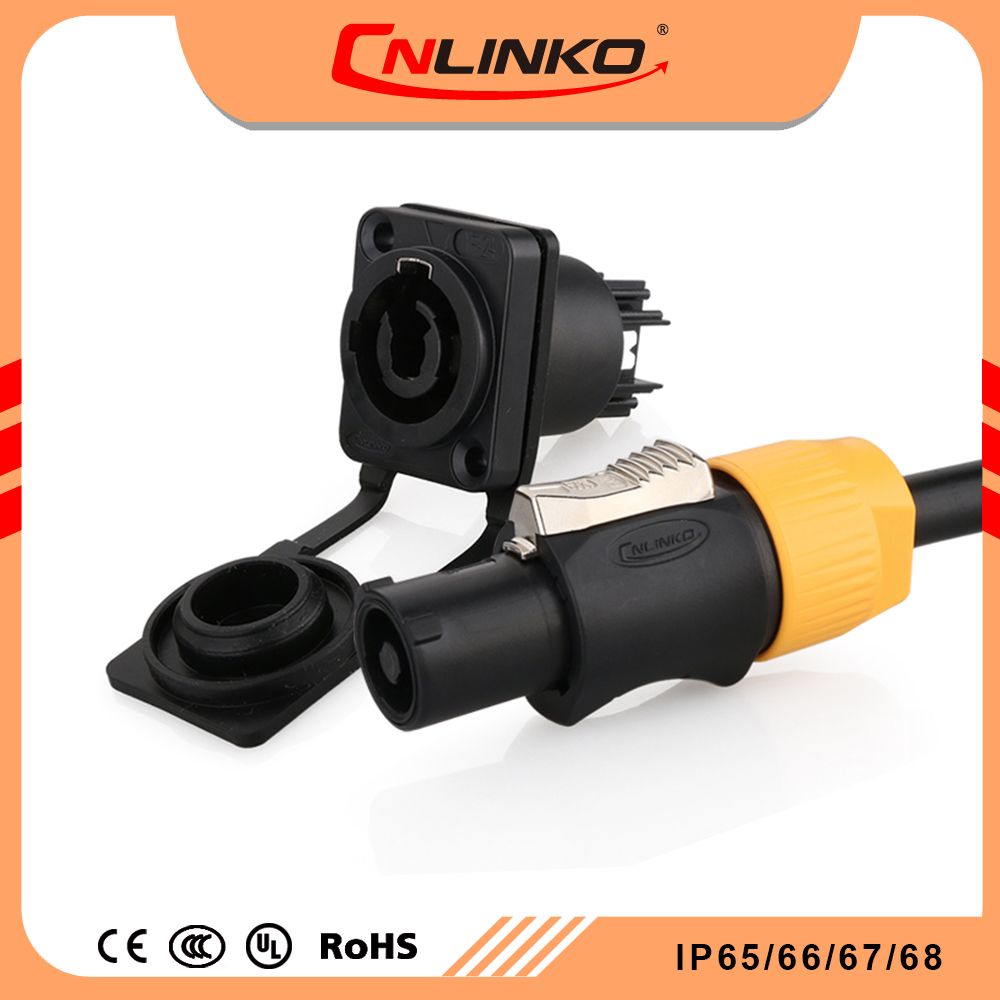

Prod Model:	YF-24-C03PE-01-001; YF-24-J03SX-01-001

Product Description

Product Description

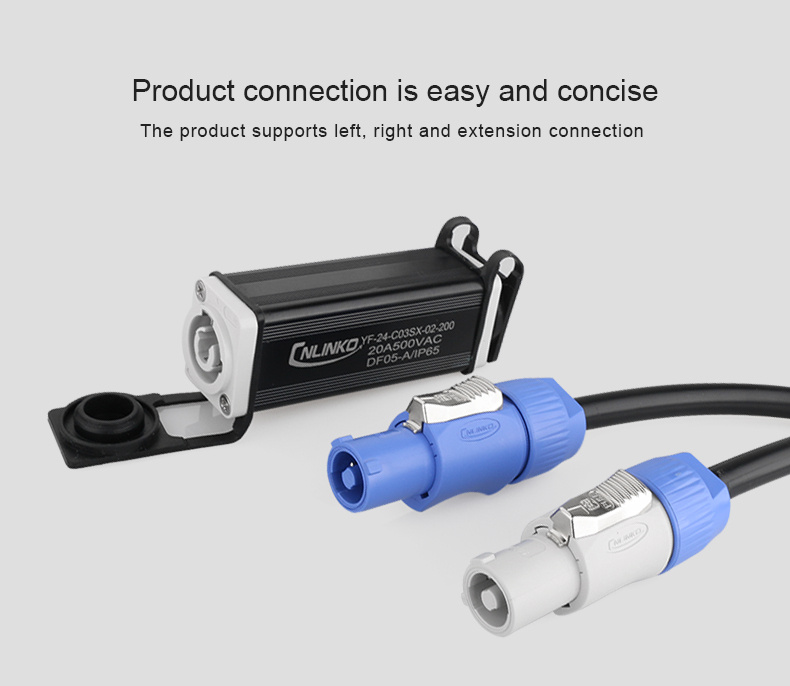

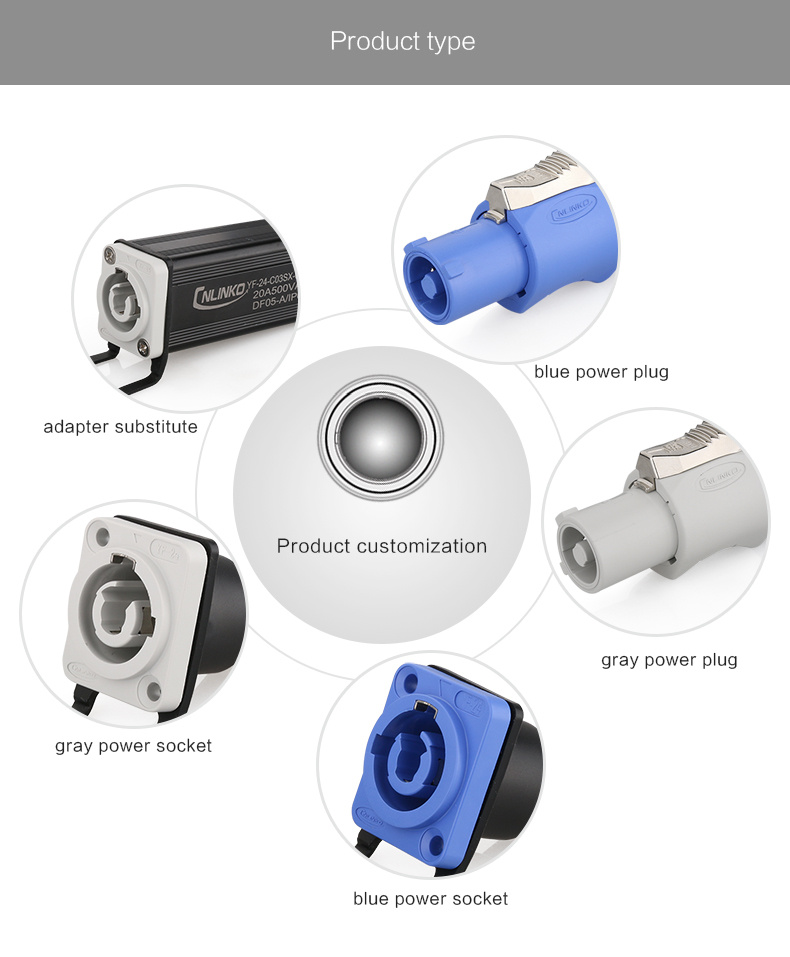

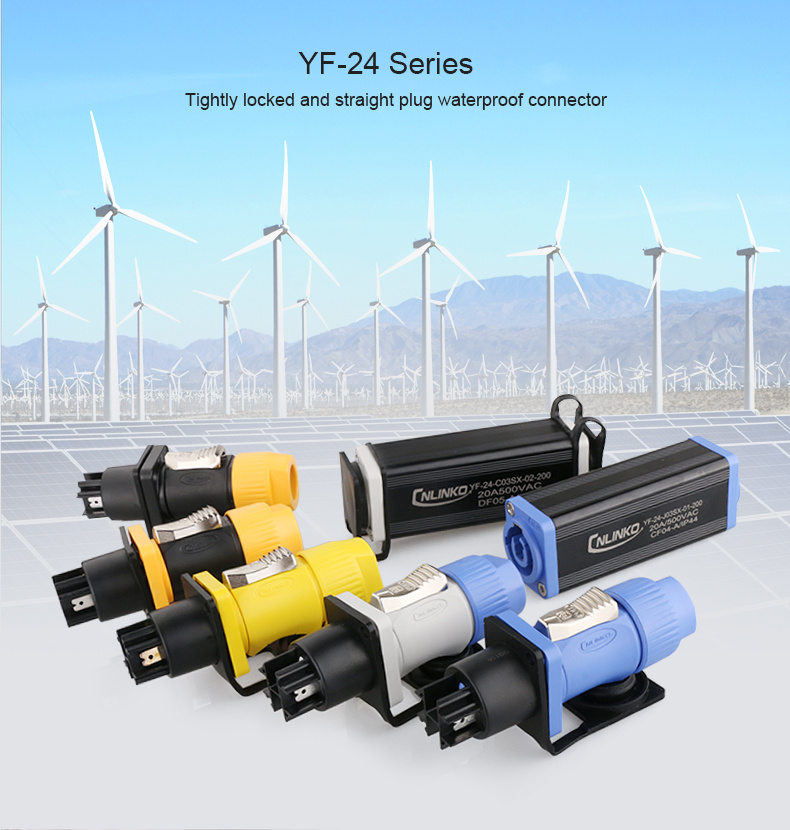

YF-24 Power connector, because of its unique latching locking bolt, which is easy to operate and with a unique blue/ gray separable power in and power our to distinguish input and output of device, also with a power converter to make conversion between the terminals and make it more flexibility. Widely be used in Audio, video and power equipment.

Features:

locking 3-pin connector of the device (middle, straight &pre-adaptation) - flexible;
Zinc alloy material against high frequency noise and electromagnetic interference
gold-plated contacts, high-strength corrosion resistance
electrical conductivity effectively deal with temperature rise.
silver-plated contact;
rated current: 20A;
3 PIN Plug and Socket Speaker Connector, Adapter Connector for Audio and DJ Equipments.

YF-24-C03PE-01-001;YF-24-J03SX-01-001

Specifications:
Connecting mode:	Plug/unplug,
Protection level:	IP65
Cable specification:	2.5mm2 ~ 4mm2 /14~12AWG
Diameter range:	Φ8mm ~Φ12mm
Contact diameter×Qty:	2.0×3
Current rating(A):	20A
Operating voltage(AC.V.rms):	500V
Withstand voltage(AC.V)1min:	2500V
Contact resistance:	<3mΩ
Insulation resistance:	>500MΩ
Durability:	≥500 mating&unmating cycles
Temperature rating:	-40°C~80°C
Prevent the combustion level:	UL94-V0
Temperature rise:
Material:
Shell&insulated parts:	High performance engineering plastics
Hardware metal:	Zinc alloy(pearl hard chromium)
Contact pin:	Copper alloy(gold-plated)
Spring:	Stainless steel
Sealing:	Silica gel
Main characteristics:

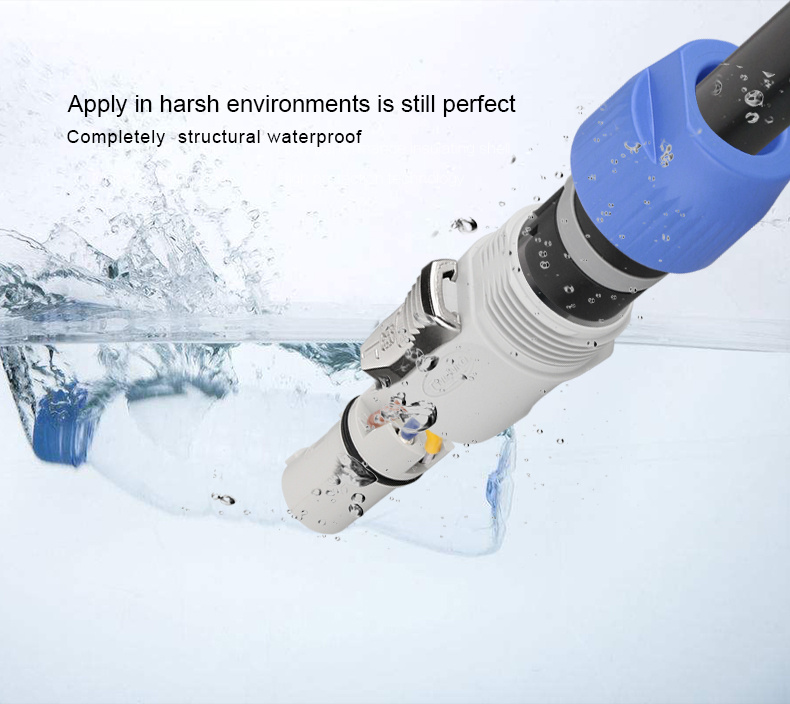

- Sealed against dust and fluid (IP68)
- Vibration resistance,impact resistance,stretching resistance
- With one hand, can quickly insert or pull out
Application industries:
- Stage equipment	- The smart grid
- Medical equipment	- Server
- Solar energy equipment	- Ship equipment
- Electric power equipment	- Vehicle equipment
- Communications equipment

Founded in 2004, Shenzhen Linko Electric Co., Ltd is a manufacturer in designing and manufacturing and marketing in the field of connectors.

We adhere to such principles"Integrity-base, quality-first, technological precedence&greater perfection. " After 10 years stabled developed, perfect management system was established, with creative, efficient, dedicated, rigorous R&D team, advanced production line.

Powerful product testing and quality testing laboratory and also covers dozens of professional files testing, excellent sales team and strong channels distribution net work.

Specializing in design high-performance industry connectors and approved by identification UL(E365869), CE, CCC, ISO9001-2008 and also with more than dozens of patents and international certifications.

We will always keep skills fresh and up-to data with international.

Cnlinko's products are widely used in variety of challenging enviroments, such as LED screen, LED lighting, Audio visual equipment, stage lighting, industrial automation equipment, heavy industrial equipment and the others.

Welcome to visit us and joint designing and develop new products, For the goal win-win cooperation and mutual benefit.
