Plastic RJ45 Cat5 Wateproof Connector for LED Display

Prod Model:	YT-RJ45-CPE-01-001& YT-RJ45-JSX-01-004-002
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
MOQ:	100sets
Certification:	UL, CE, RoHS, CCC, ISO9001
Cable Specification:	0.15mm-0.2mm2/26-24AWG
Diameter Range:	Od5.5-7mm
Rated Current:	1.5A
Connector Type:	RJ45
Gender:	Female
Application:	Microwave

Product Description

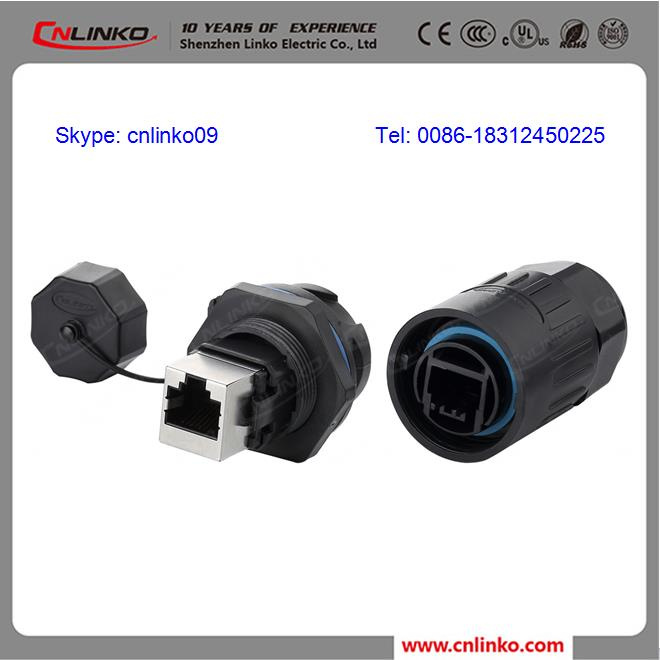

Plastic RJ45 cat5 wateproof connector for led display

. Compliance with D level or CAT 3E standard of EIA 5688 and ISO / IEC11801,RJ45 connector compatible CAT6E.
. D panel connectors ,metal shell and locking system.
. shielding system with high frequency noise immunity and electromagnetic interference protection.
. Push-pull design with secure locking system and optional installation of straight or pcb adapter.
. Waterproof and non-waterproof design,protection level IP65/IP68 if waterproof and dustproof .
. solid connections system can provide the solutions for date transmission in harsh environments.
. waterproof RJ45 connector


Product Features:


YT-RJ45-CPE-01-001,YT-RJ45-JSX-04-002

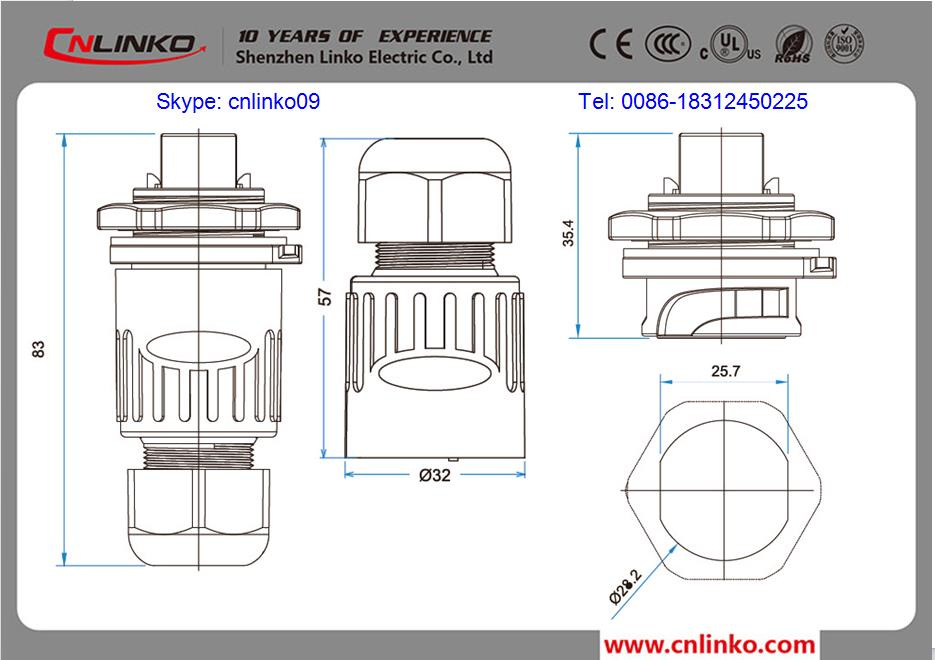

Specifications:
Connecting mode:	plug/unplug
Protection level:	IP65/67
Wire diameter scope:	Φ5.5mm-Φ7mm
Durability:	≥500 mating&unmating cycles
Temperature rating:	-40°C~80°C
Prevent the combustion level:	UL94-V0
Resistance to vibration:	10-500Hz,10g, Uninterrupted>100NS
Material:
Shell&insulated parts:	High performance engineering plastics
Sealing:	Silica gel
Hardware :	zinc alloy (pearl hard chrome)
Flammability rating	UL94-V0
Main characteristics:
- Sealed against dust and fluid (IP65)
- Vibration resistance,impact resistance,stretching resistance
- With one hand, can quickly insert or pull out the
Application industries:
- Stage equipment	- Robot technology
- Medical equipment	- Industrial process control
- Telecommunication equipment	- Mobile control
- Communications equipment	- Video control
- CNC machines	- Remote maintenance

Packaging & Shipping
1. 5pcs to a box, 40 boxes to a carton,or use customized packing with MOQ1000 pcs/model boxes.
2. Lead time: 7-10 working days after received deposit for Rj45 Poe Connector
3. DHL/UPS/Fedex/EMS/TNT(door to door) or use customer partner
Our Services

CE,CCC,CUL,UL, ROHS, ISO9001:2008 Standard.
Supply OEM service .
We have professional quality control system and R&D department to strictly manufacture each product.
100,000 pcs per month .
National level laboratory , and have flexible production line, to make quick action to urgent customized needs.
