Plastic Shell IP67 Low Voltage Plugs 5 Pin Locking Male Female Solar Lightning Cable M16 Circular Connector

Name: Plastic Shell IP67 Low Voltage Plugs 5 Pin Locking Male Female Solar Lightning Cable M16 Circular Connector
Brand: all-electronics-online.com
SKU: 837206735
Availability: InStock
Rating: 4.5 (27 reviews)

Price:	US $ 4.5/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LP-16-C05PE-02-001; LP-16-J05SX-03-001

Product Description

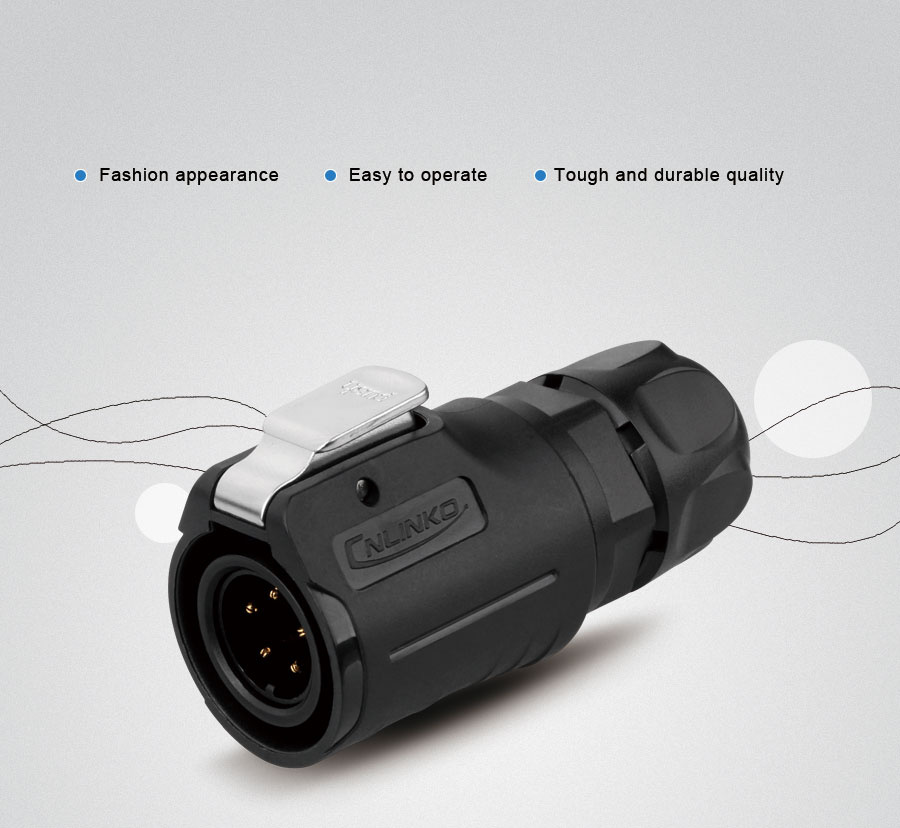

Plastic Shell IP67 Low Voltage Plugs 5 Pin Locking Male Female Solar Lightning Cable M16 Circular Connector

LP-16 type connector are high quality and high precious with highest quality performance under harsh situation,be widely used in lighting system,Audio,Medical equipment,industrial control and testing measurement equipment and so on.

Features:

multi-pins(2-9PINS) for varies industrial demands
Zinc alloy material against high frequency noise and electromagnetic interference
gold-plated contact, high performance of corrosion resistance and electrical conductivity effectively deal with temperature rise.
PBT shell performance stable, compression, anti-explosion and anti-deformation
rated current: 12A rms
protection level:IP65/IP67

Specifications
Connecting mode	Latching Lock connect
Protection level	IP67
Cable specification	0.15mm² ~ 0.2mm² /26~24AWG
Diameter range	Φ5.5mm ~Φ7mm
Contact diameter×Qty	Φ1.0×5
Current rating(A)	5A
Operating voltage(AC.V.rms)	400V
Withstand voltage(AC.V)1min	1500V
Contact resistance	<5mΩ
Insulation resistance	>500MΩ
Durability	≥500 mating&unmating cycles
Temperature rating	-40°C~80°C
Method of connecting cable	Solder
Prevent the combustion level	UL94-V0
Material
Shell&insulated parts	High performance engineering plastics
Hardware metal	Zinc alloy(pearl hard chromium)
Contact pin	Copper alloy(gold-plated)
Spring	Stainless steel
Sealing	Silica gel
Main characteristics

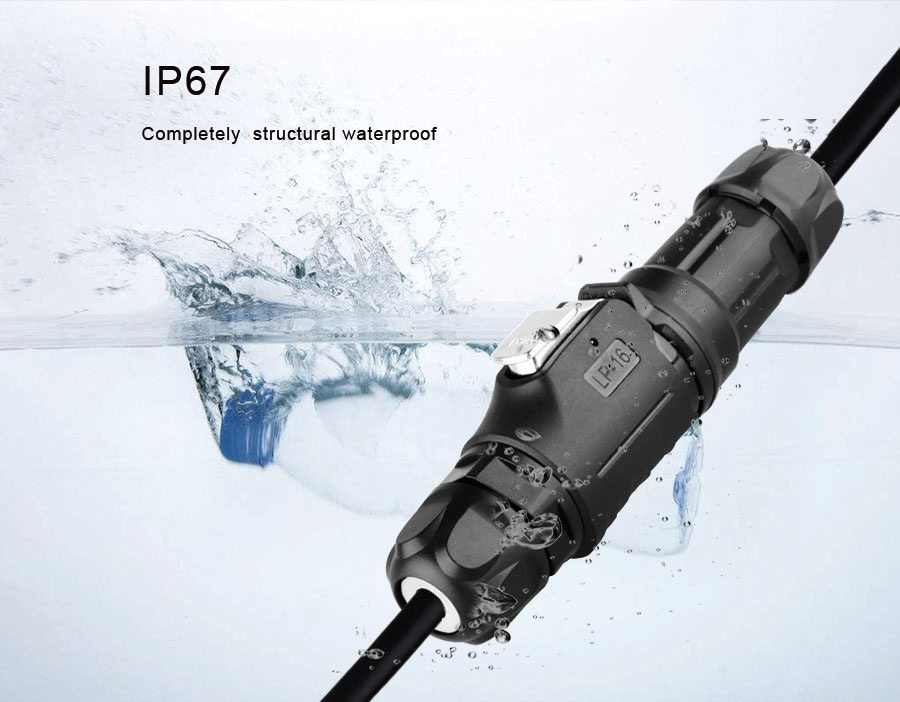

Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance

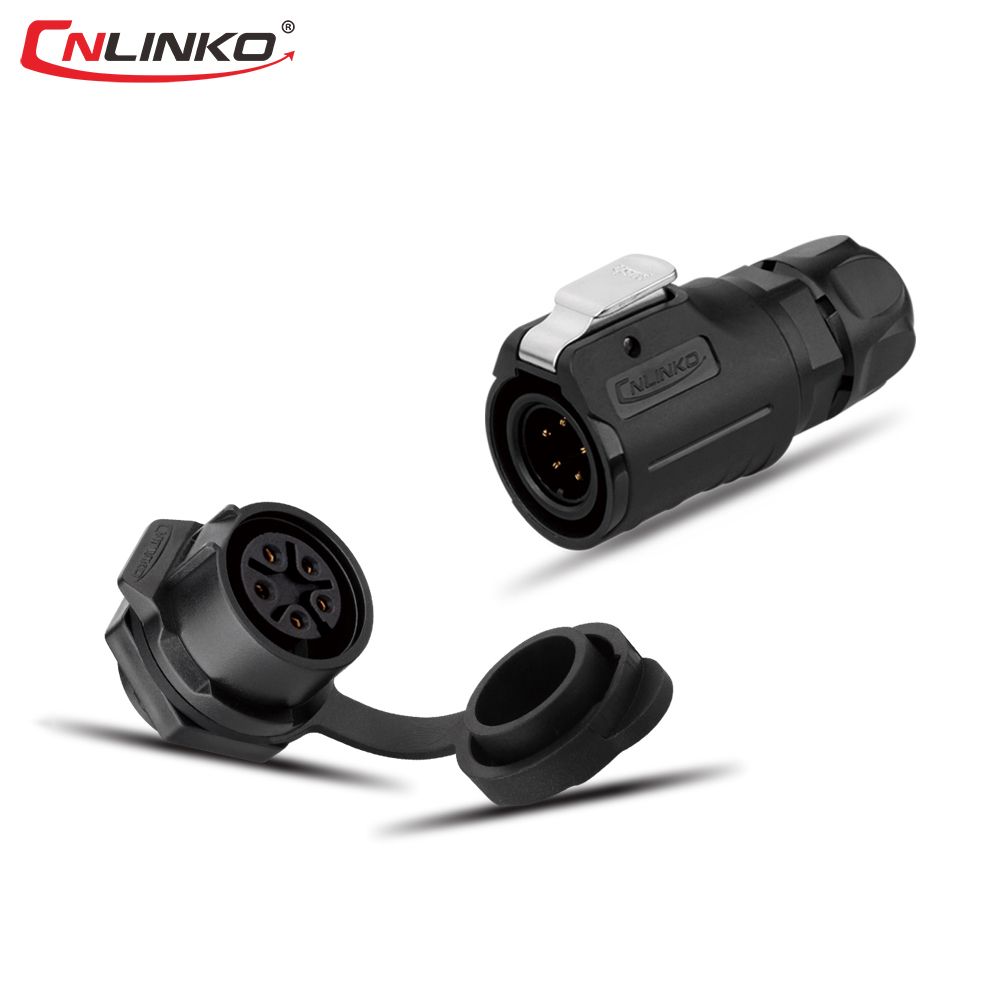

1/4 bayonet connect; socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery

Founded in 2004, Shenzhen Linko Electric Co., Ltd is a manufacturer in designing and manufacturing and marketing in the field of connectors.

We adhere to such principles"Integrity-base, quality-first, technological precedence&greater perfection. " After 10 years stabled developed, perfect management system was established, with creative, efficient, dedicated, rigorous R&D team, advanced production line.

Powerful product testing and quality testing laboratory and also covers dozens of professional files testing, excellent sales team and strong channels distribution net work.

Specializing in design high-performance industry connectors and approved by identification UL(E365869), CE, CCC, ISO9001-2008 and also with more than dozens of patents and international certifications.

We will always keep skills fresh and up-to data with international.

Cnlinko's products are widely used in variety of challenging enviroments, such as LED screen, LED lighting, Audio visual equipment, stage lighting, industrial automation equipment, heavy industrial equipment and the others.

Welcome to visit us and joint designing and develop new products, For the goal win-win cooperation and mutual benefit.
