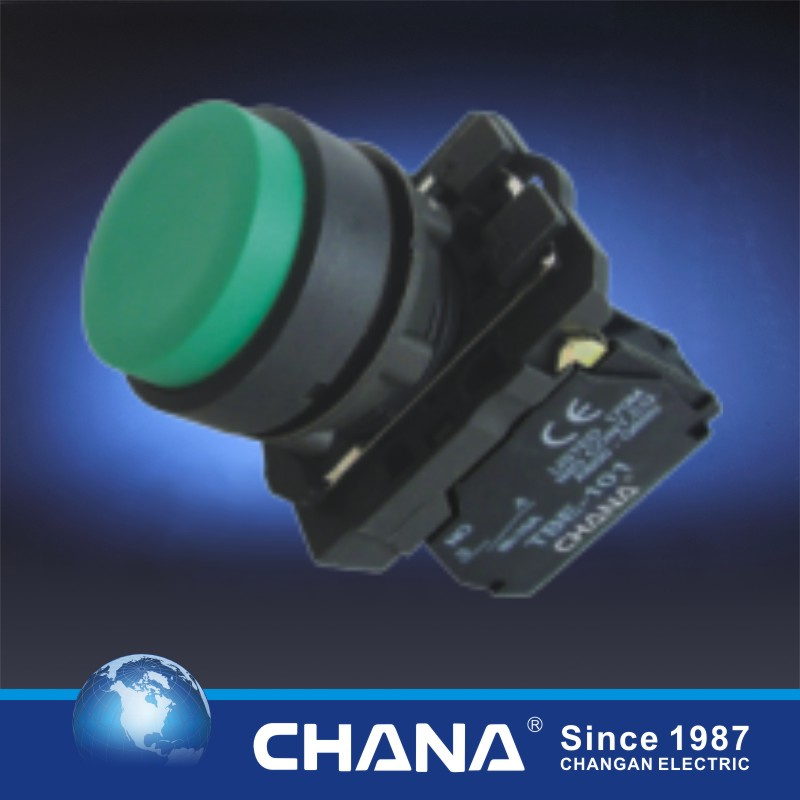

Plastic Type Protruding Pushbutton Switch

Prod Model:	CB5-AL21
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Diamater:	22mm
Colour:	Green
Approval:	CE
Material:	Plastic
Type:	Normal Close
Usage:	Check Button
Kind:	Single-pole on-off Switch
Brand:	Chana or OEM

Product Description

1. Application

CB* series pushbutton switches are used in industrial for controlling circuits of AC50HZ or 60Hz, rated operation voltage 380V or below and DC operational Voltage 220V or below for controlling in magnetic starter, contactor, relay and other electrical circuits. The butons indicators can also be used in the place with indicated light or signal. They meet with the standards: IEC 60947-5-1



2. Model:

CB5-AL11 N/O White
CB5-AL21 N/O Black
CB5-AL31 N/O Green
CB5-AL51 N/O Yellow
CB5-AL61 N/O Blue
CB5-AL42 N/C Red
CB5-AL25 N/O+N/C Black
CB5-AL35 N/O+N/C Green
CB5-AL45 N/O+N/C Red

Operation terperature: -5oC - +40oC	Power-frequency withstand voltage: 2500V, 1 min
Operation humidity: 45% - 85%	ELECTRIC durability: 50 x 104
Contact resistance: <=50mΩ	Degree of protection; IP40
Rated insulation voltage	Ui 660V
Conventional thermal current	Ith 10A
Rated operation voltage	Ue 380V, 220V, 110V, 48V, 24V
Rated operation current	AC-15  2.5A   4.5A    6A       8A       -
	DC-13   -         0.3A   0.6A    1.3A   2.5

3. Shipping:

1. Normally by SEA From NINGBO TO ...
2. Products are shipped via UPS / DHL / FedEx / TNT and so on expresses (door to door) If the amount is Small.
3. We Provide Drop shipping Service.
4. In order to ensure you receive your order tax free upon import, we can declare lower value according to your demand.
5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.



4. Payment:

1. We usually use T/T (30% deposit before production and 70% to be paid against the copy of B/L).
2.If the Amount is small,you can pay to us by western union/Paypal/Money Gram.
3. L/C also acceptable



5. Warranty:

1. We provide 18 months warranty.
2. If the product is defective, please notify us within 10 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods
