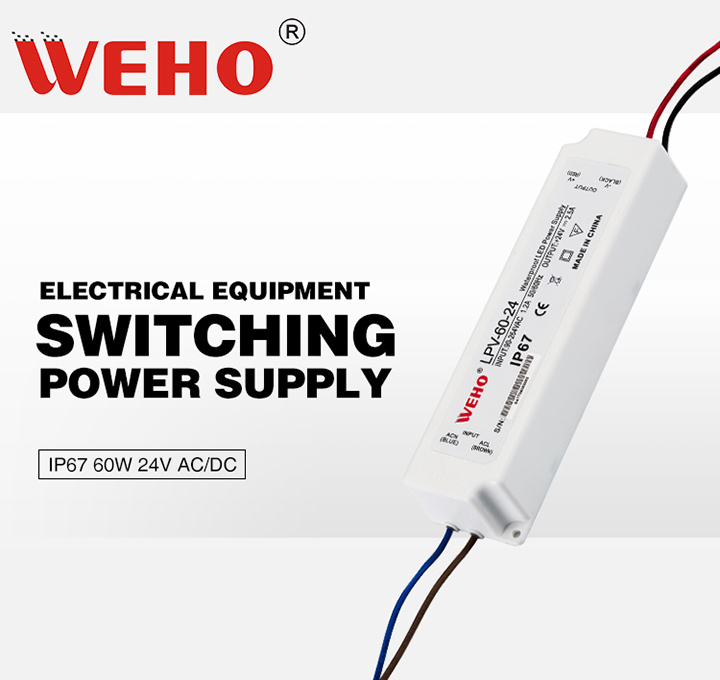

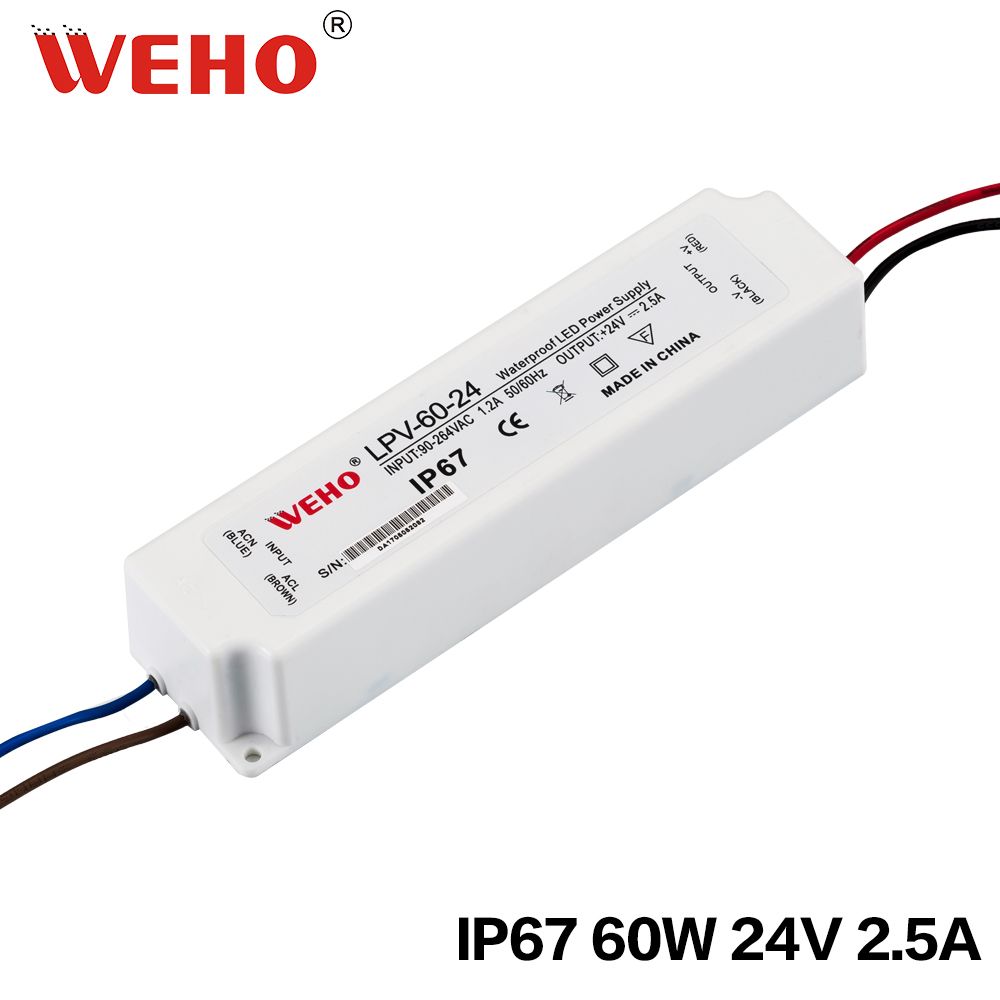

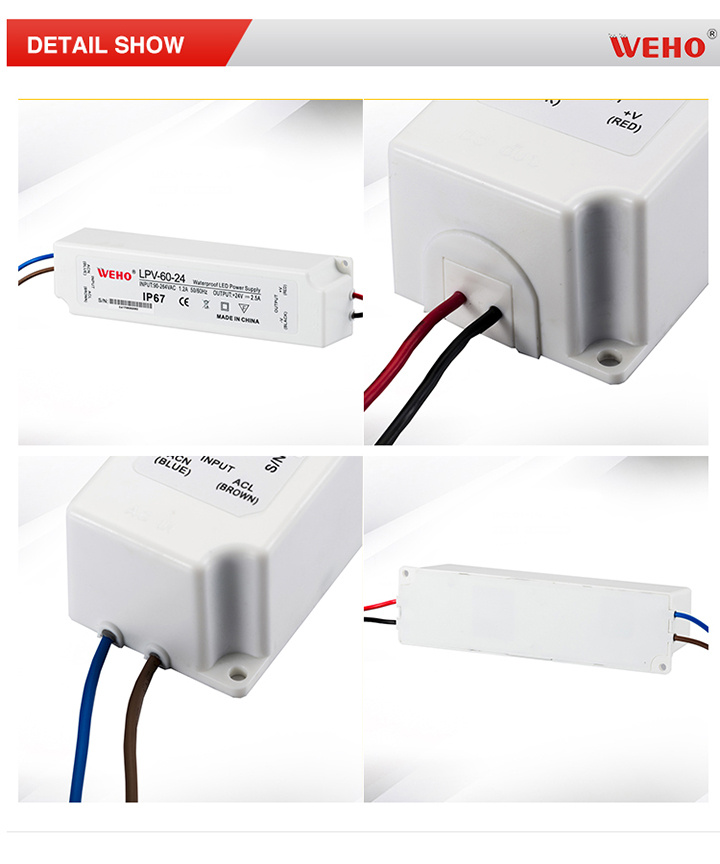

Plastic Waterproof LED Power Supply 24V 60W LED Driver
| Price: |
US $ 8.99-12.99/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
LPV-60-24E |
| IP Code: |
IP67 |
| Test: |
100% Full Load Burn-in Test |
| MOQ: |
1-5PCS Sample Order |
| Payments: |
T/T/Western Union/Paypal |
| Shipping: |
Sea Air DHL FedEx EMS UPS TNT |
| Material: |
Aluminium |
| Service: |
24hours on Line |
| Output Type: |
Single |
| Warranty: |
2 Years |
| Output Power: |
51 - 100W |
| Input Voltage: |
110-220V |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Separate-excited Switching Power Supply |
| Voltage Regulating Mode: |
Frequency Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
ISO |
| Brand: |
Weho |
Product Description
Plastic waterproof led power supply 24v 60w led driver| | MODEL | LPV-60-5E | LPV-60-12E | LPV-60-15E | LPV-60-24E | LPV-60-36E | LPV-60-48E |
| INPUT | DC VOLTAGE | 5V | 12V | 15V | 24V | 36V | 48V |
| RATED CURRENT | 8A | 5A | 4A | 2.5A | 1.67A | 1.25A |
| CURRENT RANGE | 0 ~ 8A | 0 ~ 5A | 0 ~ 4A | 0 ~ 2.5A | 0 ~ 1.67A | 0 ~ 1.25A |
| RATED POWER | 40W | 60W | 60W | 60W | 60W | 60W |
| RIPPLE & NOISE (max.) | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | 150mVp-p | 150mVp-p |
| VOLTAGE TOLERANCE | ±8.0% | ±5.0% |
| LINE REGULATION | ±1.0% |
| LOAD REGULATION | ±6.0% | ±2.0% |
| SETUP, RISE TIME | 500ms,20ms/230VAC 500ms,20ms/115VAC at full load(for 5-36V);500ms,30ms/230VAC 500ms,30ms/115VAC at full load (for 48V) |
| HOLD UP TIME (Typ.) | 50ms/230VAC 16ms/115VAC at full load |
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz |
| EFFICIENCY (Typ.) | 78% | 83% | 83% | 86% | 86% | 86% |
| AC CURRENT (Typ.) | 1.2A/115VAC 1A/230VAC |
| INRUSH CURRENT(Typ.) | COLD START 60A(twidth=525μs measured at 50% Ipeak) at 230VAC |
MAX. No. of PSUs on 16A
CIRCUIT BREAKER | 3 units (circuit breaker of type B) / 6 units
(circuit breaker of type C) at 230VAC |
| LEAKAGE CURRENT | 0.25mA / 240VAC |
| PROTECTION | OVERLOAD | 110 ~ 150% rated output power |
Protection type : Hiccup mode, recovers automatically
after fault condition is removed |
| OVER VOLTAGE | 5.75 ~ 6.75V | 13.8 ~ 16.2V | 17.25 ~20.25V | 27.6 ~ 32.4V | 41.4 ~ 48.6V | 55.2 ~ 64.8V |
Protection type : Shut down o/p voltage,
re-power on to recover |
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70ºC(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing |
| STORAGE TEMP., HUMIDITY | -40 ~ +80ºC, 10 ~ 95% RH |
| TEMP. COEFFICIENT | ±0.03%/ºC (0 ~ 50ºC) |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min.
each along X, Y, Z axes |
SAFETY &
EMC | SAFETY STANDARDS | IP67 approved; design refer to EN60950-1 |
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC |
| ISOLATION RESISTANCE | I/P-O/P:>100M Ohms / 500VDC / 25ºC/ 70% RH |
| EMC EMISSION | Compliance to EN55022 (CISPR22) Class B,
EN61000-3-2 Class A, EN61000-3-3 |
| EMC IMMUNITY | Compliance to EN55024, light industry level,criteria A |
| OTHERS | MTBF | 732Khrs min. MIL-HDBK-217F (25ºC) |
| DIMENSION | 162.5*42.5*32mm (L*W*H) |
| PACKING | 0.4Kg; 32pcs/13.8Kg/0.56CUFT |
With 10 years OEM experience, we can provide professional solutions for customers. Send your Inquiry Details Now!!!
Zhejiang Weihao electronic Co., Ltd is located in "Chinese Electrical Capital"-Liushi Town, it is a high-tech enterprise, specializing in research, development and production of AC/DC DC/DC series switching power supply, adapter and AC stabilizer, frequency inverter, etc.
Our products are widely used in LED system, postal service, comunication system, power system, instrument and meter equipements, semiconductor refrigeration and heating system, medical equipments, monitorand automatic control system and railway system. etc. Our design is on basis of UL1012 TUVE60950, EMC LVD. VL1950, IEC950 and so on. The first-class imported components, advanced workmanshipand the consummation instruments achieved high quality products. All of them have past 100% high-temperature and full-load testing, the qualified rate can come to 99% and 3% repair rate.
We sticks to the principle of "Quality first Technology Advanced and providing ssatisfactory product and service " we also draw high attentionto demand of customers and provide high quality products.
The products are sold to oversesas market like America, Austrilia, Europe and MID-east etc.
Warmly welcome both of domestic and overseas customers to visit, negotiate and cooperate with us
