Plate Ring S Beam Weighing Sensor with Capacities From 10t to 30t

Name: Plate Ring S Beam Weighing Sensor with Capacities From 10t to 30t
Brand: all-electronics-online.com
SKU: 681045841
Availability: InStock
Rating: 4.3 (133 reviews)

Price:	US $ 35-40/Piece
Trade Terms:	FOB,CIF,CIP
Min Order:	2/Piece
Pay Type:	T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QH-33
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacity:	10t to 30t
Safe Overload:	%Fs 150
Excitation Voltage:	9 ~ 12 VDC
Cable Length:	3 M
Material:	Alloy Steel

Product Description

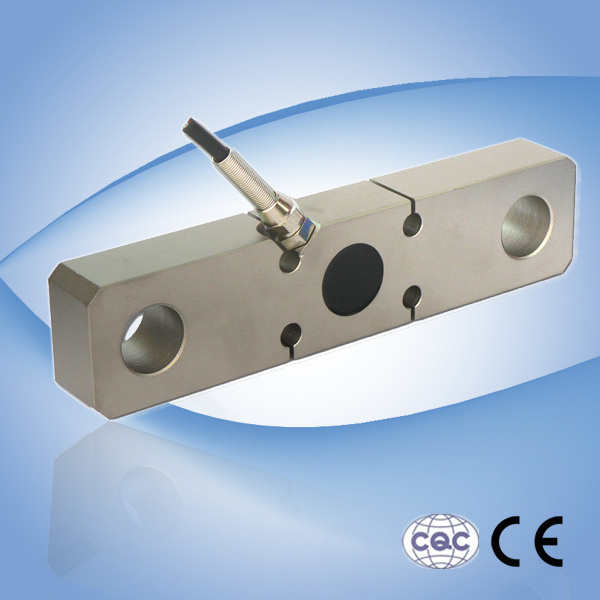

Plate Ring S Beam Weighing Sensor with Capacities from 10t to 30t

Products Details:

QH-33 load cells are available in the capacities from 10t to 30t.
Alloy steel material with S beam style. Silicon adhesive sealed inside, waterproof, anti-corrosion and suitable for all kinds of environment.
Plate ring type structure design.Tension and/or compression loading. Suitable for eletronic crane scale and other electronic weighing devices.

Features:
Capacity :10t to 30t
Defend grade: IP67
High accuracy,reliable performance;
Plate ring type structure design,
and easy installation.

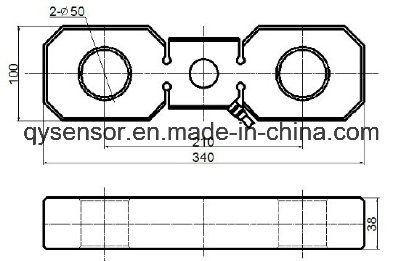

Electrical connection and Dimensions:

Technical Specifications:

Technical Specifications

Specifications:
capacity	t	10 ~30
safe overload	%FS	150
ultimate overload	%FS	200
rated output	mV/V	1.5 ± 0.01
excitation voltage	Vdc	9~ 12
combined error	%FS	± 0.03
zero unbalance	%FS	± 1
non-linearity	%FS	± 0.03
hysteresis	%FS	± 0.03
repeatability	%FS	± 0.02
creep	%FS/30min	± 0.03
input resistance	Ω	350 ± 10
output resistance	Ω	350 ± 3
insulation resistance	M Ω	≥ 5000 @ 100 Vdc
operating temperature range	°C	-20 ~ +60
compensated temperature range	°C	-10 ~ +40
temperature coefficient of SPAN	%FS/10°C	± 0.03
temperature coefficient of ZERO	%FS/10°C	± 0.03

Electrical connection:

Excitation+ red Excitation- black Signal+ green Signal- white
Four-core shielded cable with polyethylene.
Cable diameter:5mm
Cable length:3 m

The cable length could be chose by customer's application.

Ordering code: model(QH-alloy steel,QB-stainless steel)-range- rated output-accuracy-defend grade- the length of cable

Example: QH-33-20t-1.5mV/V-0.03%FS-IP67-3m
