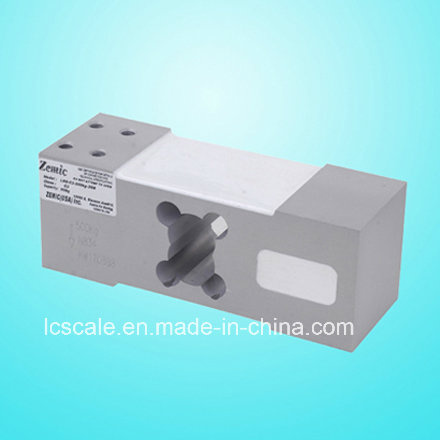

Platform Scale Load Cell (ZEMIC L6G)

Name: Platform Scale Load Cell (ZEMIC L6G)
Brand: all-electronics-online.com
SKU: 651578285
Availability: InStock
Rating: 4.3 (121 reviews)

Price:	US $ 22/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	ZEMIC L6G
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
174mm Size:	50kg-600kg Capacity

Product Description

Loadcell ( ZEMIC L6G ) Capacity: 50kg-600kg
Specifications
1.Capacity:50kg to 600kg . Suit for 600x600mm platform
2.High accuracy, C3.
3.Alumium construction
4.With OIML approval.
High accuracy.
Max. platform size:600x600mm.
Intergral installation.
With OIML approval
1. L6G load cells are available in the capacities 50kg to 600kg.
2. Alumium construction with parallel beam.
3. Silicon adhesive sealed, surface anodized and anti-corrosion.
4. Intergral structure and easy installation.
5. Suitable for pricing scales, platform scales and other electronic weighing devices.
Specifications

Capacity	kg	50/100/150/200/250/300/500/600
Accuracy		C3D	C3	C3G
Approvals			OIML R60 C3
Maximum numberof verification intervals	n max	2500	3000	4000
Minimum load cell verification interval	v min	Emax/5000	Emax/7000	Emax/11000
Combined error	(%FS)	≤±0.030	≤±0.020	≤±0.015
Creep	(%FS/30min)	≤±0.020	≤±0.0167	≤±0.0125
Temperature effect on sensitivity	(%FS/10°C)	≤±0.021	≤±0.0175	≤±0.0131
Temperature effect on zero	(%FS/10°C)	≤±0.028	≤±0.020	≤±0.0127
Output sensitivity	(mv/v)	2.0±0.2
Input resistance	(Ω)	406±6/1065±15
Output resistance	(Ω)	350±3/1000±10
Insulation resistance	(MΩ)	≥5000(50VDC)
Zero balance	(%FS)	2
Temperature,compensated	(°C)	-10~+40
Temperature,operating	(°C)	-35~+65
Excitation,Recommended	(V)	5~12(DC)
Excitation,Max	(V)	18(DC)
Safe overload	(%FS)	150
Ultimate overload	(%FS)	300
Corner correction		0.02% load value/100mm
