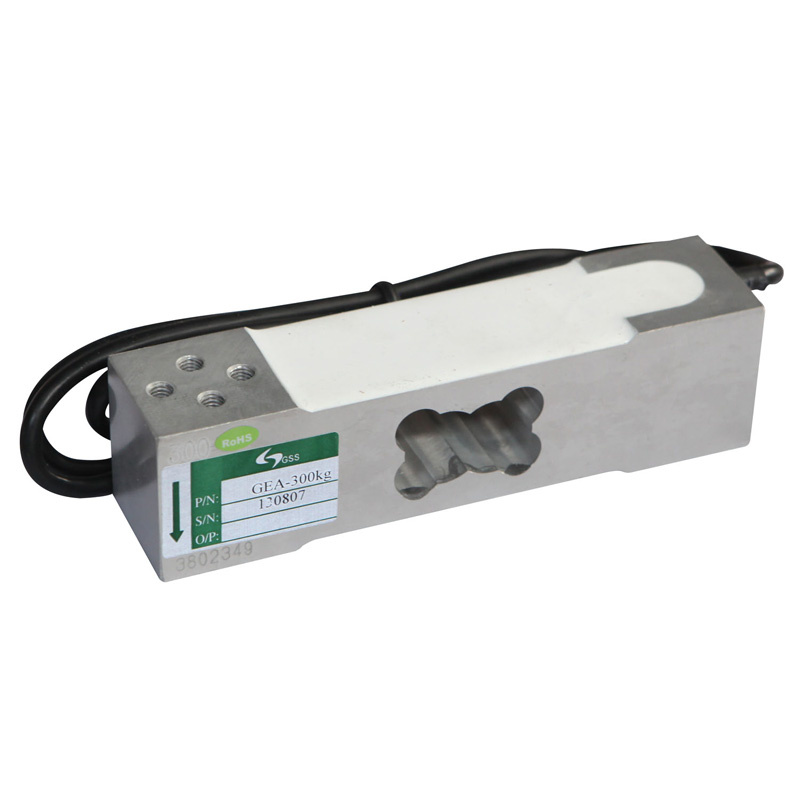

Platform Scale Load Cell

Name: Platform Scale Load Cell
Brand: all-electronics-online.com
SKU: 693567552
Availability: InStock
Rating: 4.4 (26 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GEA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pattern:	Single Point Load Cell
Out-Wire:	2m
Material:	Aluminum Alloy

Product Description

Load cell for Platform scale
Rated Capacities60, 100, 150, 200, 250, 300, 350, 500(kg)
Rated Output2.0 mV/V± 5%
Non-linearity0.02% R. O.
Hysteresis0.02% R. O.
Repeatability0.02% R. O.
Creep(30min)0.02% R. O.
Temperature Effect On Output0.002%R. O. /º C
Temperature Effect On Zero0.003%R. O. /º C
Zero Balance± 0.0200 mV/V
Input Impedance390± 15 Ω ; 410± 15 Ω
Output Impedance350± 5 Ω
Insulation Impedance≥ 5000MΩ /(50VDC)
Safe Overload150% R. O.
Ultimate Overload200% R. O.
Operating Temperature Range-20~60 º C
Recommended Excitation5~12 VDC
Maximum Excitation15 VDC
ConstructionAluminum Alloy; Steel Alloy
Protection ClassIP66 / IP67
Cableφ 5× 1.5 m
Platform Size350× 450 mm
Mode of ConnectionRed(EXC+), Black(EXC-), Green(SIG+), White(SIG-)
