Plating Nickel and Clamp Male SMA RF Connector

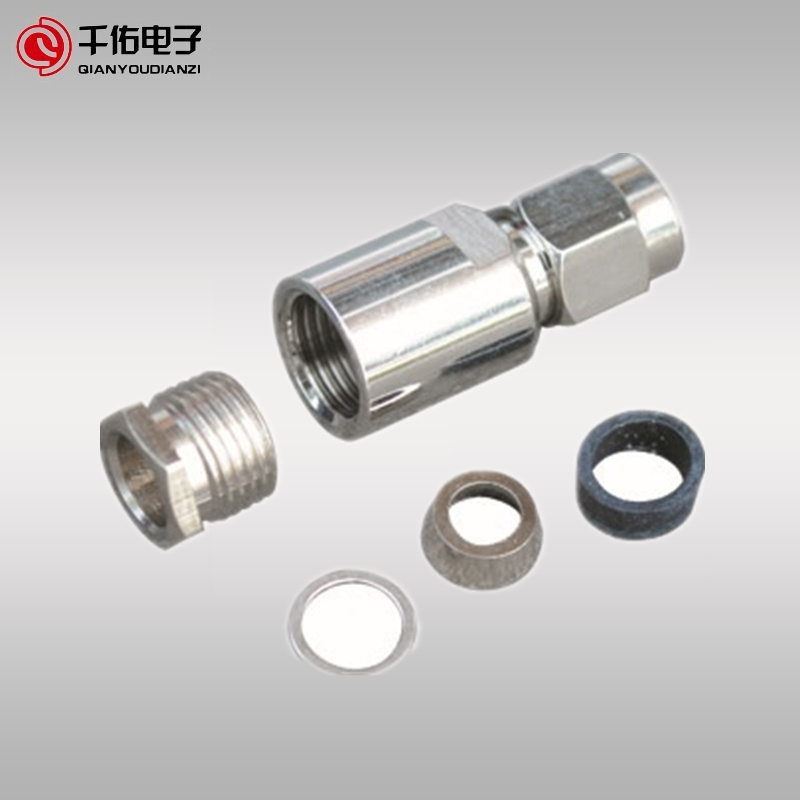

Name: Plating Nickel and Clamp Male SMA RF Connector
Brand: all-electronics-online.com
SKU: 822743245
Availability: InStock
Rating: 4.3 (124 reviews)

Price:	US $ 0.35-0.4/Piece
Min Order:	500/Piece
Pay Type:	T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	SMA-C-K
Frequency Range:	DC~6GHz
Salty Test:	24h
Material:	Brass
Plating:	Nickel
Type:	Generally Coaxial Connector
Coupling Mechanism:	Threaded Connection
Application:	RF Connector
Medium Pressure:	1000V RMS
Brand:	Qianyou

Product Description

Temp.range	-40~+150°C
Impedance	50Ω
Frequency Range	DC~6GHz
Working Voltage	335V max
Withstand Voltage	1000V rms
Center Contact	≤ 3 mΩ
Outer Contact	≤ 2 mΩ
Insulation resistance	≥ 5000 MΩ
Inturn Loss	≤ 0.3dB
Salty Test	24h
Durability(mating)	≥500times
Material	brass
Plating	nickel
Inner conductor	brass
Insulator	PTFE
Applicable Standard	IEC 60169-15

Yangzhou Qianyou Electronics Co., Ltd. Specilized in producing kinds of RF connector with high quality and favorable price, such as N connector, F connector, SMA connector, BNC connector, TNC connector, etc.

Our company well saled in most areas of China, for more than 20 years has resulted in a great reputation from our customers.

We're pleased to get your Inquiry and we will reply you as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.

Welcome to establish a good business relationship.
