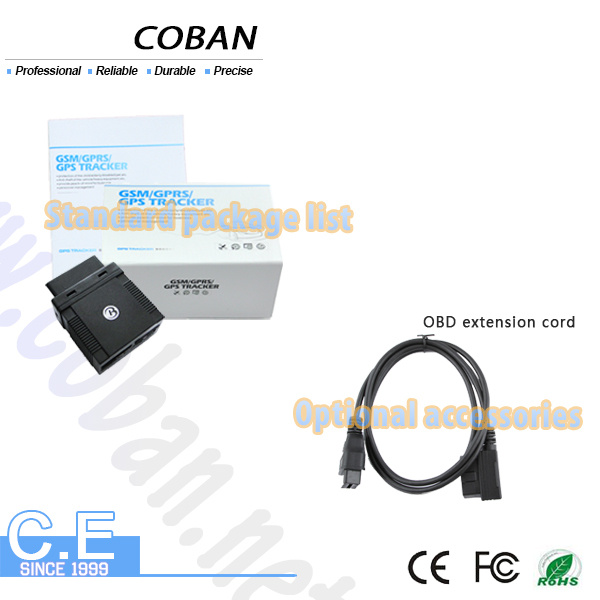

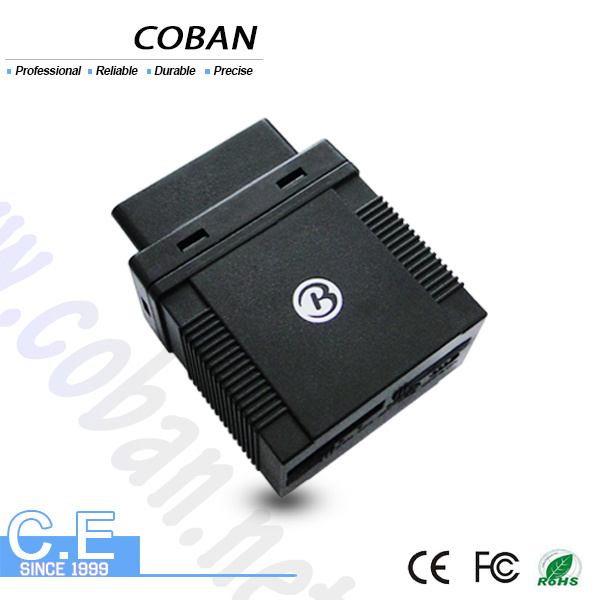

Play-and-Plug OBD II GPS Tracker with Backup Battery GPS 306A

Play-and-Plug OBD II GPS Tracker with Backup Battery GPS 306A
Price: US $ 34.50-43.00/Piece
Trade Terms: FOB,EXW
Min Order: 1/Piece
Pay Type: T/T,Money Gram,Western Union
Prod Model: GPS306A
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Weight: 60g
Warranty Time: 1 Year
Certificate: CE, FCC
Size: 64.5*50*27mm
Battery: Chargeable Changeable 3.7V 200mAh Polymer Li-Bat
Network: 850/900/1800/1900MHz
GPS Sensitivity: -165dBm
GPS Accuracy: 5m
GPS Module: Ns1315
GSM Module: CB900
Type: GPS Tracker
Use: Automotive
Operating Principle: Interferometric Type
Port Number: Multiplex Multi-purpose Channel
Model: Integration Type
Carrier Frequency: Dual-Frequency
Chip: SiRF
Screen Size: No Screen
Brand: Coban
Certification: ISO9001

Product Description

Model : GPS306

Mainly used for vehicle management and location tracking services.

Main features:
1. Vehicle OBD II tracker (9-40V)
2. Location based service(LBS) + GPS double real time tracking solution
Monitor
3. SOS panic button
4. Geofence, movement, overspeed alarms. Low battery, ext. Power off alarm.
5. Alarms under ARM: Shock/ACC alarms.
6. Request for OBD data by SMS:
Fuel measurement
Fuel consumption
Mileage
Speed
Engine status
Diagnostic Trouble Codes, etc
7. Troube and maintenance notification
8. Multi power-saving mode:
Sleep by time / shock sensor
Deep sleep
Awake at specific time
9. Save GPRS traffic mode
10. Built-in memory for 16, 000 positions
11. Built-in 200 mA polymer battery
12. SMS tracking on cell phone with google map link
13. Absolute street address by SMS
14. Web server, free PC tracking soft, Mobile phone APP

ContentSpecification

DIM
64.5 × 50 × 27mm

Weight
60g

Network
GSM/GPRS

Band
850/900/1800/1900Mhz

GPS Sensitivity
-165dBm

GPS Accuracy
5m

GPS Start Time
Cold status 30s
Warm status 11s
Hot status 1s

Backup Battery
Chargeable changeable 3.7V  200mAh Polymer Li-Battery

Storage Temp.
-40°C to +85°C

Operation Temp.
-20°C to +70°C

Humidity
5%--95% non-condensing

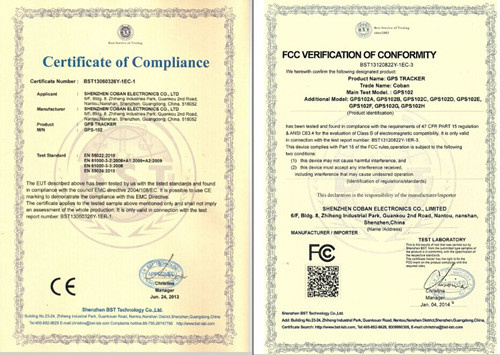

CE certification:




Shenzhen Coban Electronics Co., Ltd is a private export-oriented enterprise founded in 1999, 90% of the products are exported, and we have many years of research and development, production and management experience in automotive electronics, security products, wireless communications terminal equipment, and other fields.

As a high-tech enterprises, we have a strict management system, and have obtained the authentication of CCC, CE, FCC and UL ISO9001, etc. So far, our products have been well marketed in 107 countries and regions in the world. Our company has set up research and development centers, including GPS R & D department, GSM R & D department and system integration Department. All the products are developed independtly and obtained a number of national patents. So the professional R D team, efficient production team provide good foundation with high-quality products. Quality has always been part of the company's most stressed. Before all the products entering the market, they have been tested rigorously such as high and low temperature aging test, vibration test, the noise tests, audio and video indicators decomposition tests.

Our company specialized in GPS tracker, car anti-theft alarm system.

Except the advantage of abundant in human resources, since we count on long standing business relationships, we deserves wide range of cooperation with the well-known Chinese and foreign high-tech companies and service in the long term. In order to meet the developing of the markt, our aim is to transform the latest and the best research fruit into productive quickly, develope science and technology, serve the society.
