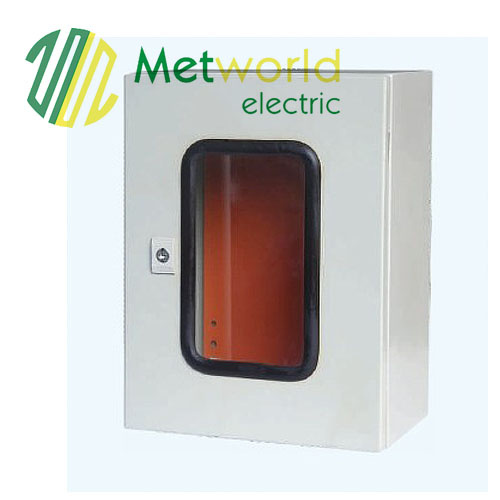

Plexiglass Door Distribution Box/Stainless Steel Distribution Box

Prod Model:	EMEP3 420, EMEP4 420, EMEP3 520, EMEP4 520, etc.
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dimension:	Customized
Degree Of Protection:	IP55,66
Material:	Plexiglass,Steel
H*W*D:	Choose
Drawing:	Catelog Reference
Series:	Mep,Mes
Color:	Ral7032
Body And Front Door:	AISI304 or Alsi316 Stainless Steel
Paint Finish:	Coating Textured Finish
System:	with Lock ,Without Lock
Type:	Distribution Metering Box
Structure:	Protection
Size:	Customized
Brand:	Seten

Product Description

We supply all kinds of distribution boxes.Best quality,best service with competive price.Let's work together brotherly and be successful in electric materials all over the world.

1. Matterial: Sheet steel
2. Paint finish: Both externally and internally
3. Protected with epoxy polyester coating
4. Textured finish RAL7032 or RAL7035
5. Mounting plate: Powder coated similar to RAL2000 or galvanized
6. IP rate: IP65
7. Certificate: CE, RoHS
8. Supply include: Enclosure door, mounting plate, gland plate sealing gasket


IP65 Steel DISTRIBUTION BOARD
Product Features of wall mounted box
1.Using: wall mounted box is mainly suitable for indoor and outdoor electrical, communications, fire fighting equipment, iron and steel smelting, petrochemical, electronics, electricity, railways, construction sites, mines, mining, airports, hotels, ships, large factories, coastal plants, loading dock equipment, sewage and waste treatment facilities, environmental hazards facilities.
2.Material: wall mounted box with new material selection, quality cold roll steel , or can be requested by the customer to the first Optional materials can be customized stainless steel or zinc steel
3.IP65

Product Construction of wall mounted box

-Back and side panels manufactured in 1.5mm sheet steel.
-Mounting plate manufactured in 2.5mm sheet steel.
-Door Manufactured in 2mm sheet steel with reinforcing frame. Finish: standard cycle thermosetting epoxypolyester powder coating.
-Structure, door RAL 7032 textured finish.
-Mounting plate: RAL 2004 smooth finish(Also available for zinc coated)
-Protection degree: IP 65 to EN60 529 NEMA 12. Supply include:
-Back and side panels(structure)
-Mounting plate. (Also available without mounting plate)
-4 Mounting plate suppots.
-Front door with reinforcing frame with 4 hinges a 4 point locking system.
-Cable gland plate supplied
-4 Lifting eyebolts


model	H(mm)	W(mm)	D(mm)
EMEP3 420	400	300	200
