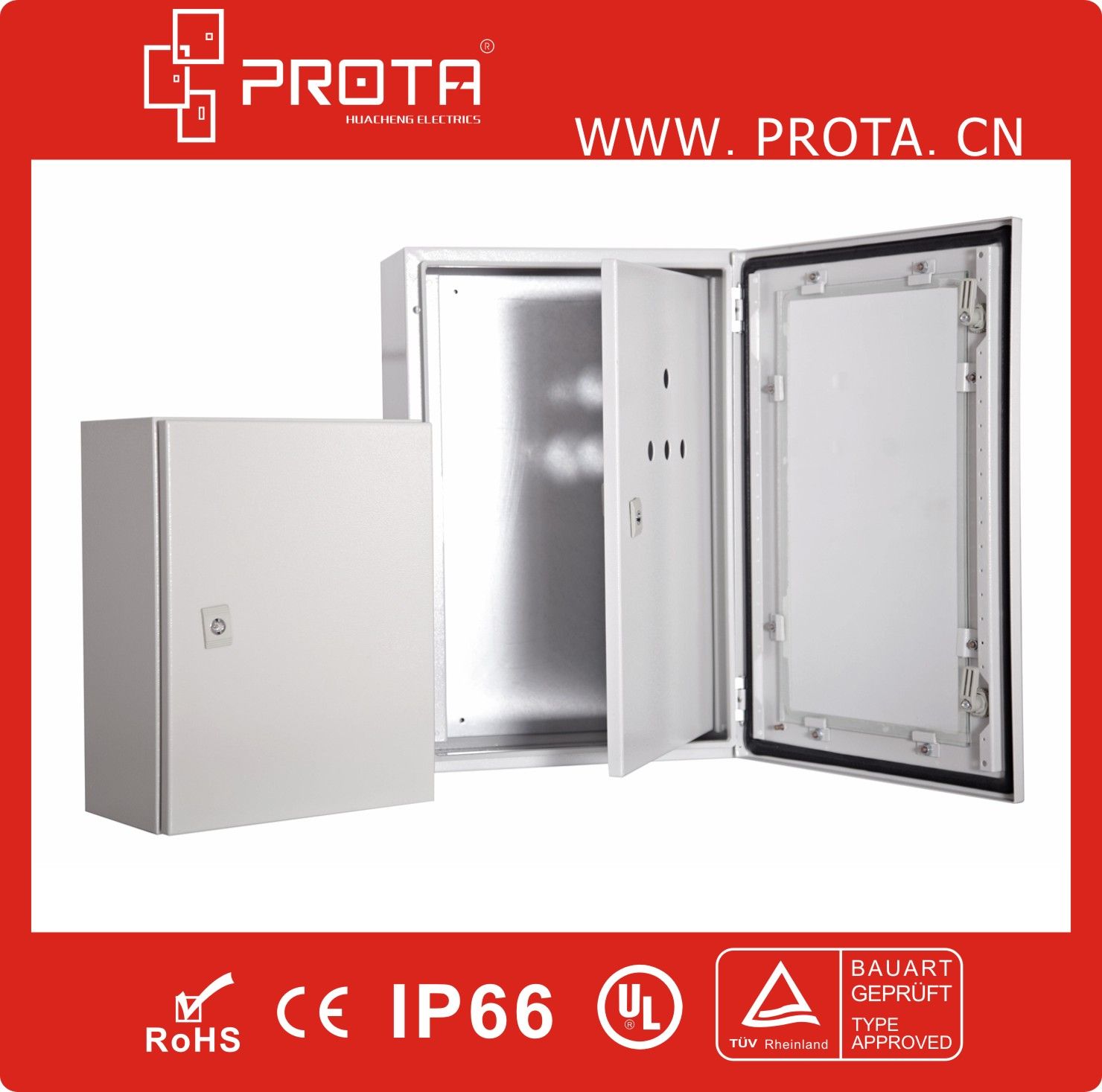

Plexiglass&Inner Door Wall Mount Distribution Box Ik10 IP66

Prod Model:	PTIP
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Finish:	Textured Powder-Coated, Gloss Coating
Material:	Cold Rolling Steel, 304AISI/316L Stainless Steel
Type:	Distribution Metering Box
Structure:	Protection
Certification:	ISO9001:2008,RoHS
Size:	Ptip2215~Ptip9630
Application Range:	Electrical Distribution
Shell Protection Grade:	IP66

Product Description

Standard Configuration
1,Standard configuration: enclosure, inner door with lock system , outer door with plexiglass and locking system, galvanized mounting plate, gland plate, sealing gasket and fixing accessories.
2,Material and thickness: cold-rolled sheet steel
Door: 1.2mm or 1.5mm
Body: 1.2mm or 1.5mm
Mounting plate: 1.5mm or 2.0mm
When the enclosure is less than 800mm high, body and door is 1.2mm THK, mounting plate is 1.5mm THK; if over 800mm high, body and door is 1.5mm THK, mounting plate is 2.0mm THK.
3,Surface: epoxy thermosetting powder coating, textured finish
4,Color: RAL 7032, RAL 7035
5,protection degree: IP 66

Craftsmanship Feature
1,There are strengthening strips with pilot holes is welded to both  sides of the door by using the self-tapping M4 screws for the convenient installation (If the enclosure higher than 600mm)
2,The foam PU sealing gasket inside the door.
3,The door can be opened 130°by the plugging hinges
4,The slots design of the enclosure prevents dust and water entering into the enclosures plus the good coordination with foam sealing gasket, which supply a good protection of the enclosure.
5,There are 4 hanging holes in the back of the enclosure, which is very convenient for installation by the wall mounting brackets.
6,The door can be switched by both left and right side.

Selection Table

Model No.	H(mm)	W(mm)	D(mm)
PTIP2215	200	200	150
PTIP3215	300	200	150
PTIP3315	300	300	150
PTIP4315	400	300	100
PTIP5315	500	300	150
PTIP5415	500	400	150
PTIP6415	600	400	150
PTIP6515	600	500	150
PTIP32520	300	250	200
PTIP3320	300	300	200
PTIP4420	400	400	200
PTIP5520	500	500	200
PTIP6620	600	600	200
PTIP7620	700	600	200
PTIP8620	800	600	200
PTIP8820	800	800	200
PTIP32525	300	250	250
PTIP4325	400	300	250
PTIP5325	500	300	250
PTIP5425	500	400	250
PTIP6425	600	400	250
PTIP7525	700	500	250
PTIP8625	800	600	250
PTIP9625	900	600	250
PTIP10825	1000	800	250
PTIP4330	400	300	300
PTIP5530	500	500	300
PTIP6430	600	400	300
PTIP7630	700	600	300
PTIP8630	800	600	300
PTIP9630	900	600	300
