Dongguan Blueuniverse Laser Co., Ltd. >> Plt510 Osram Green 520nm 5MW 10MW Laser Diode

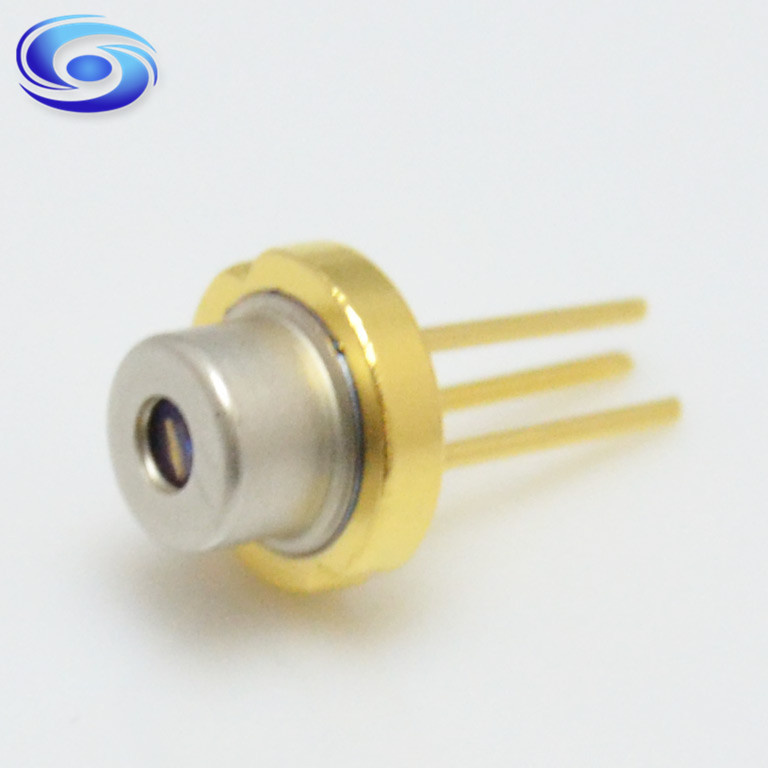

Plt510 Osram Green 520nm 5MW 10MW Laser Diode

Plt510 Osram Green 520nm 5MW 10MW Laser Diode
Price: US $ 12-15/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: PLT510
Wavelength: 520nm
Output Power: 10MW
Color: Green
Operation Current: 80mA
Operation Voltage: 6V
Storage Temperature: -40 to +85 Degree
Operation Temperature: -20 to + 60 Degree
Quality: Brand New
Lifetime: 10, 000hours
Price: Lower Price

Product Description

Specification:
Wavelength: 520nm
Output Power(CW): 10mw
Multi Transverse Mode
Can Type: 5.6mm Floating Mounted
TO18-5.6mm Osram 520nm 10mw laser diode

Absolute Maximum Ratings (Tc=25ºC)

Parameter
SymbolValues  Unit
Min.Max.
Operating CurrentIf-120mA
Reverse VoltageVr-2V
Operating Case TemperatureTc-20+60ºC
Storage TemperatureTstg-40+85ºC
Soldering Temperature max. 10 sec.Tsolder-260ºC
Junction temperatureT-120ºC

Electrical and Optical Characteristics (Tc=25ºC)

Parameter
SymbolMin.Typ.Max.Unit
Optical Output PowerPo-10-mw
Emission Wavelengthλp510515530nm
Threshold CurrentIth-5075mA
Operating CurrentIr-60100mA
Operating VoltageVop-5.47.0V
Beam Divergence (FWHM)Θ//×Θ⊥4×187×2311×26deg
PolarizationPgr20:1--

Modulation Frequencyf->100-MHz
Thermal resistance (junction to case)Rth-34-K/W

2.Packing and Delivery for 520nm 10mw laser diode
Packing for 520nm 10mw laser diode:
1.100 pieces/box, 10 boxes /carton.
2. Plastic box package ,TO18-5.6mm package.
3. It based on the laser diode kind, each kind has different size.


Delivery for 520nm 10mw laser diode:
delivery time:1~3 days
delivery way:DHL,Fedex,UPS or other way as your demand.

3.Appliceation for 520nm 10mw laser diode:
Laser Module
Industrial Use
Lase Pointer
Burn Laser
Staging Light

                                         Welcome Your Inquiry
                                            TO: TracyDing
                                      Mob: +86 13532504883


                                    Dongguan BU Laser Co.,Ltd

4. FAQ for 520nm 10mw laser diode:
1)Q: Where is your company located? How can I visit there?
  A:Our company is located in Dongguan, China. All our clients, from home or
abroad, are warmly welcome to visit us!

2)Q: Can I order samples of 520nm 10mw laser diode first to test the qualty?
  A: Yes, samples ae in stock for you.

3)Q: How to pay for 520nm 10mw laser diode?
  A: We accept T/T, Paypal, Western union, Moneygram, If you use other
payment terms, please feel free to contact us!

4)Q: Have you other laser diode?
   A: Expect 520nm 10mw laser diode, we offer 405nm  to 980nm laser diode and laser module.
Dongguan Blueuniverse Laser Co., Ltd. Was started in 2006, and established in 2015, the company is located in Dongkeng Town, Dongguan, Guangdong Province. Which is a collection of research, produce, sales photoelectric enterprise. We specialize in semiconductor laser diodes, laser light source, LED light source as the center and we are still continuously researching and developing the laser peripheral areas.

Main products are included below but not limited:

Semiconductor laser diode, laser module, bicycle rear light, head light, bicycle wheel light, laser fog light, laser power bank.

Since 2006, our company has owned a number of excellent engineers, management department and well-trained staff. According to the modern enterprise management, we have perfect quality testing, monitoring, tracking and feedback system and put scientific management into effect. Further more, we also pursue ISO9001 international quality system, according to the international standard management. Our products also have all kinds of export certification and a number of patent.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in sterilization, physical therapy, stage, measurement, advertisement, outdoor ridding and other industries.

We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!

We devote ourselves to developing good quality products, and supplying better products and services. Our strategy for successes is to follow the advanced and the latest technologies all the time and to make contribution to the optical enterprise.
