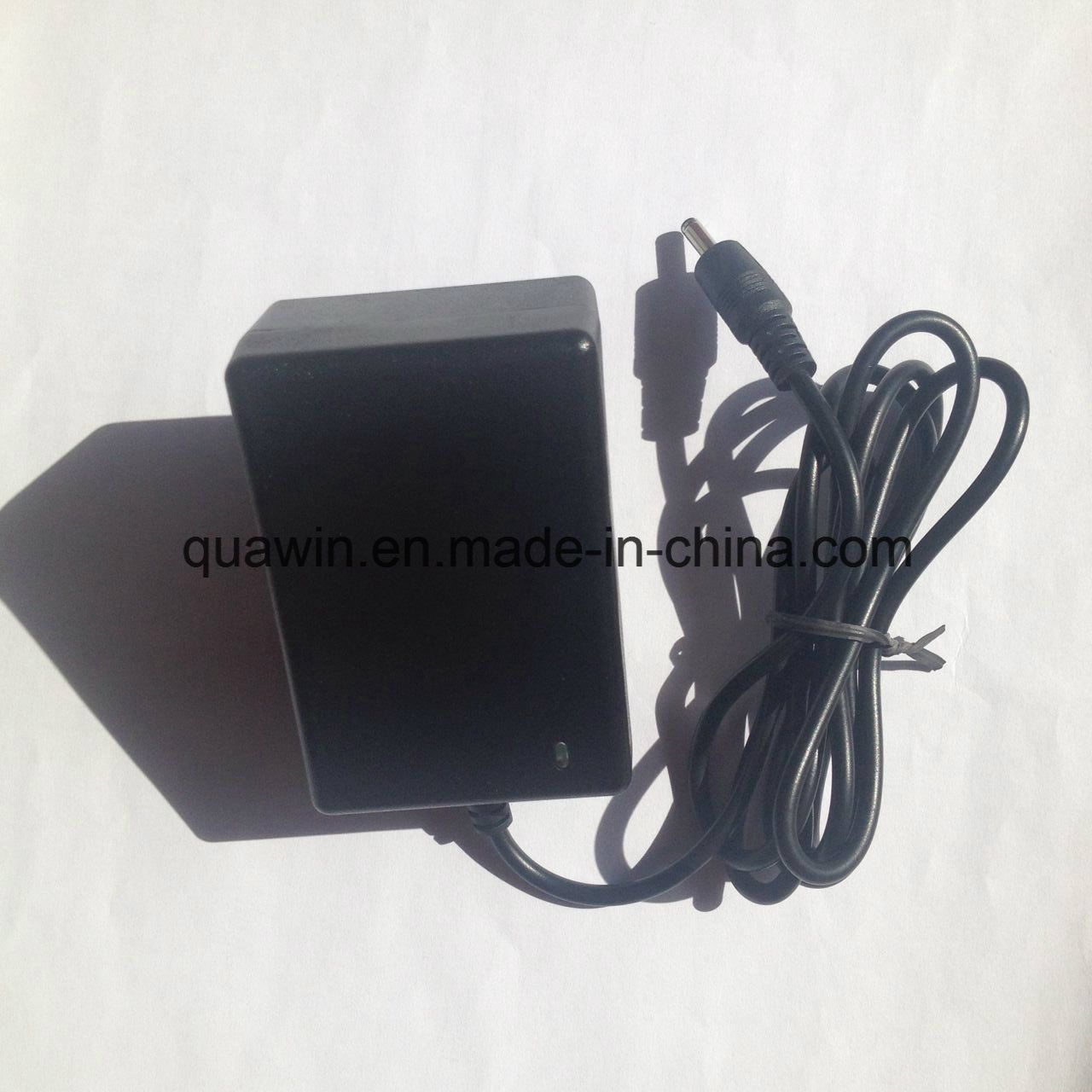

Plug-in Charger 8.4V 2A for 2s 7.4V Lithium Battery Pack

Name: Plug-in Charger 8.4V 2A for 2s 7.4V Lithium Battery Pack
Brand: all-electronics-online.com
SKU: 799101655
Availability: InStock
Rating: 4.3 (112 reviews)

Price:	Negotiable/Piece
Min Order:	200/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QW074-020-L
Input Voltage:	AC100-240V 50/60Hz
Plug-in Type:	Yes
Voltage:	8.4V
Current:	2A
Delivery Date:	15days
Warranty:	One Year
Type:	Lithium Battery
Charger Type:	Electric Charger
Nominal Voltage:	8.4V

Product Description

8.4V 2A Lithium Battery Charger

Input : AC 110~240V 50/60HZ
Output : DC 8.4V 2A li-ion/lipo charger
Cable length: 1~1.5 M
Plug type: EU plug or US plug or AU plug or UK plug or Japanese plug or Korea plug for choice,so charging Cable will suitable your country.
Output Connector: 5.5x2.5mm or 5.5x2.1mm or 3.5x1.35mm or USB or MiniUSB or MicroUSB or other

Charging Mode: CC-CV(Constant Current-Constant Voltage)
Or CC-CV-TC(Constant Current-Constant Voltage -Trickle Charging)
LED Display: Red-In charging state, Green-Full Charged
Efficiency:>=85%
Safety Protection: Short-cuirt Protection,
Over-current protection,
Over-voltage protection,
Reversal Protection

Application:
lipo charger 8.4v2a for Battery pack,
LED Torch Flashlight,
LED lamps,
Electric Bicycle,
Mechanical equipment,
Portable Electric Device,
Phone,
MP3/MP4,
Boat Device,
Rechargeable Bus and so on

Specification:

Oupt power range

12.6V1A 8.4V2A 8.4V1.5A (also have those models for selection)

Input Rated Voltage	100Vac~240Vac
Input Frequency Range	50Hz~60Hz
Input Current	less than 0.5A
Input Inrush Current	less than 50A
Efficiency	80%(MIN)at Rated Voltage
DC Output Voltage	12.6V± 5% (option)
DC Output Current	1A (option)
DC Output Power	12.6w (optional)
Leakage Current	less than 5mA
Standby power	less than 0.5w
DC connector	5.52.110mm (optional)
DC cable	1.5m 2464UL 22AWG cable (optional)
Ripple and Noise	less than 120Mv at full road with 20MHz bandwidth
Turn On Delay Time	less than 3S (AC:110V and full load)

Safety protection	output voltage protection (150%-180% rated output current)
	output current protection (150%-180% rated output current)
	short current protection
Operating Temperature	-10°C - +45°C
Storage Temperature	-20°C - +40°C
