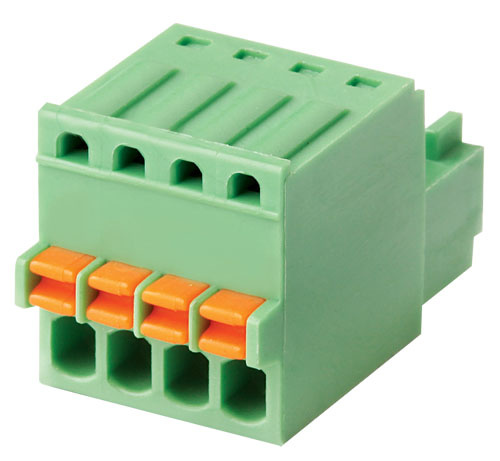

Plug in Terminal Block 3.81mm Pitch

Name: Plug in Terminal Block 3.81mm Pitch
Brand: all-electronics-online.com
SKU: 754294275
Availability: InStock
Rating: 4.6 (143 reviews)

Price:	US $ 0.05/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	WJ15EDGKD-3.5/3.81mm
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pitch:	3.5mm,3.81mm
Color:	Green,Blue,Gery,Black and So on
Application:	PCB
Environmental Protection:	Resistance to Environmental
Connection Mode:	In-Line Connector
Shape:	Rectangle
Type:	Electric Connector
Character:	Withstanding Voltage
Brand:	Wanjie

Product Description

We have passedthe ISO9001:2008 quality management system, the products have been approved by VDE, SGS, CE, CB, CQC, andC US.
An excellent management team,Fast delivery time,High quality.

CIXI WANJIE ELECTRONIC CO., LTD was founded in 1992 and specializes in the production of terminalblocks, including screw, screwless, pluggable, feed through, barrier, din railterminal blocks, electronic housing, and solderless breadboard.

We have adopted advanced production and test equipment, so that we could offer good quality and more competitive products.Equipped with advanced detection equipment, can be directly UL486E, UL1059, EN60998, EN60947, EN61984, GB13140, GB14048 standards, such as testing various types of terminals, for our new product development to provide a reliable basis for the Secretary to improve my products related to the efficiency and accuracy of certification.

For better service to the customers, we can also design, develop and produce according to customer's requirement for OEM/ODM products.

With the advanced administration system, good quality, competitive price and good service, our products are sold far to America, Europe, Middle East, Asia, Africa etc and get good comment from the customers.

Material
Clamp	Phosphor bronze, Ni plated
Shrapnel	Stainless steel
Housing	PA66, UL94V-0

Electrical
Standard	UL IEC
Rated voltage	300V 250V
Rated current	8A 7A
Wire range	28-16AWG
Contact resistance	20mΩ
Insulation resistance	500mΩ /DC500V
Withstanding voltage	AC 2000V/1 min

Mechanical
Temp. Range	-40º C ~ +105º C
Strip length	6-7mm

Cixi Wanjie Electronic Co., Ltd., is founded in 1992 and specializes in making terminal block and solderless breadboard. We have passed the ISO9001: 2000 quality management system and the products have been approved by VDE, UL, CE, SGS, CQC, RoHS and TUV.

With many years development, we have built an excellent management team and have our own R & D center, mould production, plastic injection, hardware stamping and assembling workshop. So we will give you the best offer also we can design, develop and produce the products according to customers' Request.

We have adopted advanced production and test equipment, so that we could offer good quality and more competitive products. For better service to the customers, we can also design, develop and produce according to customer`s requirement for OEM/ODM products.

With the advanced equipment and production line, good quality, competitive price and good service, our products are sold far to America, Europe, Middle East, Africa etc and receive good comments from the customers. So the company shows warm welcome to consult the business with all the customers both at home and abroad.

All the staff of company will strive together for a better tomorrow and show warm welcome to the customers of allover the world.
