Plug-in Terminal Block for Electronic Equipment (WJ15EDGVTM)

Name: Plug-in Terminal Block for Electronic Equipment (WJ15EDGVTM)
Brand: all-electronics-online.com
SKU: 754315425
Availability: InStock
Rating: 5 (44 reviews)

Price:	US $ 0.1-0.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	2000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	WJ15EDGVTM-3.5mm/3.81mm
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pitch:	3.5/3.81mm
Nut:	M2.5 Brass
Pin Header:	Brass, Sn Plated
Housing:	PA66, UL94V-0
Application:	PCB
Environmental Protection:	Resistance to Environmental
Connection Mode:	In-Line Connector
Shape:	Rectangle
Contact Termination Form:	Screws Fixed
Brand:	Wanjie

Product Description

Free samples can be sent.

Our advantages:
1. Good reputation
2. The quality of the products
3. Competitive price
4. Quality of Service

CIXI WANJIE ELECTRONIC CO., LTD was founded in 1992 and specializes in the production of terminal blocks.We have passed the ISO9001:2008 quality management system, the products have been approved by VDE, SGS, CE, CB, CQC, and CUS etc.

With many years development, we have built an excellent management team and have our own R&D center, mould production, plastic injection, hardware stamping and automatic assembling workshop. For better service to the customers, we can also design, develop and produce according to customer's requirement for OEM/ODM products .

Product Description

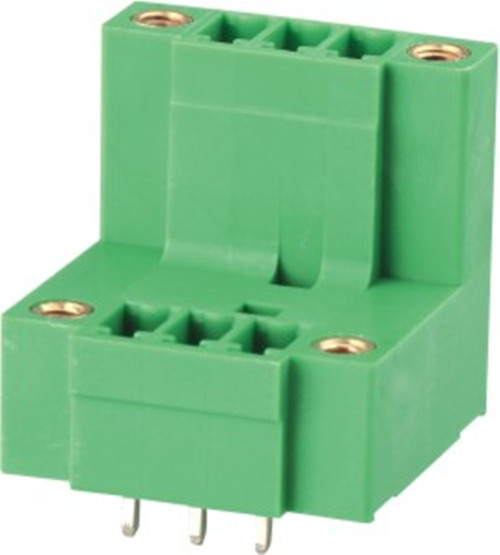

Pluggable terminal block-WJ15EDGVTM

MATERIAL
Nut	M2.5 Brass
Pin header	Brass, Sn plated
Housing	PA66, UL94V-0

ELECTRICAL
Standard	UL	IEC
Rated voltage	300V	250V
Rated current	8A	7A
Contact Resistance	20mΩ
Insulation resistance	500mΩ /DC500V
Withstanding volatge	AC 2000V/1 min

MECHANICAL
Temp.range	-40º C ~ +105º C
MAX Soldering	+250º C, for 5 Sec
