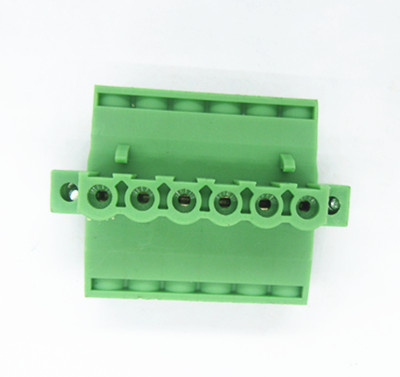

Plug-in Terminal Block Pitch 5.08mm

Name: Plug-in Terminal Block Pitch 5.08mm
Brand: all-electronics-online.com
SKU: 826390595
Availability: InStock
Rating: 5 (76 reviews)

Price:	US $ 0.223/Piece
Min Order:	500/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	AT2500F-5.08-06-A-KHM
Application:	PCB
Environmental Protection:	General
Connection Mode:	Card Lock Connection
Shape:	Rectangle
Contact Termination Form:	Plug in
Production Process:	Plug in
Brand:	Antenk

Product Description

Plug-in Terminal Block Pitch 5.08mm

Key Specifications

Voltage rating: 300V
Current rating: 10A
Wire range: 28-12 AWG 2.5 mm2
Dielectric withstanding voltage: AD2500V/ 1 MIN
Housing: PA66+23%GF, UL94V-0
Terminal: Brass, nikel plated or steel, Zn plated
Wire cage: phosphor copper, nickel plated.
Screw: steel, M2.5 Zn plated.
Torque: 0.4N.m
Operating temperature range: -40 ºC to 105 ºC
