Plug-in Terminal Blocks

Name: Plug-in Terminal Blocks
Brand: all-electronics-online.com
SKU: 829402605
Availability: InStock
Rating: 5 (50 reviews)

Price:	US $ 0.35-1.29/Roll
Min Order:	100/Roll
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	X3
Product Name:	Power Terminal Block Connector
Certificate:	ISO9001/Ce/RoHS
OEM/ODM:	Offer
Sample:	Offer
Conwell:	Factory
Type:	Terminal Blocks
Material:	Plastic+Brass
Application:	Electric Cable
Shape:	U or H
Certification:	ISO9001
Brand:	Conwell

Product Description

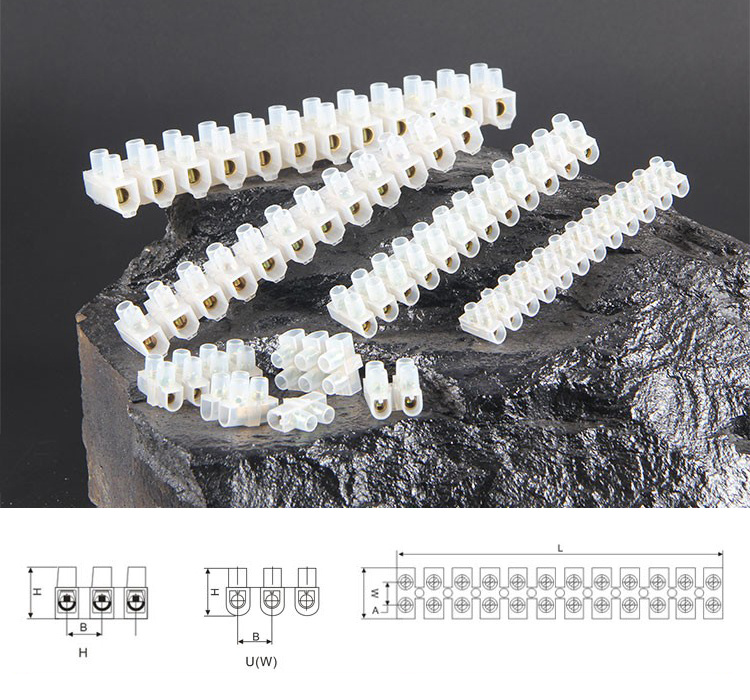

Product Parameter

H Type	L	W	H	A	B	Voltage (V)
ITEM	(mm)					Voltage (V)
H3A 4mm²	91.0	15.5	12.5	5.5	8.0	380
H6A 6mm²	109.0	17.5	14.9	6.5	9.5
H10A 10mm²	129.5	21.0	15.8	6.0	11.0
H15A 12mm²	137.0	22.7	18.2	7.5	12.0
H20A 14mm²	137.0	22.7	19.0	9.5	12.0
H30A 16mm²	162.0	24.8	20.5	10.5	14.0
H60A 25mm²	190.0	30.0	25.5	14.0	16.5
H80A 35mm²	204.0	36.7	29.0	15.5	17.5
H100A 40mm²	230.0	39.0	33.0	16.5	19.5
H150A 45mm²	253.0	44.0	36.5	21.5	21.5

H Type	L	W	H	A	B	Voltage (V)
ITEM	(mm)					Voltage (V)
U3A 4mm²	91.0	15.5	12.5	5.5	8.0	380
U5A 6mm2	107.5	15.5	12.5	5.5	9.0
U10A 10mm2	129.0	19.5	14.8	8.0	11.0
U15A 12mm2	129.0	21.0	17.1	9.5	11.0
U20A 14mm2	134.0	22.0	17.2	9.5	11.5
U30A 16mm2	163.0	23.8	18.2	10.5	14.0
U60A 25mm2	192.0	31.0	24.5	14.0	16.5
U80A 35mm2	204.0	36.0	29.0	15.5	17.5
U100A 40mm2	229.0	38.0	29.7	13.0	20.0
U150A 45mm2	255.0	44.0	33.0	19.0	22.0

Packaging & Shipping

Packaging

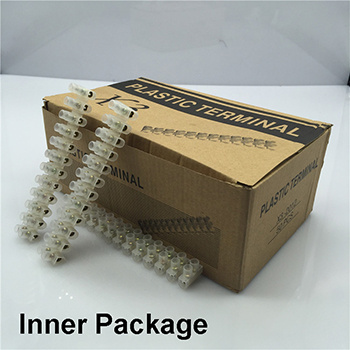

1.Normal Package: inner box +carton

2.Specific packaging can be made to order.

Shipping

You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt of your order.

And also can send by sea or air, kindly send me the port of yours.

Company Information
For the product quality, we offer inspection the goods by visual telephone before send the goods.

FAQ

Q 1.How about your experience?

A.We are only produce cable accessories for 12 years with all test equipments available in my lab and nation production certificate.

Q 2. What's your advandge ?

A. Our product produced and tested by NFC stanard,and have test report of China third party testing organization.

Q 3. What's the payment term?

A. We accept TT, 30% deposit and 70% balance against copy of BL, Western Union, L/C is ok!

Q 4. How's the delivery time ?

A. Usually it will take about two weeks for the order of 100,000pcs for production

Q 5. Tell me the standard of package?

A. For inner box and master carton are made as per international standards,and we can make special design for you if need.

Also if necessary, will be packed in pallet to avoid any damage.

Q 6. Could you offer Form A or C/O ?

A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.

Q 7. Would you accept to use our logo ?

A. If you have good quantity,it absolute no problem to do OEM.

Q 8. How about the transport?

A. If the number of goods is small we usually use TNT,DHL,FEDEX,EMS and some express you offered. If the number of the goods is big usually we use the FWD you offered or we provided. Either by sea or by air is OK.

Zhejiang Keyi Electric Group Co., Ltd., founded in 2004, is located in chengdong industry zone Yueqing, Zhejiang province, China. It is a hi-tech enterprise specialized in designing and producing insulation piercing connector, anchor clamp, suspension clamp, waterproof box and other connecting accessories according to NFC, IEC, EN, UL standards. Besides, it has achieved ISO9001 Quality Management system, ISO14001 environmental management system, OHSAS18001 occupational health and safety management system, CE, RoHS and other certificates, as well as many invention and utility model patents in China.

We are Electric Power Association member and government authorized quality supplier, only focus on ABC accessories scope for 13 years. Our concentration makes us professional and capable enough for all ABC accessories production and invention.

About Testing

Quality management system: Test strictly done by ISO, EN, NFC, UL and other relative standards. It has a lab (city-level technology research and development center) with full testing facilities for physical, chemical, electrical tests.

About Technology:

We have R&D team, technology team, quality team, mould development&production team.

Our products sell to all over the world. The main market is Europe. We have patient sales, good technical support, strict quality control, deep in ABC cable fittings. You will find business is an enjoyment. We will always be here for you!
