| Prod Model: |
Vehicle OBDII GPS306 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
83*54*26mm |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Operating Principle: |
Interferometric Type |
| Port Number: |
Multiplex Multi-purpose Channel |
| Model: |
Set-real Type |
| Chip: |
MEDIATEK |
| Screen Size: |
No |
| Carrier Frequency: |
850/900/1800/1900MHz |
| Brand: |
Coban |
| Certification: |
ISO 9001:2008 |
Product Description
Plug & play obd ii gps gprs gsm Car Tracker GPS306 from Coban Factory for SMS Tracking on Cellphone with a Google Map LinkTop quality, fast delivery in 3 days and one year warranty.
Introduction

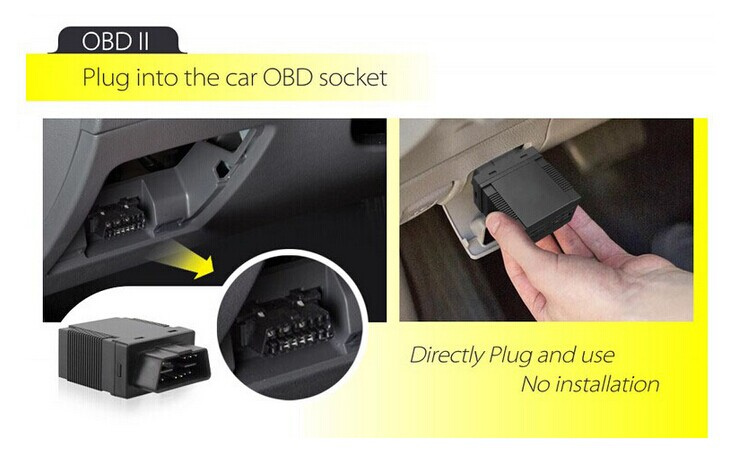

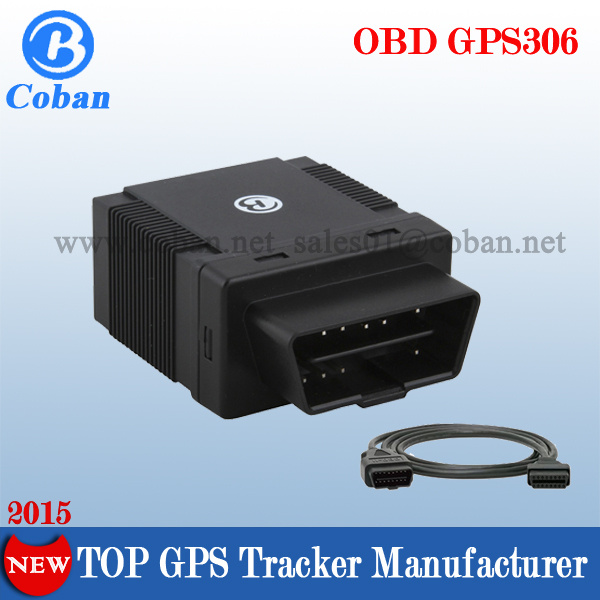

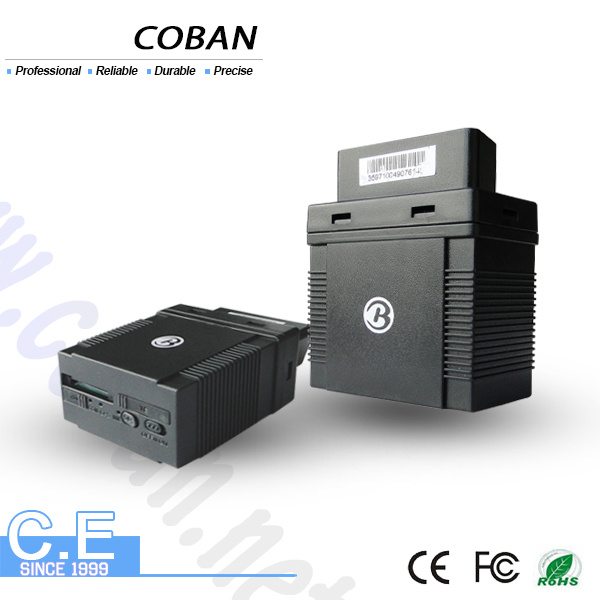

GPS306 is our newly designed plug-and -play OBD tracker. It could read OBD parameters from car ECU and GPS tracking for car location; All data will be transmit to the backend server for remote diagnostic and tracking purpose.
Applying directions:
9-40V cars,vehicles, fleet management
Main Features:
1.Vehicle OBD II tracker (9-40V)
2.Location based service(LBS) + GPS double real time tracking solution Monitor
3.SOS panic button
4.Geofence,movement,overspeed alarms.low battery, ext.power off alarm.
5.Alarms under ARM :Shock/ACC alarms.
6.Request for OBD data by SMS:
Fuel measurement
fuel consumption
mileage
speed
engine status
Diagnostic Trouble Codes,etc
7.Notification of Vehicle fault nd maintenance notification
8.multi power-saving mode :
Sleep by time / shock sensor
deep sleep
awake at specific time
9.Save GPRS traffic mode
10.Built-in memory for 16,000 positions
11.Built-in 200 mA polymer battery
12.SMS tracking on cell phone with google map link
13.Absolute street address by SMS
14.Web server, free PC tracking soft, Mobile phone APP
| DIM | 64.5×50×27mm |
| Weight | 60g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS Sensitivity | -159dBm |
| GPS Accuracy | 5m |
| Voltage | 9 V -40V |
| Backup battery | Chargeable changeable 3.7V 200mAh Polymer Li-Battery |
| Storage Temp | -40°C to +85°C |
| Operation Temp | -20°C to +65°C |
How to tracking ?
The GPS devices support phone tracking and 13 languages website tracking. (English,Spanish,Portuguese,Arabic,Thai language,Italian,German,Chinese,French...)
Five types Tracking way:
A: SMS + Map software;
B: PDA Cell Phone;
C: Real time tracking, and track via your computer(PC Software);
D: simple & useful real time web tracking via our website www.gpstrackerxy.com
E : IOS and Android APP
Web Real Time Tracking Platform www.gpstrackerxy.com (Demo ID:demo ; Password : 8888 ) It is ok to track 10,000pcs units in platform at same time.
Warranty
1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. One year warranty is provided for all models. We will bear maintenance cost during warranty.
Delivery
DHL/Fedex/UPS/TNT/ARA/EMS/By air/By sea and so on are optional, we can send goods by shipping ways you want.
1. Sample and mini order will be delivered within 1-2 working days after the receipt of payment.
2. For order over 500pcs or customized order, lead time will be 3-15 days after the receipt of payment. Please contact our sales to make sure the current inventory.
OEM&ODM Service
1.Customize logo and brand print on the device
2.Customize box
3.Offer firmware modification service
4. Customize design in bulk order
We are at your service within 24 hours.
