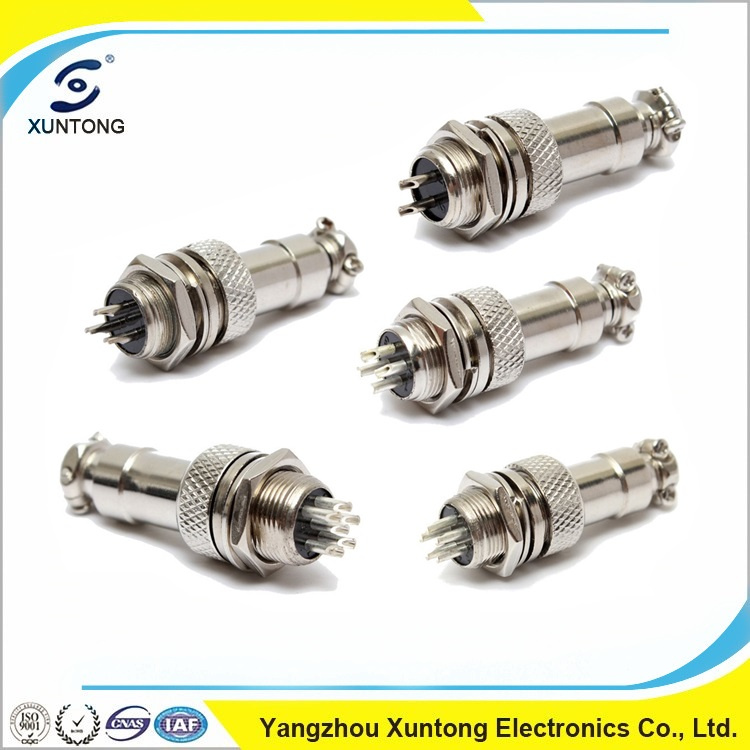

Plug+Socket Aviation Gx12 Micro Jack Waterproof Connector

Name: Plug+Socket Aviation Gx12 Micro Jack Waterproof Connector
Brand: all-electronics-online.com
SKU: 778939565
Availability: InStock
Rating: 5 (43 reviews)

Price:	US $ 0.0001/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	F0387
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Coupling:	Threaded Coupling
Shell Material:	Zinc Alloy with Nikelplate
Insert Material:	Bakelite
Termination:	Solder
No.of Contacts:	2pin,3pin,4pin,5pin,6pin
Rated Current/Voltage:	5A-125V
Operation Limit Voltage(AC.V.RMS):	200
Withstanding Voltage(AC.V.RMS) L Minute:	1500

Product Description

A,GX12 Product specifications

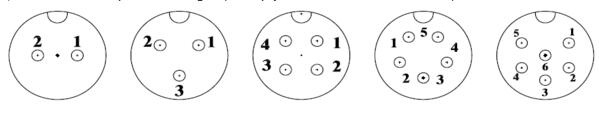

1,GX12 The hole place arranges(Comply with the needle direction):

2,Mateial and specifications:

Coupling:Threaded coupling

Shell material:Zinc alloy with nikelplate

Insert material:bakelite

Contact material:copper(silverplated/gold)

Termination:Solder

Mating cycle:500

Cable diameter:-20ºC ~ +85ºC

Cable diameter:≤ φ5.0mm

3,Technology parameter

NO.of contacts:2pin,3pin,4pin,5pin,6pin

Rated current/voltage:5A-125V

Operation limit voltage(AC.V.rms):200

Withstanding voltage(AC.V.rms) l minute:1500

Insulation resistance(MΩ MIN.) at DC 500V:1500

Contact resistance (MΩ MAX.) AT DC 1A:5

Solder cup mouth aperture φ(mm):0.8

Solder inter diameter φ(mm):1.2

B,GX16 Product specifications

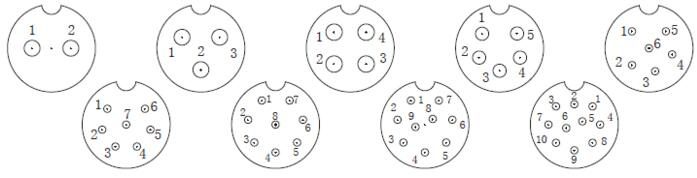

1,GX16 The hole place arranges(Comply with the needle direction):

2,Mateial and specifications:

Coupling:Threaded coupling

Shell material:Zinc alloy with nikelplate

Insert material:bakelite

Contact material:copper(silverplated/gold)

Termination:Solder

Mating cycle:500

Cable diameter:-20ºC ~ +85ºC

Cable diameter:φ7.5mm ~ ≤ φ8.5mm

3,Technology parameter

NO.of contacts:2pin,3pin,4pin,5pin,6pin,7pin,8pin,9pin,10pin

Rated current/voltage:5A-7A-125V

Operation limit voltage(AC.V.rms):200

Withstanding voltage(AC.V.rms) l minute:1500

Insulation resistance(MΩ MIN.) at DC 500V:1500

Contact resistance (MΩ MAX.) AT DC 1A:5

Solder cup mouth aperture φ(mm):0.9-1.6

Solder inter diameter φ(mm):1.15-2.45

C,GX16MF Product specifications

1,GX16MF The hole place arranges(Comply with the needle direction):

2,Mateial and specifications:

Coupling:Threaded coupling

Shell material:Zinc alloy with nikelplate

Insert material:bakelite

Contact material:copper(silverplated/gold)

Termination:Solder

Mating cycle:500

Cable diameter:-20ºC ~ +85ºC

Cable diameter:φ7.5mm ~ ≤ φ8.5mm

3,Technology parameter

NO.of contacts:2pin,3pin,4pin,5pin,6pin,7pin,8pin

Rated current/voltage:5A-10A-125V

Operation limit voltage(AC.V.rms):200-250

Withstanding voltage(AC.V.rms) l minute:1500

Insulation resistance(MΩ MIN.) at DC 500V:1500

Contact resistance (MΩ MAX.) AT DC 1A:3-5

Solder cup mouth aperture φ(mm):0.8-1.2

Solder inter diameter φ(mm):1.2-1.6
