Pluggable Connector for Emergency Light (PS2A-W3FO)

Name: Pluggable Connector for Emergency Light (PS2A-W3FO)
Brand: all-electronics-online.com
SKU: 807528685
Availability: InStock
Rating: 4.6 (22 reviews)

Price:	Negotiable/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	PS2A-W3FO
Name:	Pluggable Connector for Emergency Light (PS2a-W3fo
Rated Voltage:	250V
Rated Current:	16
Connecting Capacity:	0.5-2.5"R"
Environment Temperature:	T110
Approvals:	Ce, VDE, CQC, UL
Housing:	Polyamide66(V2)
Clamping Unit:	Brass
Screw:	Steel, Zinc Plated (M2.95X8.7)
Color:	Black/White
Application:	Power
Gender:	Set

Product Description

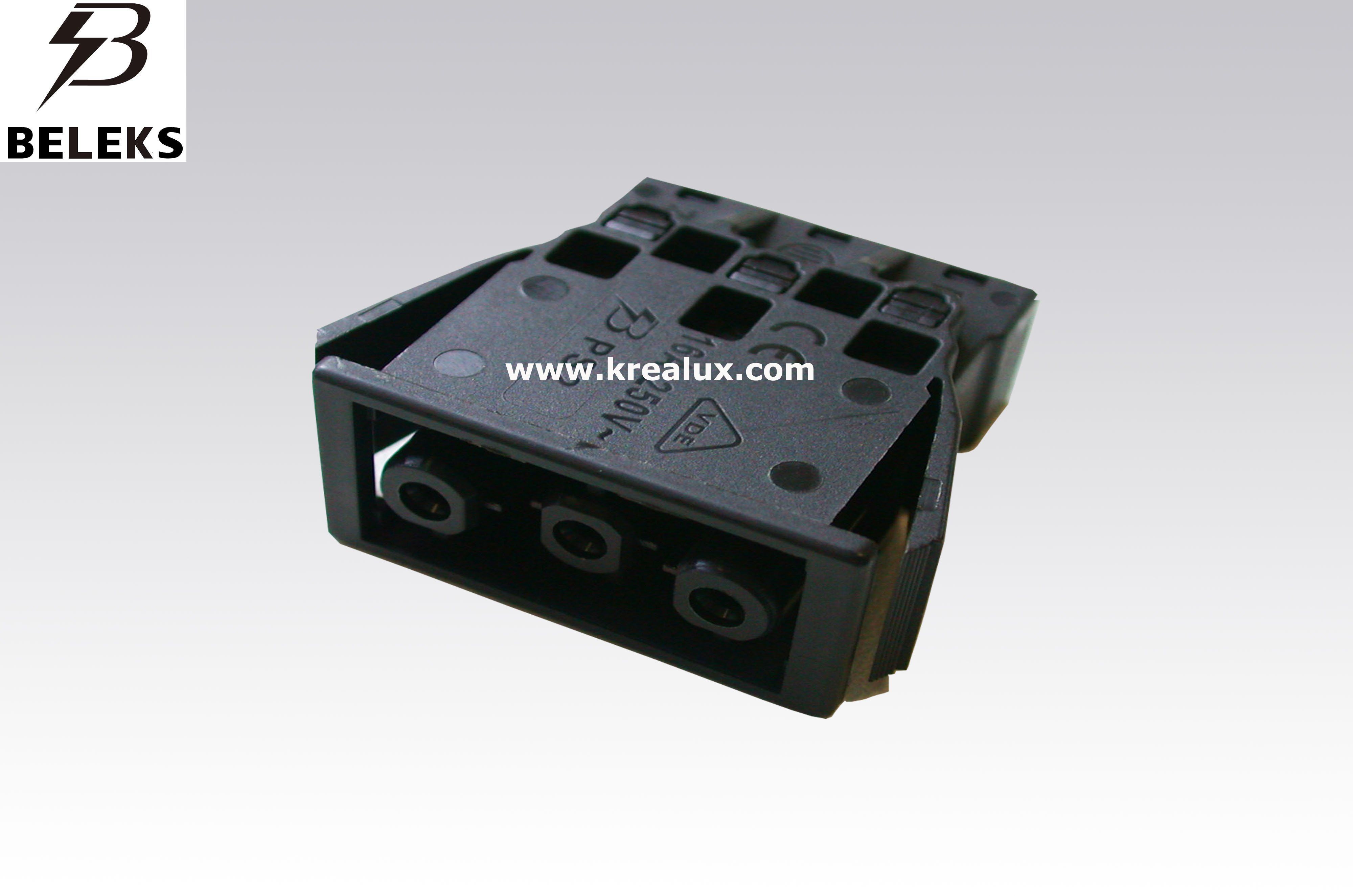

Pluggable Connector for Emergency Light (PS2A-W3FO)
Flexible combination for various wiring demands

Model no.	PS2A-W3FO
Technical data
Rated Voltage (V)	VED	250	UL	600
Rated Current (A)		16		16
Connecting capacity
Input (mm2)	0.5-2.5"r"/2.5"r"
Output (mm2)	0.75-4"r"/0.75-2.5"r"
Approval	CE/VED/CQC/UL
Material
Housing			PA66(V2)
Clamping unit	brass	Coating	tin-plated
Fastner screw	Zinc-plated stainless steel (M3x4.7 no head screw)
Cover Screw	Zinc-plated stainless steel (Dia 2.95x8.7)
Environment Temperatuer	PA66(V2): T110
Color	White, Black

Krealux Electrical Appliances Co., Ltd. is a professional manufacturer specialized in research, production and selling of electrical parts. Our experienced team dedicates to development and manufacturing of terminal blocks, wire connectors, cord line switches and fuse holders, etc. The General Manager is invited to act as editorial board member for domestic standards of terminal blocks/wire connectors.

Krealux products are approved and certified as per safety standards of core countries/organizations of world economy. The company is also ISO9001: 2008 approved by UKAS. Our tailor-made fully automated and high-efficient production facilities ensure production capacity and stable quality of Krealux products. Customers are always satisfied with leading technologies, competitive price, reliable quality, on time delivery, prompt-and-attentive services provided by us.

Krealux brand, BELEKS, reaches top level of the industry with years' effort. Our professional and experienced team innovates persistently and has taken out more than 100 patents in China and abroad.

ODM and OEM projects are welcomed. Or any customization solution request, please feel free to contact us.
