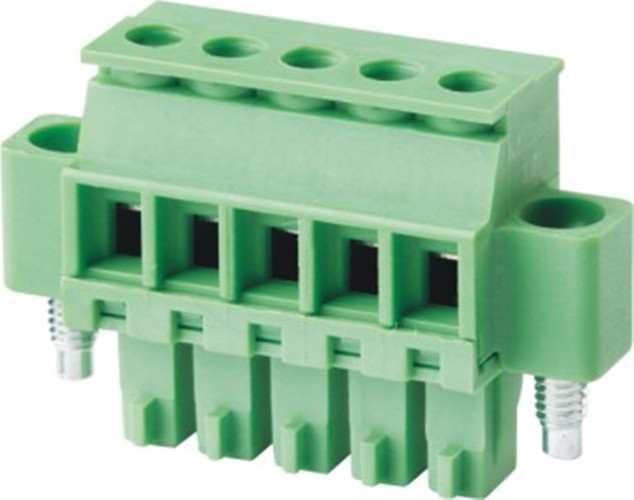

Pluggable Terminal Block Connector with Nut (WJ15EDGKAM)

Name: Pluggable Terminal Block Connector with Nut (WJ15EDGKAM)
Brand: all-electronics-online.com
SKU: 754294995
Availability: InStock
Rating: 4.5 (38 reviews)

Price:	US $ 0.1-0.2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	2000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	WJ15EDGKAM-3.5mm/3.81mm
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pitch:	3.5mm/3.81mm
Cage:	Brass, Ni Plated
Housing:	PA66, UL94V-0
Screws:	M2.0 Steel Zn Plated
Application:	PCB
Environmental Protection:	Resistance to Environmental
Connection Mode:	In-Line Connector
Shape:	Rectangle
Contact Termination Form:	Screws Fixed
Brand:	Wanjie

Product Description

CIXI WANJIE ELECTRONIC CO., LTD was founded in 1992 and specializes in the production of terminal blocks.

Our advantages:
1. High quality
2. Best price
3. Better service
4. Fast delivery
5. Prompt feedback
6. Free samples

The company have passed the ISO9001:2008, ISO14001, OHSAS18001 quality management system, and the products have been approved by VDE, SGS, CE, CB, CQC, and CUS etc. With many years development, we have built an excellent management team and have our own R&D center, mould production, plastic injection, hardware stamping and automatic assembling workshop.

For better service to the customers, we can also design, develop and produce according to customer's requirement for OEM/ODM products .Of course, quality must come first under any circumstances.

Hope to cooperate with you.

Product Description-WJ15EDGKAM

Material
Screws	M2.0 Steel Zn plated
Clamp	Phosphor bronze, Ni plated
Cage	Brass, Ni plated
Housing	PA66, UL94V-0

Electrical
Rated voltage	300V
Rated current	8A
Contact resistance	20mΩ
Insulation resistance	500mΩ /DC500V
Withstanding voltage	AC 2000V/1 min
Wire range	28-16AWG 1.5mm²

Mechanical
Temp. Range	-40º C ~ +105º C
MAX Soldering	+250º C 5 Sec.
Torque	2.04/kgf-cm/0.2Nm/1.77Lbin
Strip length	6-7mm

If you can't find the exact product you need in the pictures, please don't go away.

Just contact me freely or send your sample and drawing to us.

We will reply you as soon as possible.
