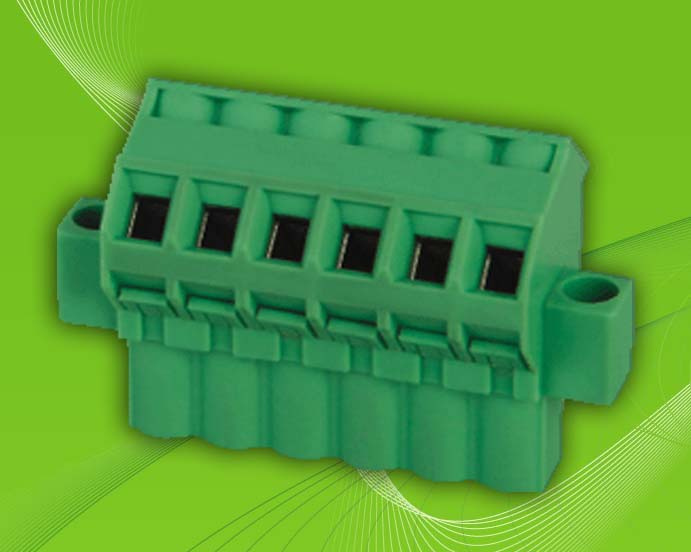

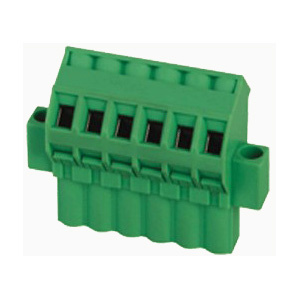

Pluggable Terminal Block

Name: Pluggable Terminal Block
Brand: all-electronics-online.com
SKU: 698038705
Availability: InStock
Rating: 4.4 (77 reviews)

Price:	US $ 0.4/Piece
Trade Terms:	FOB
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	KF2EDGKLM-5.0/5.08
Pitch:	5.0mm,5.08mm
Poles:	2p-24p
Color:	Green
Rated Voltage:	300V
Rated Current:	10A
Wire Range:	28-16AWG
MOQ:	500
Delivery Time:	7-10days Usually
Carton Size:	432736cm
Application:	Communication
Environmental Protection:	Resistance to Environmental
Connection Mode:	In-Line Connector
Shape:	Rectangle
Contact Termination Form:	Screws Fixed
Brand:	Kefa

Product Description

KF2EDGKLM-5.0/5.08

Material

Pitch: 5.0mm/5.08mm
Poles: 2P-24P
Screw: M2.5, Zinc plated steel
Contact: Ni-plated phosphor bronze
Wire cage: Ni-plated brass
Housing: PA66. UL94V-0

Electrical

Rated voltage: 300V
Rated current: 10A
Withstanding voltage: AC2500V/1Min
Wire range: 28-12AWG

Mechanical

Temperature range: -40deg to +105deg
Max soldering: +250deg for 5 sec.
Torque: 0.4Nm(3.5 lb. In)
Strip length: 7mm

7.About us
Cixi Kefa Electronics Co., Ltd is a manufacturer Founded in 1990 which is a new products development, mass-producing and

branding sales' electronic components company, specializing in Terminal block, connectors and precision moulds.

Kefa covers an area of 10000sqms with a building area of 1500sqms, having more than 500 employees, including research and

development staff 80.Kefa have established a series of strong departments, like R&D center, Mould workshop, Auto-tapping

and Auto assembly. Our R&D center is equipped with advanced CIMS system, Mould workshop equipped with hundreds of high

precision devices, like Mitsubishi, etc. to maintain and enhance the workmanship of precise injection, punching, die

casting, and cutting. Meanwhile to upgrade the competitiveness in keeping the quality, cost reduction from Computerize

working and auto production artwork.

We owned professional laboratory acknowledged by VDE, UL. Our factory have been granted ISO9001, ISO14001 management

system certification and we have developed more than 400 types and 5000 specifications of products, our products have been

approved by CE,TUV,ROHS,CQC,CB,UL and VDE. We well cooperating with more than 1000 clients in the world, some are the top

of world 500 enterprises.

The company pays more attention on the innovation management, and the tenet of the company lies in creating a harmonious

situation with the related people and things. Self-discipline and social commitment would embrace everything.

Cixi Kefa Electronics Co., Ltd is a manufacturer Founded in 1990 which is a new products development, mass-producing and branding sales' electronic components company, specializing in Terminal block, connectors and precision moulds.

Kefa covers an area of 10000sqms with a building area of 1500sqms, having more than 500 employees, including research and development staff 80.Kefa have established a series of strong departments, like R&D center, Mould workshop, Auto-tapping and Auto assembly.Our R&D center is equipped with advanced CIMS system, Mould workshop equipped with hundreds of high precision devices, like Mitsubishi, etc.To maintain and enhance the workmanship of precise injection, punching, die casting, and cutting.Meanwhile to upgrade the competitiveness in keeping the quality, cost reduction from Computerize working and auto production artwork.

We owned professional laboratory acknowledged by VDE, UL.Our factory have been granted ISO9001, ISO14001 management system certification and we have developed more than 400 types and 5000 specifications of products, our products have been approved by CE, TUV, RoHS, CQC, CB, UL and VDE.We well cooperating with more than 1000 clients in the world, some are the top of world 500 enterprises.

The company pays more attention on the innovation management, and the tenet of the company lies in creating a harmonious situation with the related people and things.Self-discipline and social commitment would embrace everything.
