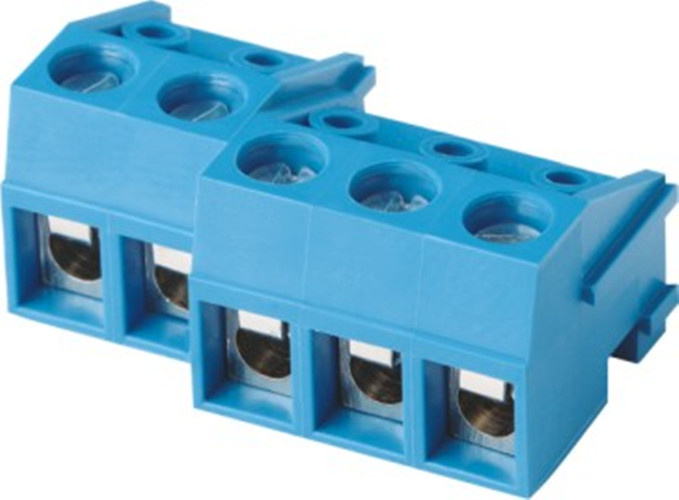

Pluggable with Pin Strips PC Terminal Blocks (WJ332K)

Name: Pluggable with Pin Strips PC Terminal Blocks (WJ332K)
Brand: all-electronics-online.com
SKU: 709830575
Availability: InStock
Rating: 4.5 (26 reviews)

Price:	US $ 0.02-0.03/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	2000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	WJ332K-5.0/10.0mm
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pitch:	5.0/10.0mm
Shrapnel:	Phosphor Bronze, Ni Plated
Strip Length:	4.5-5mm
Withstanding Voltage:	AC 2000V/1 Min
Application:	PCB
Environmental Protection:	Resistance to Environmental
Connection Mode:	In-Line Connector
Shape:	Rectangle
Contact Termination Form:	Screws Fixed
Brand:	Wanjie

Product Description

Our advantages:
1. Good reputation
2. The quality of the products
3. Competitive price
4. Quality of Service
5. Free samples
6. Quick feedback

CIXI WANJIE ELECTRONIC CO., LTD was founded in 1992 and specializes in the production of terminal blocks. We have own R&D center, and our products have passed UL, VDE, TUV, RoHS, CQC, CB, CE certification.

For better service to the customers, we can also design, develop and produce according to customer's requirement for OEM/ODM products .

Hope to cooperate with you!
www.china-wj.com

WJ332K

Material
Screws	M2.5 Steel Zn plated
Shrapnel	Phosphor bronze, Ni plated
Pin header	Brass, Sn plated
Housing	PA66, UL94V-0

Electrical
Rated voltage	300V
Rated current	10A
Wire range	28-16AWG 2.5mm²
Contact resistance	20mΩ
Insulation resistance	500mΩ /DC500V
Withstanding voltage	AC 2000V/1 min

Mechanical
Temp. Range	-40º C ~ +105º C
Max soldering	+250º C, for 5 sec.
Torque	4.08kgf-cm/0.4Nm/3.54Lbin
Strip length	4.5-5mm

Features:
1. Space saving low profile design
2. Easy access horizontal wire entry
3. Convenient screw head access on top of terminal block
4. Headers mount easily in pre-drilled or stamped holes
5. Wire guards help prevent damage to conductors

------------------------------------------------------------------------------------------------------------------
If you can't find the exact product you need in the pictures, please don't go away.

Just contact me freely or send your sample and drawing to us.

We will reply you as soon as possible.

Cixi Wanjie Electronic Co., Ltd., is founded in 1992 and specializes in making terminal block and solderless breadboard. We have passed the ISO9001: 2000 quality management system and the products have been approved by VDE, UL, CE, SGS, CQC, RoHS and TUV.

With many years development, we have built an excellent management team and have our own R & D center, mould production, plastic injection, hardware stamping and assembling workshop. So we will give you the best offer also we can design, develop and produce the products according to customers' Request.

We have adopted advanced production and test equipment, so that we could offer good quality and more competitive products. For better service to the customers, we can also design, develop and produce according to customer`s requirement for OEM/ODM products.

With the advanced equipment and production line, good quality, competitive price and good service, our products are sold far to America, Europe, Middle East, Africa etc and receive good comments from the customers. So the company shows warm welcome to consult the business with all the customers both at home and abroad.

All the staff of company will strive together for a better tomorrow and show warm welcome to the customers of allover the world.
