| Prod Model: |
OBD vehicle GPS Tracker GPS306A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Quad Band: |
850/900/1800/1900MHz |
| Function: |
GPS Tracker for Vehicle |
| OBD: |
Accumulative Mileage/Remaining |
| Warranty: |
12 Months |
| Dim: |
64.5*50*27mm |
| Weight: |
60g |
| Coban Manufacturer: |
Yes |
| CE, FCC: |
Yes |
| Tracking Solutions: |
SMS, GPRS Web Platform, Android Ios APP Tracking |
| Special OBD Tracker: |
Having Diagnostic |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Operating Principle: |
GPS Satellite Positioning and Data Transmit by GSM |
| Port Number: |
20 |
| Model: |
OBD GPS306 |
| Screen Size: |
No Screen |
| Chip: |
No |
| Brand: |
Baanool |
| Certification: |
ISO9001 |
Product Description

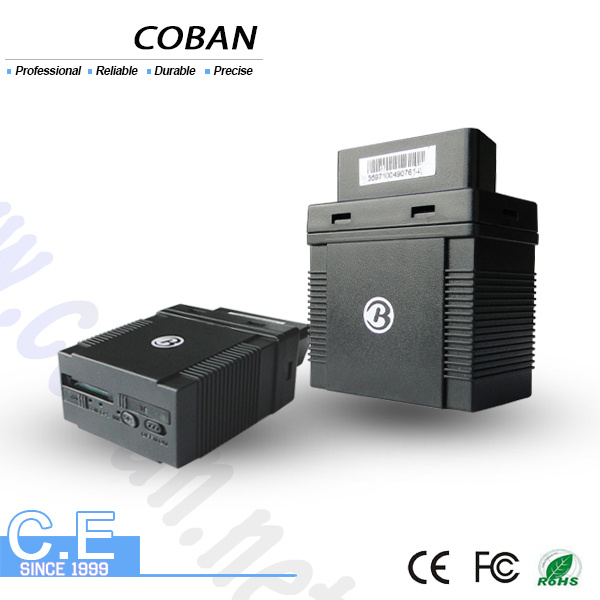

Automotive OBD vehicle Tracker with Diagnostic coban (GPS306A)
Model: GPS306
Mainly used for vehicle management and location tracking services.
Function of GPS traker:
SIM CARD Installation Plug into the car OBD socket GSM/GPS LED Indicator
Initialization Change Password Authorization Configure how OBD data to be sent to Server Center Set mileage Set Fuel tank volume
Notification of Vehicle fault Vehicle maintenance notification Single Locating
Track with limited times upon time interval
Track with unlimited times upon time interval
Smart track upon time and distance interval
Automatic update positions of vehicle turns
GPS drift suppression Location based service (LBS) / Cell-ID locating Exact street address by SMS Voice Monitor Data logging Data Load Alarm Functions
Low Battery Alarm External Power off alarm GPS blind Spot alert SOS Geo-fence
Multi-area management Movement alarm
Over speed alarm
Alarms under Arm State
Shock sensor alarm
ACC alarm
Request for OBD data by SMS--Send Obdmsg+password to GPS device, it will return below vehicle info. As following
Accumulative mileage
Remaining fuel
Average Fuel
Driving time
Speed
Engine speed
Battery voltage
Diagnostic trouble code
Applying directions:
12-24V cars, vehicles, trucks, fleet management
Specification
Content | Specification |
| DIM | 64.5×50×27mm |
| Weight | 60g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS Sensitivity | -165dBm |
| GPS Accuracy | 5m |
| GPS Start Time | Cold status 30s
Warm status 11s
Hot status 1s |
| Backup Battery | Chargeable changeable 3.7V 200mAh Polymer Li-Battery |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +70°C |
| Humidity | 5%--95% non-condensing |
