| Prod Model: |
LP-20-C02PE-01-001 LP-20-J02SX-01-001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cable Specification: |
14-12AWG |
| Diameter Range: |
8mm-12mm |
| Contact Diameter*Number: |
2.7*2 |
| Operating Voltage: |
500V |
| Protection Level: |
IP65/IP67 |
| Durability: |
500 Times |
| Connecting Mode: |
Plug/Unplug |
| Assembly Wire: |
Solder |
| Copper Needles: |
Copper Alloy(Gold-Plated 4u) |
| Flammability Rating: |
UL94-V0 |
Product Description

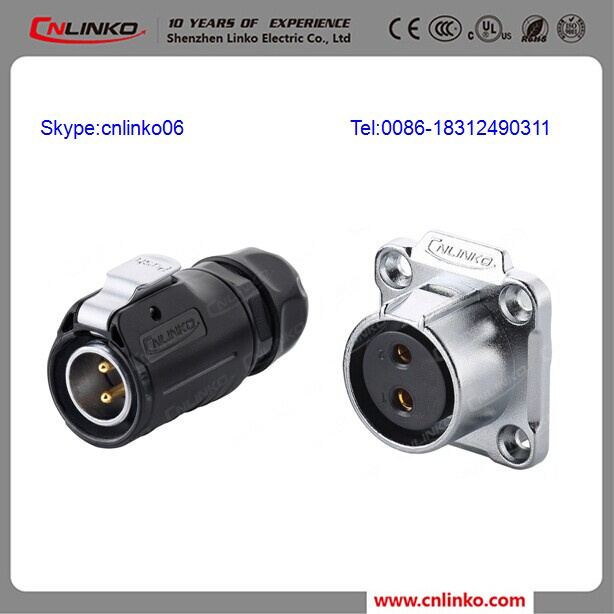

Plugs connector manufacturers provide 2 pin socket and plug 2*7 industrial connector
LP-20 Series connector is widely used in variety of challenging environments due to its high-precision,high-quality automatic insertion ,self-locking devices and waterproof, such as :LED screen industry, audio-visual equipment,medical equipment,industrial control ,test and measurement equipment,AV systems,broadcast television and communications industry and other fields.
1.Multi-pins(2-12 PINS) for varies industrial demands
2.Zinc alloy material against high frequency noise and electromagnetic interference
gold-plated contact, high performance of corrosion resistance and electrical
conductivity effectively deal with temperature rise.
3.PBT shell performance stable,compression, anti-explosion and anti-deformation
4.Unique LINKO clamp , 4 holes for installation ensure stable
5.Rated current: 20A rms
6.Protection level:IP67/IP68
Specifications:
Connecting mode | Pull&Push |
| Protection level | IP65/67 |
| Cable specification | 2.5mm ² ~ 4mm ² /14~12AWG |
| Diameter range | Φ8mm ~Φ12mm |
| Contact diameter ×Qty | Φ2.7x2 |
| Current rating(A) | 20A |
| Operating voltage(AC.V.rms) | 500V |
| Withstand voltage(AC.V)1min | 2500V |
| Insulation resistance | >500MΩ |
| Durability | ≥500 mating&unmating cycles |
| Temperature rating | -40°C~80°C |
| Prevent the combustion level | UL94-V0 |
| Temperature rise | 12A per contact at 30°C, 15A per contact at 40°C, 20A per contact at 50°C |
| Color | Red |
| Protective housing | PBT Material |
| Install method | 1/4 Quick bayonet |
| Material | |
| Shell&Insulated parts | High performance engineering plastics |
| Hardware metal | Zinc alloy(pearl hard chromium) |
| Assembly wire | Solder |
| Copper needles | Copper alloy(gold-plated) |
| Waterproof | Silica gel
|
Packaging & Shipping
Normally, our price is based on our box packing.Customized packing is welcome , MOQ of printing customized box is 1000 pcs/modelDelivery Detail: 1-10 working days after received deposit .You may choose our shipping partner or your own partner .100% T/T in advance is required after confirming the order.
Our Company Information:

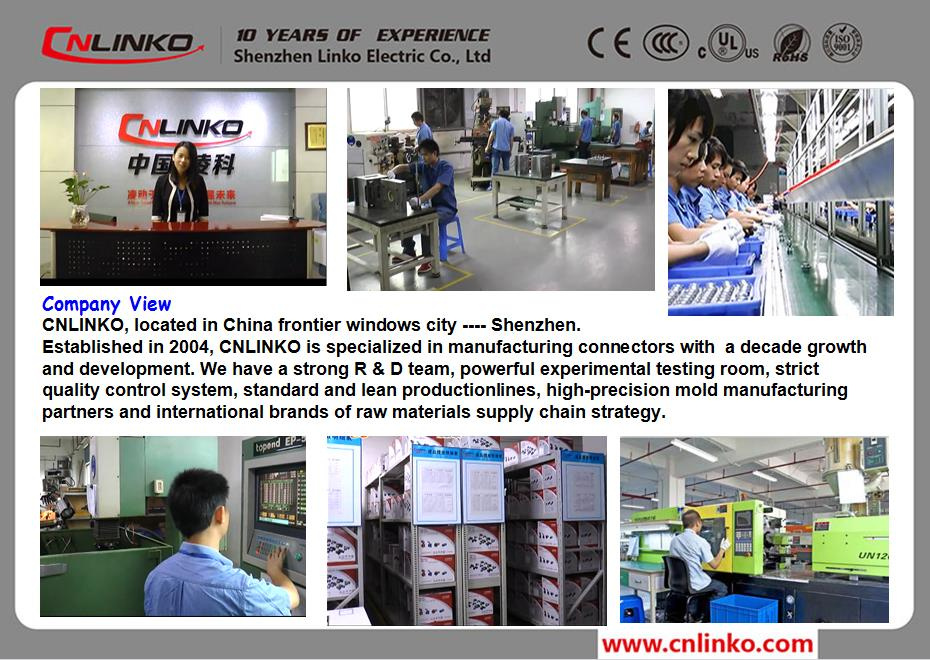

CNLINKO, located in China frontier windows city ---- Shenzhen.
Established in 2004, CNLINKO is professional in manufacturing industrial connectors with More than 10 years growth and development. We have a strong R & D team, professional testing lab, high quality control system, standard lean production lines, high-precision mold fabricating team and international brands of raw materials supply chain strategy.
CNLINKO connectors have got the professional certifications of ISO-9001, UL, CUL, CE, CCC, etc., as well as dozens of patents. We always keep our advantage on the international technology.

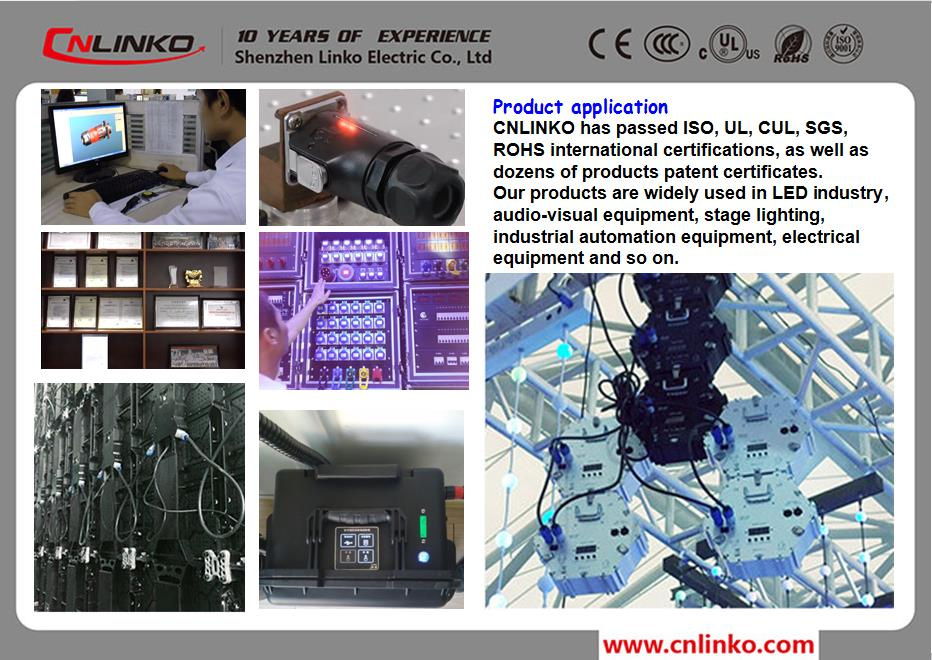

Our products are widely used in varied of challenging environments, such as LED screen display and audio-visual equipment and stage lighting , LED lighting Project ,industrial automation equipment,electrical equipment,heavy industrial equipment and the other industry
Providing high-quality and competitive price products, CNLINKO commits to building global sales channels, strong sales and sales team. We will fully protect the legitimate rights and interests for each customer. We will also focus on the requirements for all the customers, and customer satisfaction is our eternal goal.
Appreciated your supports to CNLINKO ,we have been always providing high quality products and good service to you.
Cnlinko Culture:
"We keep our word" is definitely our commitment and guarantee to customers.
"No sooner said than done" is the reason why we are in a leading position in connector field and in good and close relationship with customers.
Ensured quality and perfect after-sale service,please be confidence in your own judgments.
Our Services:

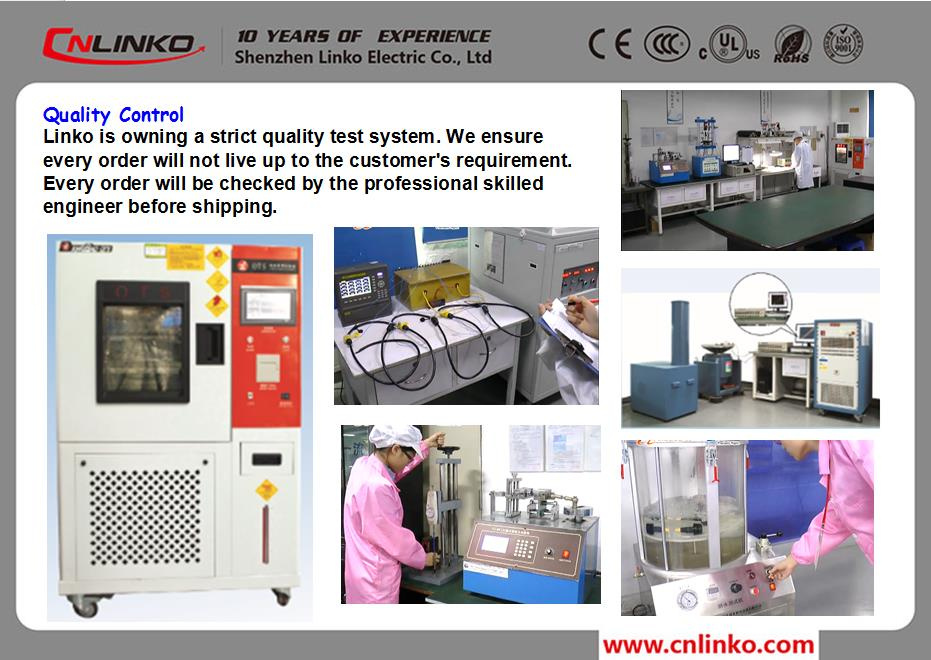

CE,CCC,CUL,UL, ROHS, ISO9001:2008 Standard.Supply OEM service .We have professional quality control system and R&D department to strictly manufacture each product.100,000 pcs per month .National level laboratory , and have flexible production line, to make quick action to urgent customized needs.We will supply the best service to you . Anything ,please feel free to contact us at:
