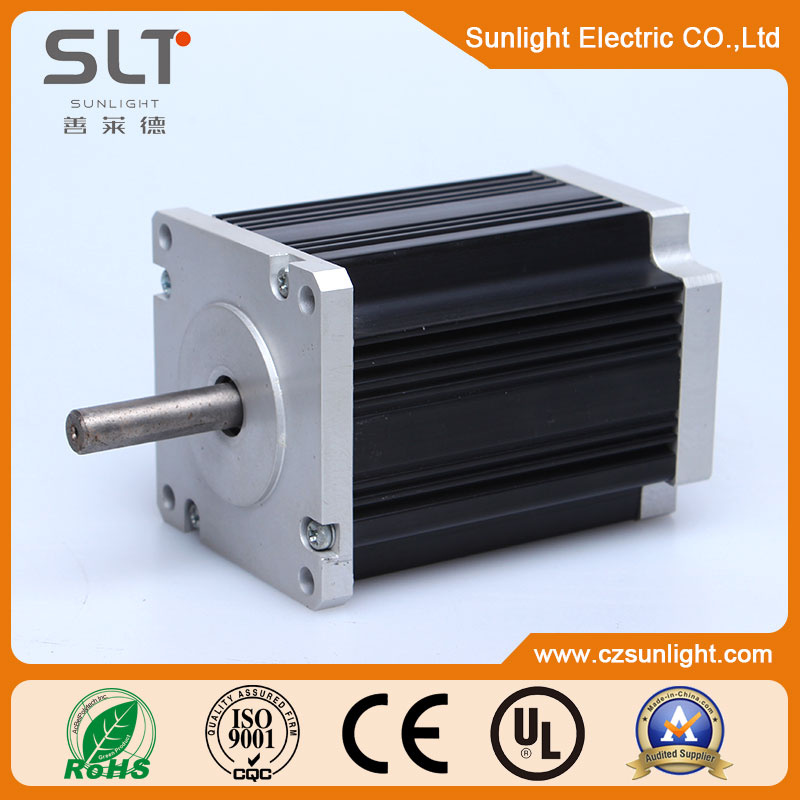

Pm Excited DC Brushless BLDC Motor for Home Appliance

Prod Model:	SLT-60BL01
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	36
No Load Speed:	5200
Rated Torque:	0.11nm
Rated Speed:	4000rpm
Rated Current:	1.9A
Max Torque:	0.3nm
At Torque (Max )Current:	4.5A
Rotor Inertia:	7.5 Kgmm2
Weight:	0.5kg
L1:	61.5mm
Application:	Power Tools
Operating Speed:	Adjust Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brushless
Brand:	Slt

Product Description

1,Voltage:6V-36V
2,No load speed:1000-10000 r/min
3,Rated torque:0.01-0.8Nm
4,Rated speed:3000-8000r/min
5,Rated current:0.5A-20A
6,Environment conditions:-10-40ºC
7,Magnet material:Bonded NdFeB
8,Insulation Class:B
9,OEM and ODM are available for us.

Advantage of Pm Excited DC Brushless BLDC Motor  for home appliance :

1,Low interference
2,low noise ,smooth operation
3,long life,low maintenance cost
4. Used widely


Specifications of Pm Excited DC Brushless BLDC Motor for home appliance



Model			SLT-60BL01	SLT-60BL02
Voltage		V	36
No load speed		rpm	5200	5200
Rated torque		Nm	0.11	0.22
Rated speed		rpm	4000	4000
Rated current		A	1.9	3.3
Torque(max)		Nm	0.3	0.55
At Torque (max )Current		A	4.5	7.4
Rotor inertia		Kgmm²	7.5	11.9
Black-EMFconstant		V/krpm	4.5	4.82
Torque Constant		Nm/A	0.074	0.079
Resistance(20ºC)		ohm	1.65	0.7
Weight			0.5
L1		mm	61.50	81.50
Rotor:La		mm	20	40



Model	No load speed(rpm)	Rated torque(Nm)	Rated speed(rpm)	Rated current(A)	Torque(max)(Nm)	Rotor inertia(Kgmm²)	Black-EMFconstant(V/krpm)	Torque Constant(Nm/A)	Resistance(20ºC)(ohm)	Weight (Kg)	Rotor:La(mm)
SLT42BL01	5000	0.063	4000	1.65	0.189	5.2	3.17	0.045	1.42	0.29	20
SLT42BL02	5000	0.125	4000	3.4	0.375	9.3	3.13	0.044	0.73	0.47	40
SLT42BL03	5000	0.185	4000	4.5	0.5	13.4	3.28	0.73	0.39	0.65	60
SLT60BL01	5200	0.11	4000	1.9	0.3	7.5	4.5	0.074	1.65	0.5	20
SLT60BL02	5200	0.22	4000	3.3	0.55	11.9	4.82	0.079	0.7	0.5	40
SLT60BL03	5200	0.32	4000	4.8	0.8	17.3	4.87	0.08	0.48	1	60
SLT60BL04	5200	0.44	4000	6.6	1.05	21	4.87	0.08	0.35	1	80
SLT62BL01	3900	0.22	3200	4.5	0.66	19	4.3	0.062	0.57	0.9	20
SLT62BL02	3700	0.4	3000	7.1	1.1	37.5	4.6	0.065	0.24	1.3	40
SLT62BL03	3700	0.65	3000	12.7	1.8	55.8	4.53	0.061	0.13	1.8	60

Applications of Pm Excited DC Brushless BLDC Motor for home appliance

A:Car (Fan,View mirror,wiper blade,car seat adjustment and so on.)
B.Home Appliance ( Electric cooker, Electric mop and other products.)
C.Medical equipment and beauty products.
D.Office products (such as printer, scanner......)
E. Other Fields.




About sunlight:

1,The company covers an area of 5000 square meters;
2,Modern workshops have advanced production lines and professional knowledge of assembly.
3,Excellent sales team and after-sales service
4,Professional technical team
5,Broad market:Europe(Germany....)America(America,Canada...)
Asian( Korea, Japan...)




Contact  Sunlight

1,Your client satisfied on the right schedule and quality;
2,You can get good reputation from your market and obtain more orders;
3,Our professional service before and after sale;
4,The reasonable and competitive price;
5,Service is excellent.Any questions from you are welcome and will be replied in 24 hours.
6,Delivery on time

Package and Transport

1,Inner packing(Waterproof plastic bag packing)+Outer packing(Carton packing)
2,Export wooden box packaging for products.
3,Other package as you required
