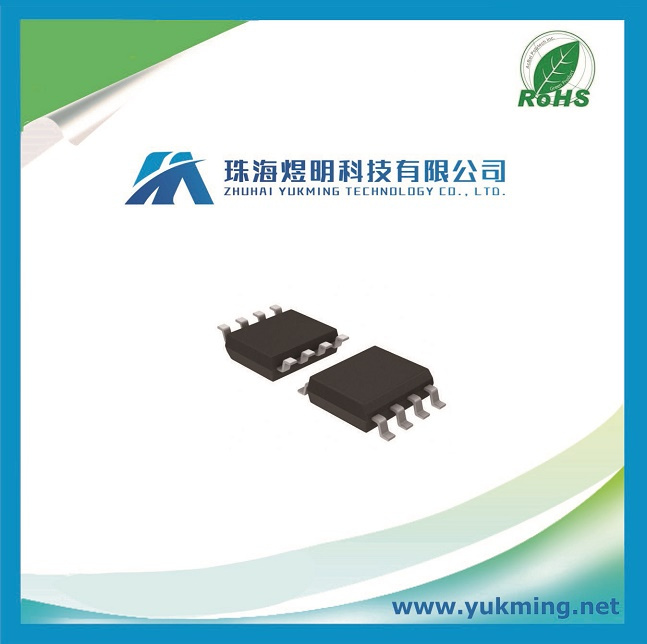

Pmic Voltage References IC Lm336BMX-5.0 Integrated Circuit

Name: Pmic Voltage References IC Lm336BMX-5.0 Integrated Circuit
Brand: all-electronics-online.com
SKU: 800668635
Availability: InStock
Rating: 4.5 (80 reviews)

Price:	US $ 0.2364/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	LM336BMX-5.0
Family:	Pmic Voltage Reference
Voltage Output:	5V
Tolerence:	+/-2%
Channels:	1
Operating Temperature Range(ºC):	0 to 70

Product Description

Description
The LM136-5.0/LM236-5.0/LM336-5.0 integrated circuits are precision 5.0V shunt regulator diodes. These monolithic IC voltage references operate as a low temperature coefficient 5.0V zener with 0.6Ω dynamic impedance. A third terminal on the LM136-5.0 allows the reference voltage and temperature coefficient to be trimmed easily.

The LM136-5.0 series is useful as a precision 5.0V low voltage reference for digital voltmeters, power supplies or op amp circuitry. The 5.0V makes it convenient to obtain a stable reference from low voltage supplies. Further, since the LM136-5.0 operates as a shunt regulator, it can be used as either a positive or negative voltage reference.

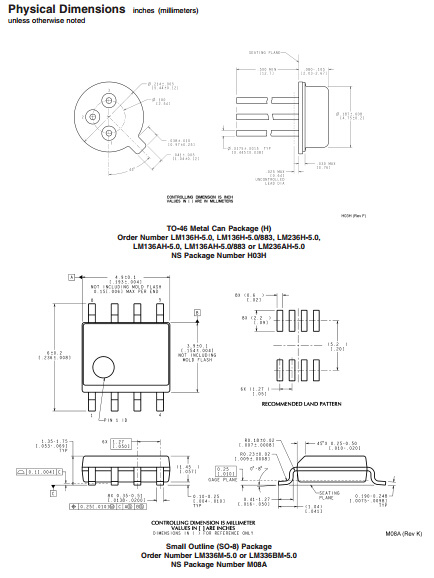

The LM136-5.0 is rated for operation over -55°C to +125°C while the LM236-5.0 is rated over a -25°C to +85°C temperature range. The LM336-5.0 is rated for operation over a 0°C to +70°C temperature range. See the connection diagrams for available packages. For applications requiring 2.5V see LM136-2.5.

Features
Adjustable 4V to 6V
Low temperature coefficient
Wide operating current of 600 µA to 10 mA
0.6Ω dynamic impedance
± 1% initial tolerance available
Guaranteed temperature stability
Easily trimmed for minimum temperature drift
Fast turn-on
Three lead transistor package
