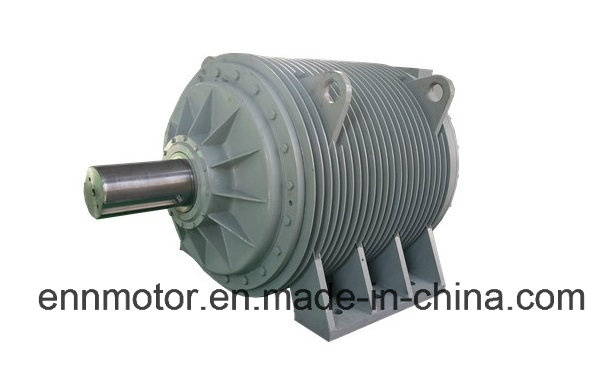

Pmm System for Belt Conveyor Non Explosion-Proof

Name: Pmm System for Belt Conveyor Non Explosion-Proof
Brand: all-electronics-online.com
SKU: 728982632
Availability: InStock
Rating: 4.4 (120 reviews)

Price:	US $ 30000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CPMC355-**L60
Application:	Industrial
Operating Speed:	Adjust Speed
Magnetic Structure:	Permanent Magnet
Structure:	Rotating Pole Type (',Armature Fixed)
Operation Mode:	Inverter Control
Number Of Poles:	32-Pole
Ventilation:	Air-Cooling
Brand:	Enn

Product Description

PMM system is specially designed according to belt conveyor running condition and mainly for the belt conveyor driving system at non explosion-proof areas like the port, power plant and mines etc. It can replace directly the traditional asynchronous motor, reducer and hydraulic coupler which directly drive the equipment with high transmission efficiency, good energy saving and reliable and safe running.

The system adopts natural cooling way with compact volume, small noise, permanent drive way, easy to install, less malfunction and easy operation and control. The system has the voltage degrees of 380V, 660V, 1140V, 3300V, 6KV and 10KV etc. Rotation speed range can be designed and produced as per the customer requirement with range of 0-60, 75 and 90r/min.

Speed adjustment range (0-60r/min) and technical parameter of CPMC355 engine seat

Motor type	Rated torque N.m	Rated voltage V	Rated current A	Power factor cosφ	Torque multiples	Weight ton	Replaceable power kW
CPMC355-06L60	6000	380	66.5	0.9897	1.5	1.05	37
CPMC355-06L60		660	39.4	0.9911
CPMC355-06L60		1140	23.7	0.9921
CPMC355-08L60	8000	380	88.5	0.9897		1.15	50
CPMC355-08M60		660	51.2	0.9908
CPMC355-08H60		1140	30.1	0.9912
CPMC355-10L60	10000	380	110.5	0.9898		1.25	60
CPMC355-10M60		660	65.2	0.9902
CPMC355-10H60		1140	38.4	0.9910
CPMC355-12L60	12000	380	132.7	0.9899		1.35	75
CPMC355-12M60		660	77.5	0.9905
CPMC355-12H60		1140	45.3	0.9912

can be designed and produced according the customer's requirement

ENNENG MOTOR FOCUS ON ENERGY SAVING PERMANENT MAGNETIC MOTOR R&D AND FABRICATION.

QUALITY IS OUR CULTURE.

Qingdao Enneng Motor Co., Ltd. (called "ENNENG") is a HI-TECH enterprise and its core competency is researching and fabrication of permanent magnetic motor(PM motor). The niche market is in China. Our PM motor has been successfully used in Chinese top leading enterprise in the field, such as Shengli Oil field, Chongqing Water Group, etc.

ENNENG is devoted to the research and development of various low speed permanent magnetic motor with high torque, special small permanent magnet servo motor and super-high speed permanent magnetic motor. With advanced production idea, strong technical strength, complete process equipment and advanced test and inspection equipment, our company is one of the leading permanent magnetic motor manufacturers. Our product can be used in port, ship, coal, water conservancy, mine, petro and power industry. We are praised and recognized by the customer for several research and development projects which wins high reputation and long-term cooperation with the customer.

ENNENG is continuously boost independent innovation, and cooperate with many colleges like China University of Mining and Technology, China Ocean University, Shandong University of Science and Technology, Xi 'an university of Science and Technology, China University of Petroleum, Beijing University of Aeronautics and Astronautics etc. We have a team with years of permanent magnetic motor experiences in the industry like mine, port, water conservancy, building materials, petro, chemical and space etc. And they have abundant professional technique and management who is familiar with motor design and production process supplying stable quality and professional service permanent magnetic motor system.

ENNENG headquarter is located in Qingdao, with factory in Dalian. 90% of the fabrication and test equipment are imported from Germany.

FOR ENERGY SAVING, USE ENNENG PM MOTOR.
