| Prod Model: |
CPMC400-**L60 |
| Application: |
Industrial |
| Operating Speed: |
Adjust Speed |
| Magnetic Structure: |
Permanent Magnet |
| Structure: |
Rotating Pole Type (',Armature Fixed) |
| Operation Mode: |
Inverter Control |
| Number Of Poles: |
32-Pole |
| Ventilation: |
Air-Cooling |
| Brand: |
Enn |
Product Description

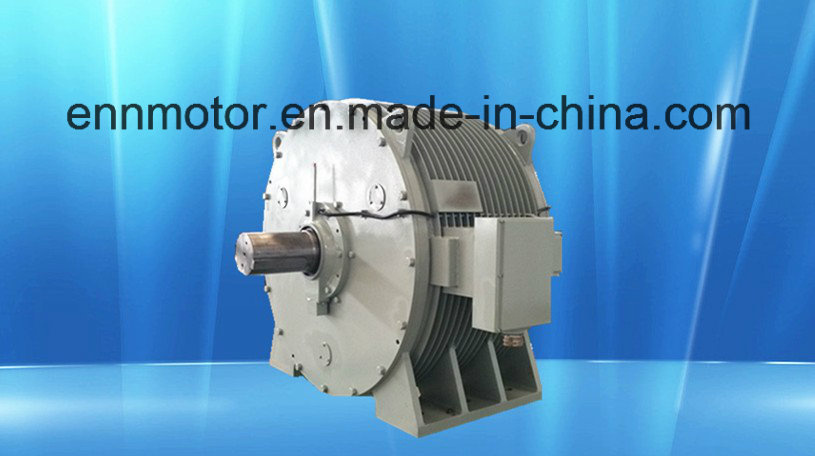

The direct-coupled type and drum type permanent magnet direct-drive system is composed of the special invert control system and permanent magnet motor. Permanent magnet motor with variable frequency control system, output torque to drive load, realize soft-start of the belt conveyor,which does not cause the belt damage; realize multi-motor torque balance of belt conveyor; realize low speed and high torque output characteristics. No gear box, simplify the transmission chain, reduces maintenance cost.
The configuration of the control system is famous brand controller (Siemens, Beckhoff etc.), which reserve switch quantity, analog, optical control interface, support frofilnet, MODBUS, Ethernet protocol. The special control software is built-in to realize "S" curve starting and parking of belt conveyor; The system can solve the multi-drive the balance of power by master-slave multi-machine linkage function.
1.2 System characteristics
1.2.1 high reliability
• Gear less, transmission chain is shortened, the system run more smoothly, more reliable;
• Gear less, Precision loss caused by mechanical wear has been effectively controlled, the system has long service life;
• Variable frequency starting, no impact, effectively solve the harm of dynamic tension wave for belt conveyor;
• Permanent magnetic synchronous motor has good controlling, which can solve the problem of multi-drive power balance problem for a long distance, large capacity belt conveyor;
• Frequency converter with reactor and filter, which does not pollute the power grid and interfere with other equipment;
• less number of system components makes the installation more convenient.
1.2.2 Low Maintenance
• Gear less, reduce the volume,cost and difficulty of system maintenance;
• System can operation continuously, has longer Maintenance cycle, shorter downtime and Higher efficiency.
Motor type | Rated torque N.m | Rated voltage V | Rated current A | Power factor cosφ | Torque multiples | Weight ton | Replaceable power kW |
CPMC400-10L60 | 10000 | 380 | 110.1 | 0.9891 | 1.5 | 1.25 | 75 |
CPMC400-10M60 | 660 | 64.7 | 0.9912 |
CPMC400-10H60 | 1140 | 38.4 | 0.9931 |
CPMC400-15L60 | 15000 | 380 | 164.1 | 0.9901 | 1.45 | 110 |
CPMC400-15M60 | 660 | 95.3 | 0.9895 |
CPMC400-15H60 | 1140 | 55.9 | 0.9890 |
CPMC400-20L60 | 20000 | 380 | 219.3 | 0.9899 | 1.62 | 132 |
CPMC400-20M60 | 660 | 127.3 | 0.9922 |
CPMC400-20H60 | 1140 | 74.4 | 0.9897 |
ENNENG MOTOR FOCUS ON ENERGY SAVING PERMANENT MAGNETIC MOTOR R&D AND FABRICATION.
QUALITY IS OUR CULTURE.
Qingdao Enneng Motor Co., Ltd. (called "ENNENG") is a HI-TECH enterprise and its core competency is researching and fabrication of permanent magnetic motor(PM motor). The niche market is in China. Our PM motor has been successfully used in Chinese top leading enterprise in the field, such as Shengli Oil field, Chongqing Water Group, etc.
ENNENG is devoted to the research and development of various low speed permanent magnetic motor with high torque, special small permanent magnet servo motor and super-high speed permanent magnetic motor. With advanced production idea, strong technical strength, complete process equipment and advanced test and inspection equipment, our company is one of the leading permanent magnetic motor manufacturers. Our product can be used in port, ship, coal, water conservancy, mine, petro and power industry. We are praised and recognized by the customer for several research and development projects which wins high reputation and long-term cooperation with the customer.
ENNENG is continuously boost independent innovation, and cooperate with many colleges like China University of Mining and Technology, China Ocean University, Shandong University of Science and Technology, Xi 'an university of Science and Technology, China University of Petroleum, Beijing University of Aeronautics and Astronautics etc. We have a team with years of permanent magnetic motor experiences in the industry like mine, port, water conservancy, building materials, petro, chemical and space etc. And they have abundant professional technique and management who is familiar with motor design and production process supplying stable quality and professional service permanent magnetic motor system.
ENNENG headquarter is located in Qingdao, with factory in Dalian. 90% of the fabrication and test equipment are imported from Germany.
FOR ENERGY SAVING, USE ENNENG PM MOTOR.
