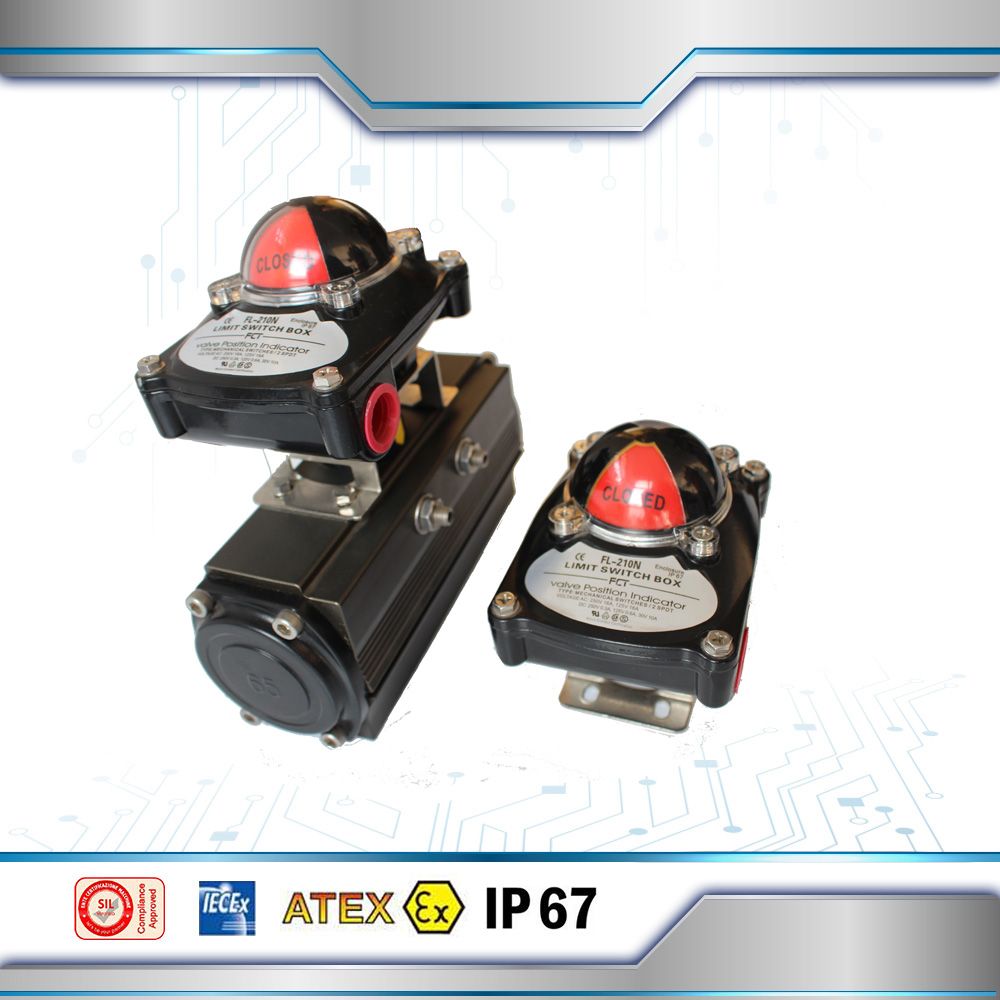

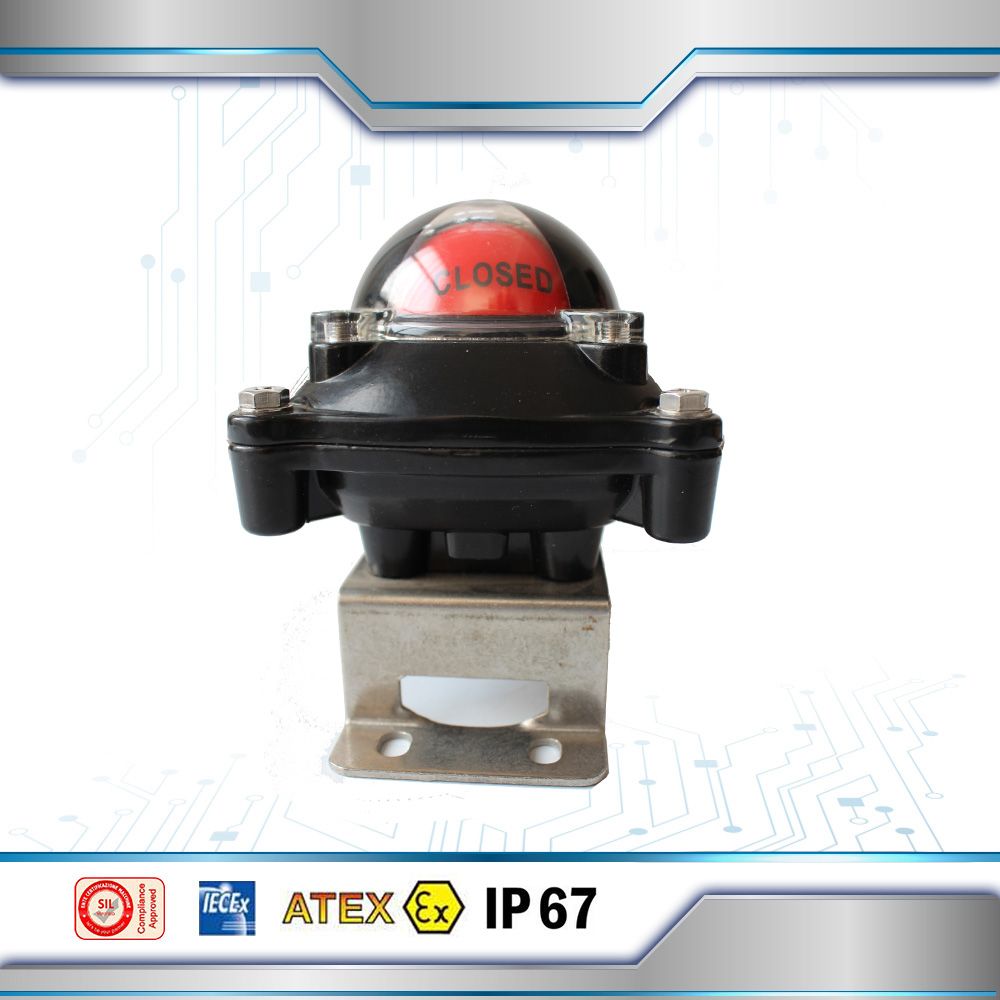

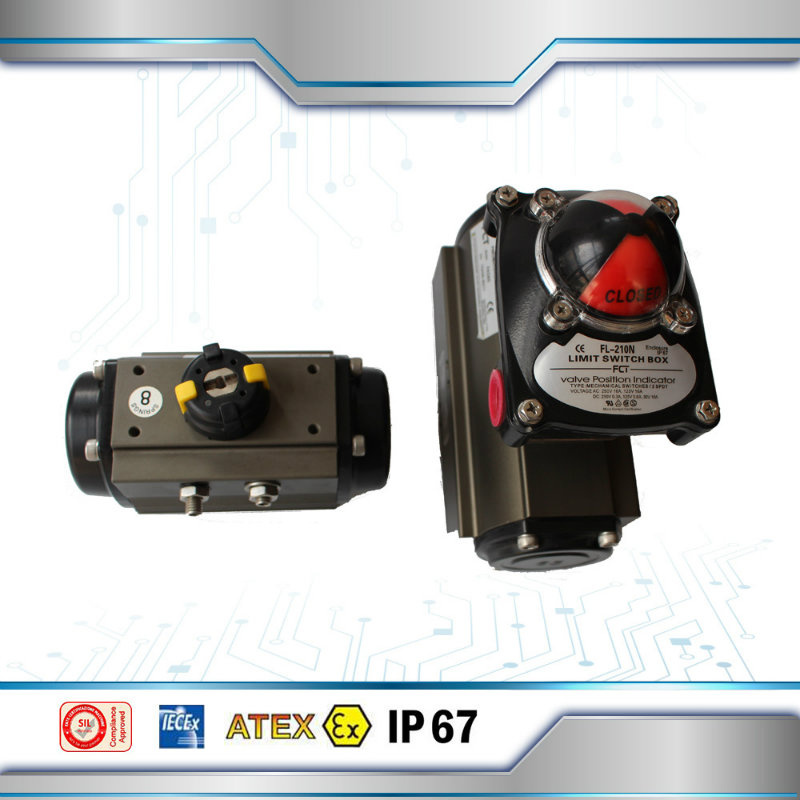

Pneumatic Limit Switch Box

Name: Pneumatic Limit Switch Box
Brand: all-electronics-online.com
SKU: 828015075
Availability: InStock
Rating: 5 (131 reviews)

Price:	US $ 10.5/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	Ares0083
Color:	Black or Red
Cable Entries:	Two NPT 1/2"
Ambient Temperature:	-20 -80 Degree
Terminal Strips:	8 Points
Switch:	Mechanical Switch/Proximity Switch
Enclousure:	IP 67
Position Indicator:	0-90 Degree

Product Description

More Detail Description of Limit Switch Box

Product Introduction:

2N limit switch features:
1. enclosure is aluminium die-casting, the process is sprayed epoxy
2. Shaft, bracket and screws are more than 304 stainless steel
3. Indicators are PC, polyester fiber, antioxidant and strong resistance to the performance of
4. This design is a feature of the next seat and the shaft between the copper sets, play the role of the shaft, you can turn it, is very smooth, so the signal is very smooth transmission
5. The bracket is fixed, integrated, there are many domestic activities of the stent, so there is a drawback when the media into the media will be shocked, a long time, the screws will be loose, affecting the signal transmission, many well-known international brands are used fixed bracket.

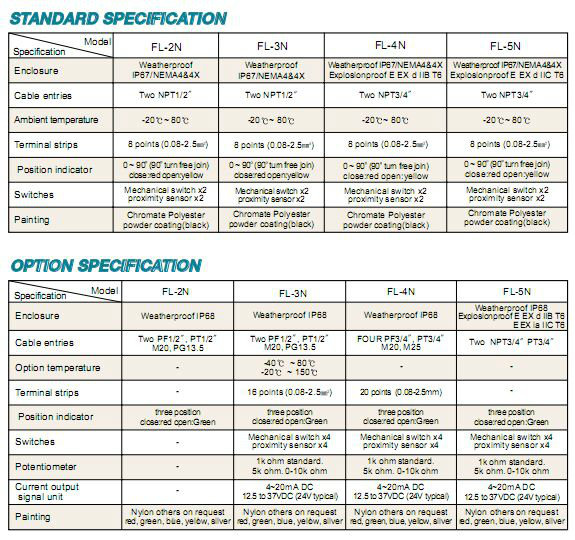

Model	FL-2N,3N,4N ,5N,7N,8N,9N limit switch box
Enclosure	Weatherproof IP67/NEMA4&4
Cable entries	Two NPT1/2" (Standard)
Ambient temperature	-20°C~ 80°C
Terminal strips	8points (0.08-2.5mm2)
Position indictor	0~90° (90° turn free join) Close: red Open: yellow
Switches	Mechanical switch:2 Proximity switch:2
Painting	Chromate Polyester powder coating(black)

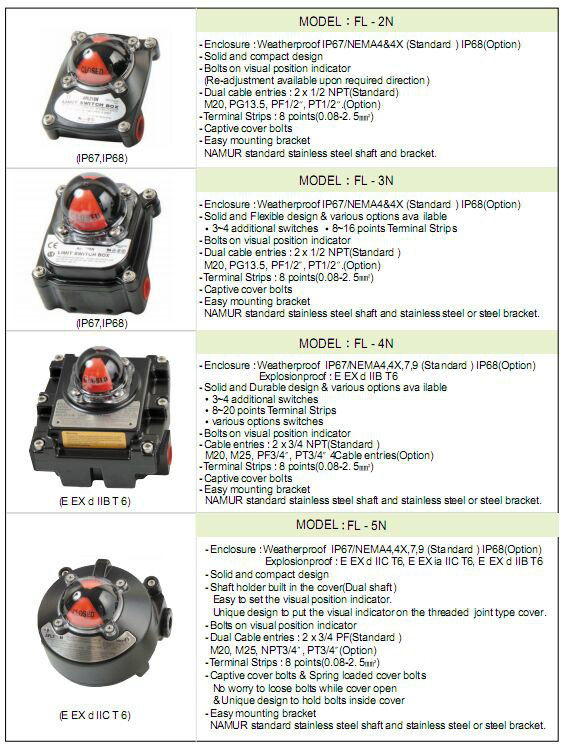

Different Type of Limit Switch Box

The Structure of Limit Switch Box

The Dimension of Limit Switch Box

Packaging & Shipping
Inner packing: OPP bag, then carton box for each product
Outer packing: Export standard carton, Foam outside protecting the goods against damage
Usually we ship your order by sea or by air
We do our best to ship your order within 1 week after receiving your payment
We'll tell you the tracking number once your order has been sent
We accept T/T Bank transfer, L/C, Western Union, MoneyGram, PayPal
